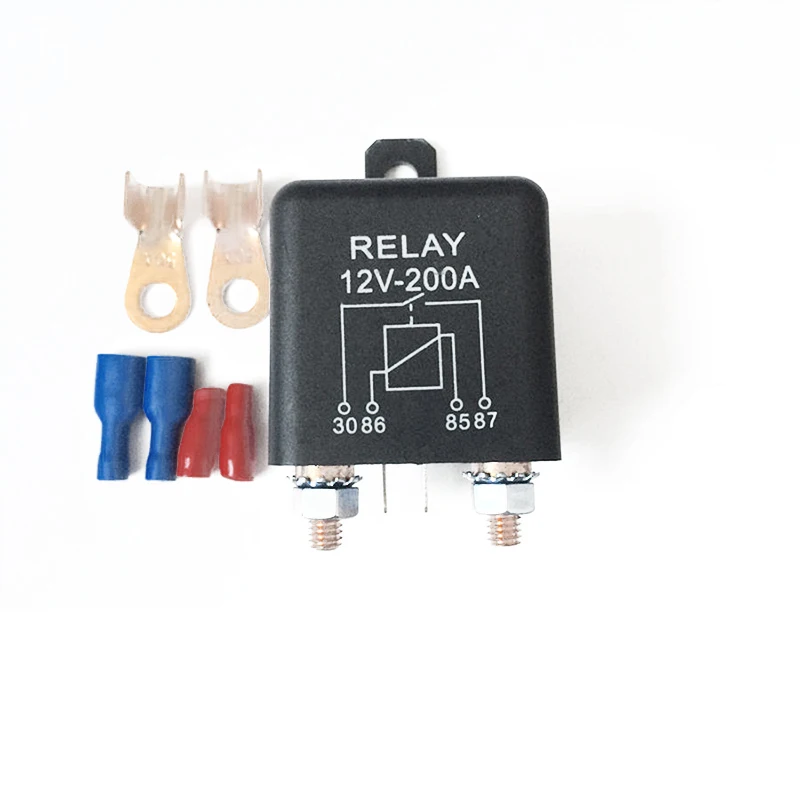

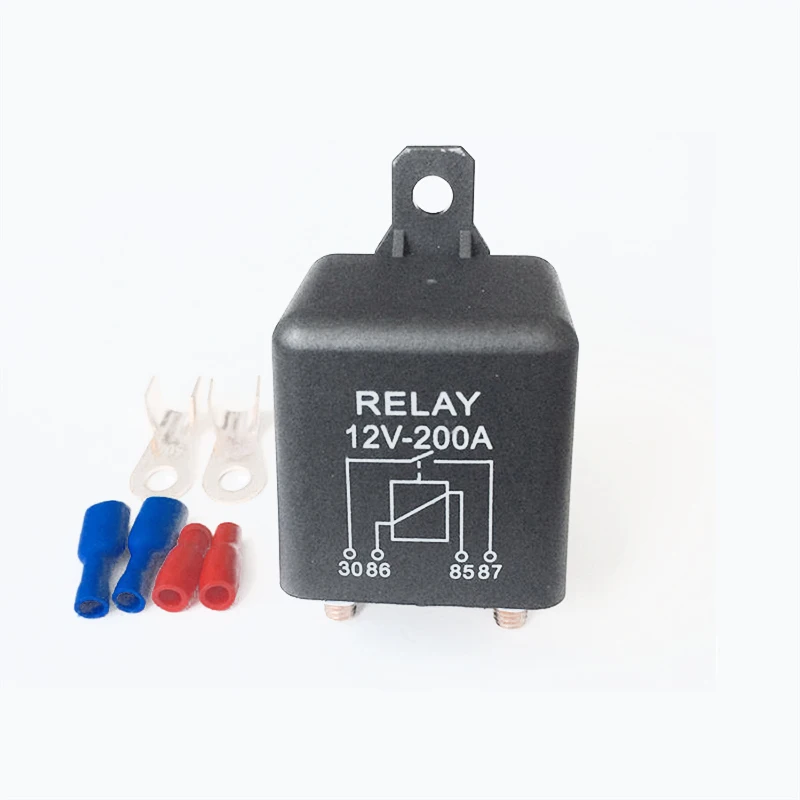

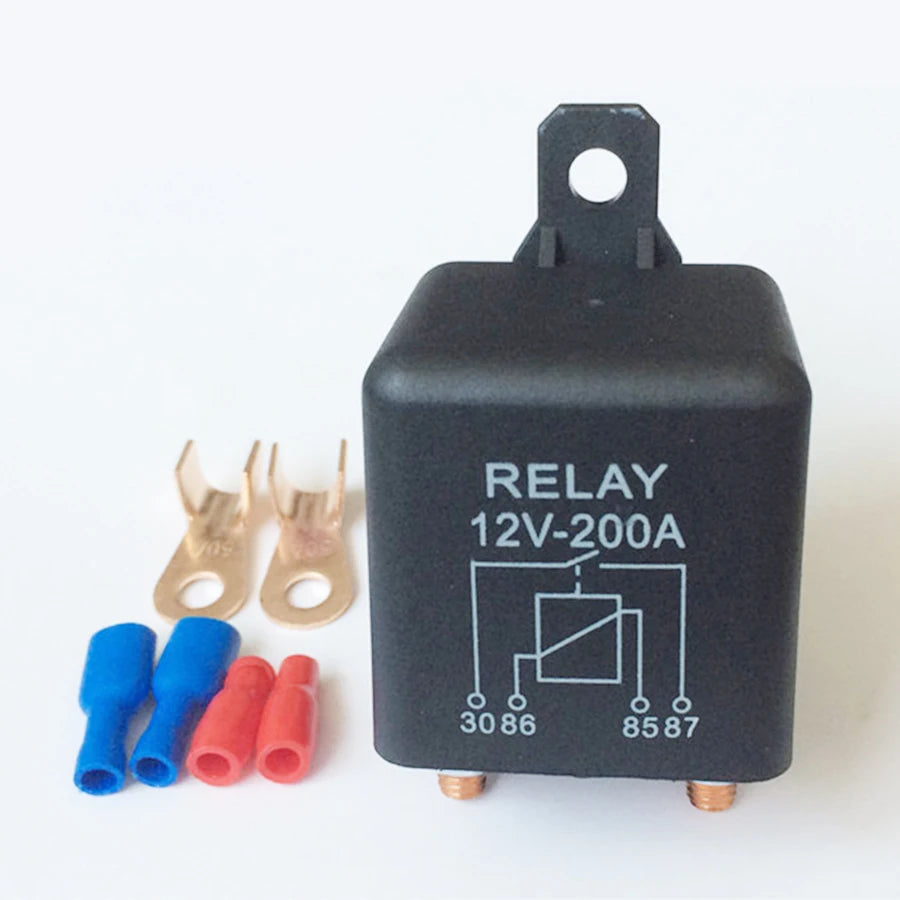

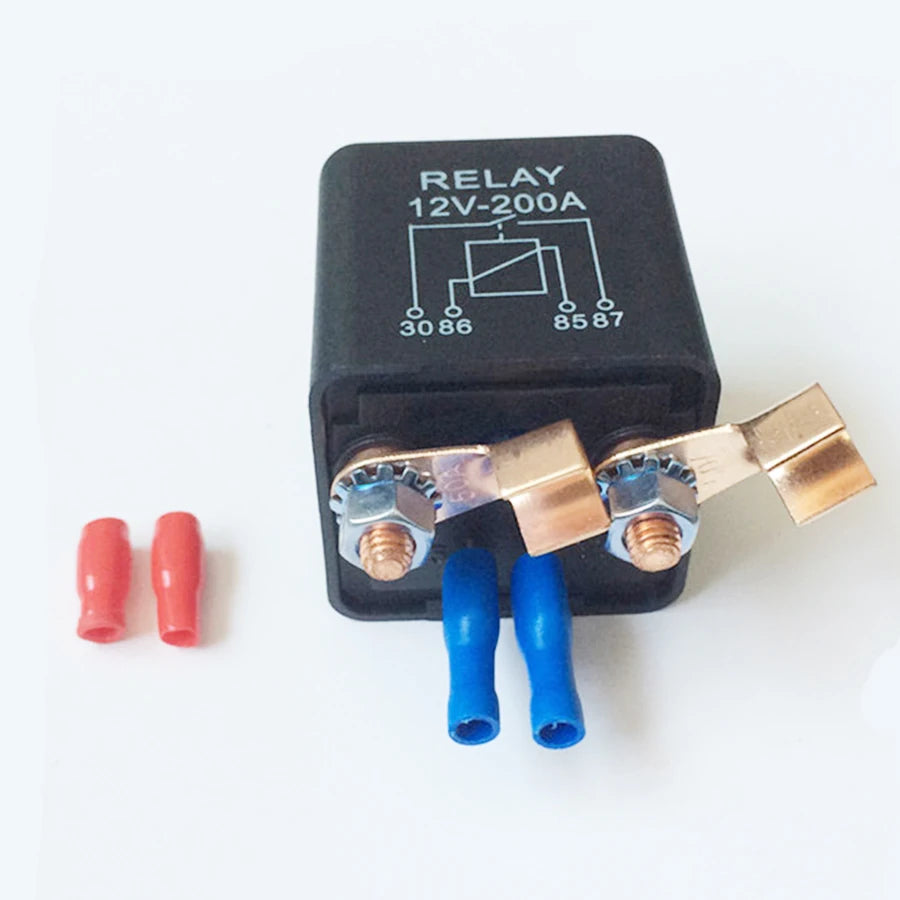

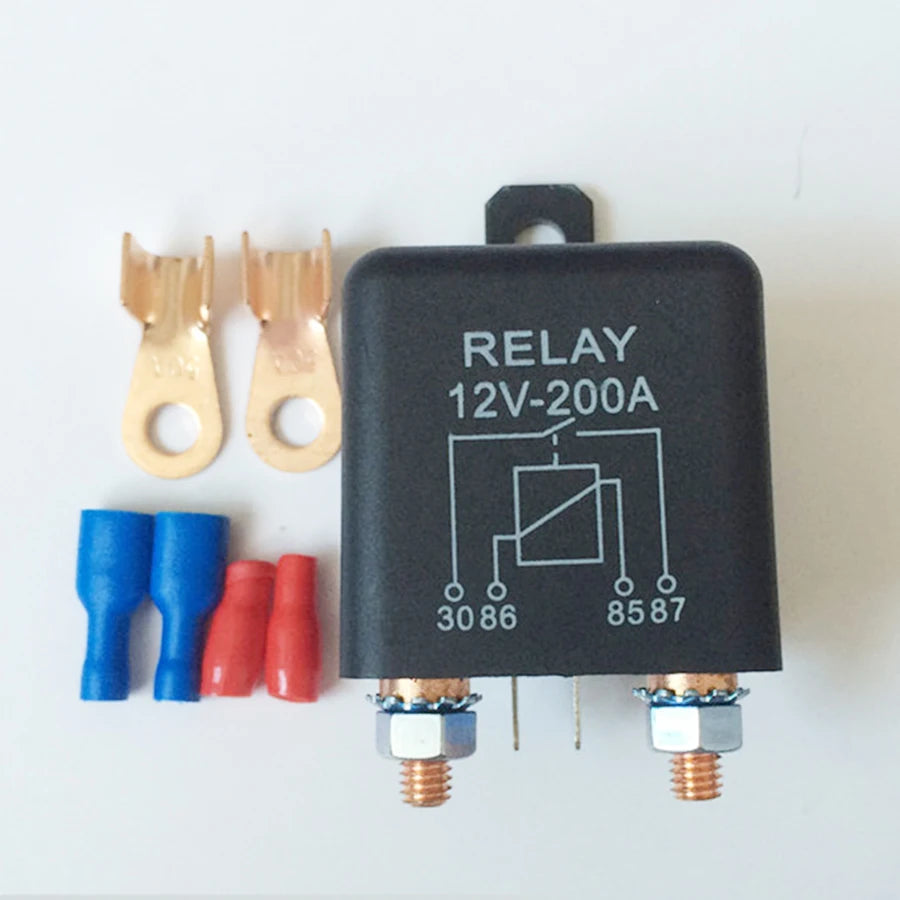

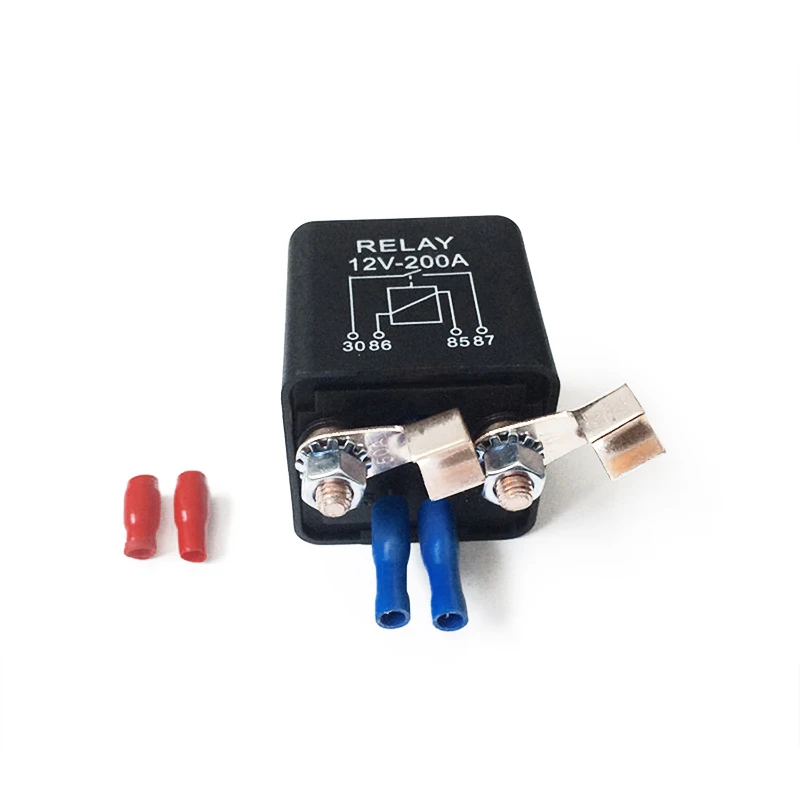

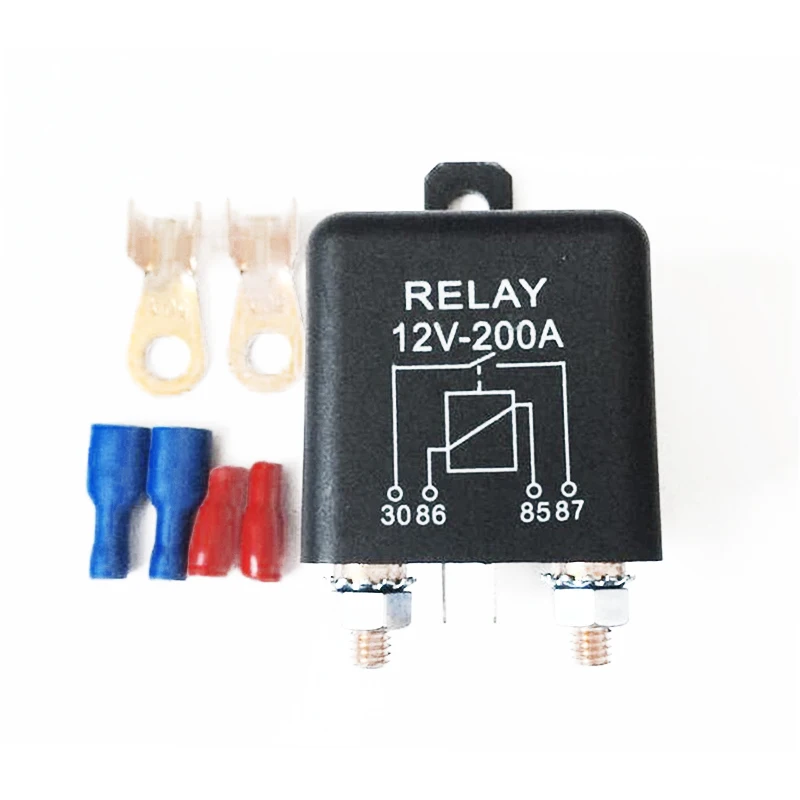

12V 120A Split Charge Relay 2 Pin for Car Automotive Starter Switch +2 Terminals

Heavy duty make or break (on/off) relay Ideal for universal 12V applicatis

Type: Extra Heavy Duty 200A Split Charge Relay

Terminals: 4 high quality durable & firm terminals

Feature :

1.High Power High Current Car Automobile Relay, Normally Open Relay

2.On Both Ends of The Coil Can Drive Resistance, or Protection Diode

Useful :Universal ,can be used in car, motor homes, tractors,Construction Vehicle etc Large vehicles start.

All kinds of large current control system

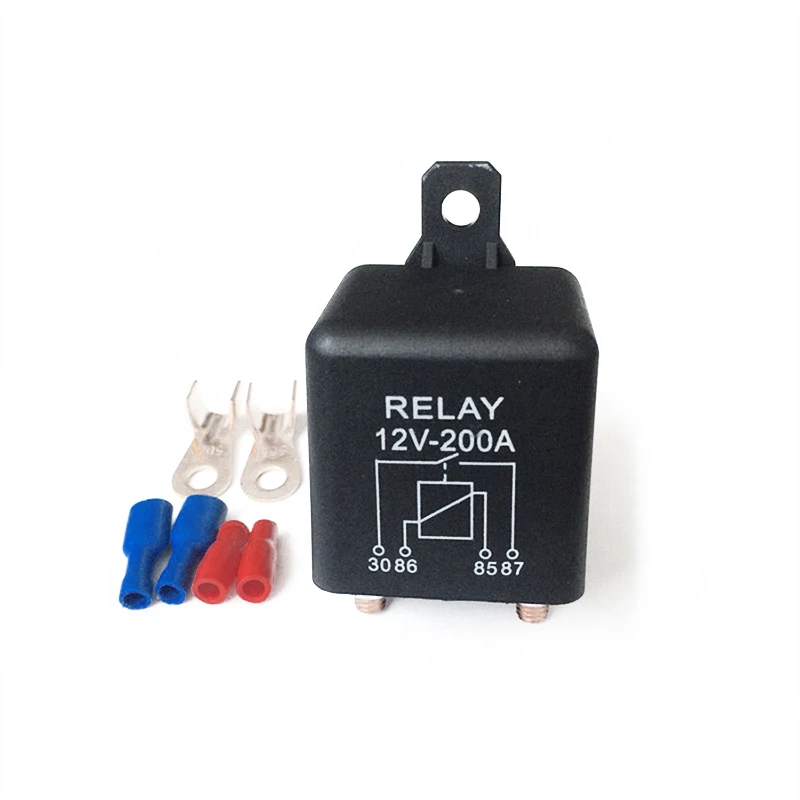

Package Included: 1 x Heavy Duty Split Charge 200A ON/OFF Relay;   2 x Terminal;   2 x Footprint

Contact Data:

Contact Material: AgSnO12

Contact Form: Normal Open

Contact Ratings: No: 200A

Max switching Current: 200A

Max Switching Voltage: 75VDC

Max Switching Power: 2000W

Life Expectancy Electrical: 100,000 Operations (at 30 Operations/min)

Life Expectancy Mechanical: 10,000,000 Operations

Coil Specification:

Nominal Voltage(VDC): 12V

Coil Resistance (4.8W/2.4W): 30/60

Max Operate Voltage (VDC): 6.0~8.0

Mix Release (VDC): 1.2~3.6

Max Applicable Voltage (VDC): 15.6

Characteristics:

Temperature Range: -30°C ~+80°C

Shock Resistance:

Operations Extremes: 10g

Damage Limits: 100g

Humidity: 40%~85%

Insulation Resistance: 100m ohm Min at 500VDC

Dielectric Strength Between Open Contacts 500VAC (for one minute/sec)

Between Contact and coil: 750VAC (for one minute/sec)

Operate Time: 15ms

Release Time: 10ms
