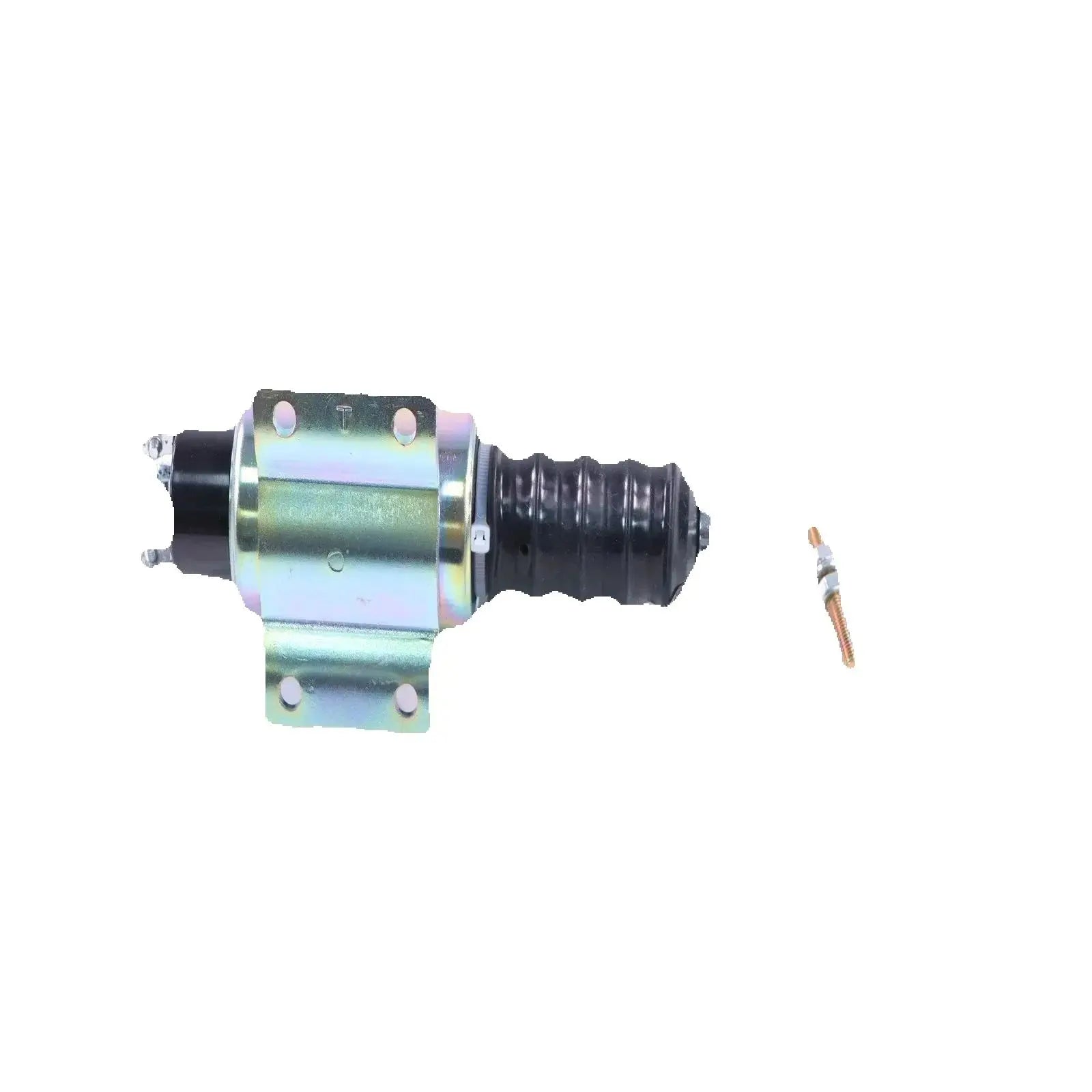

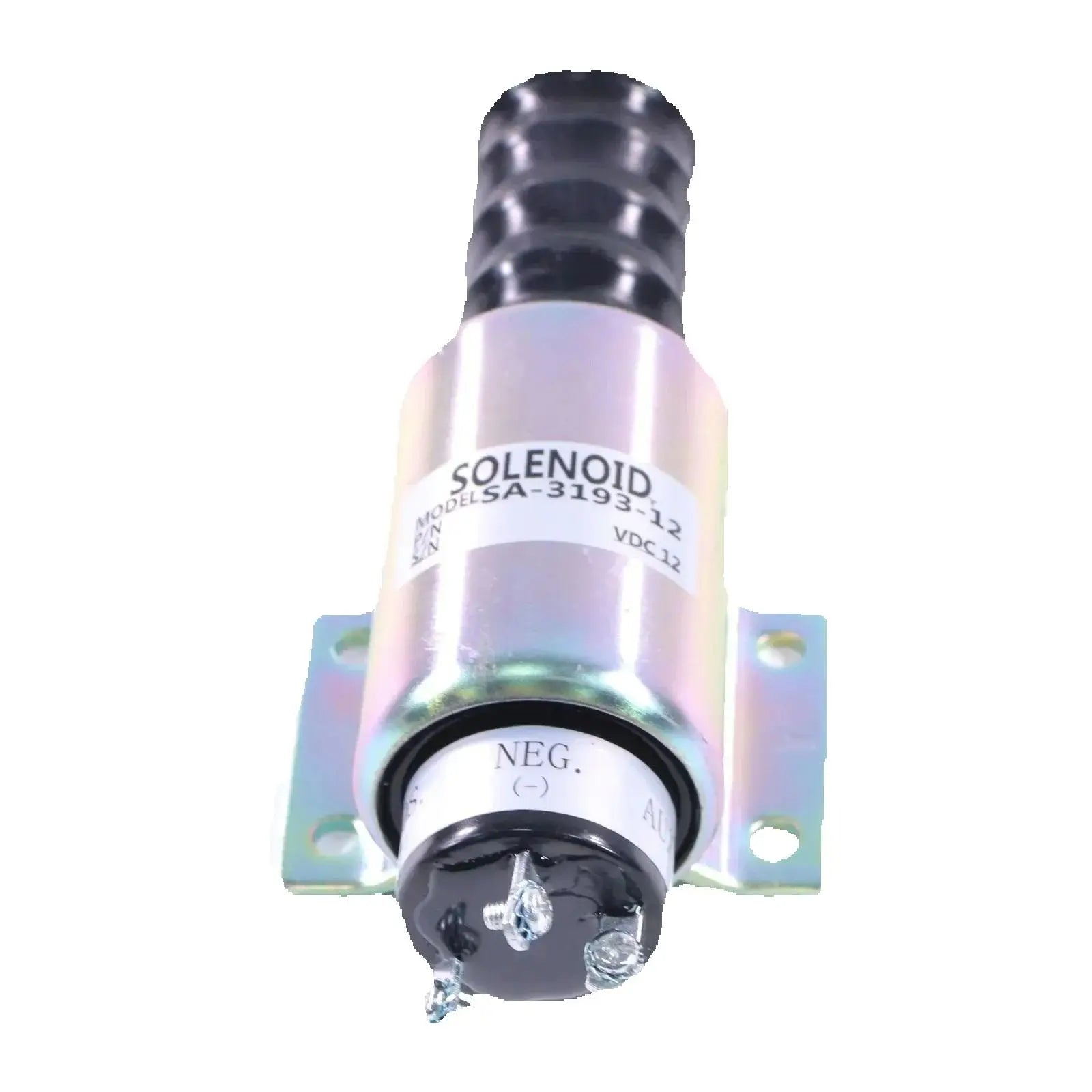

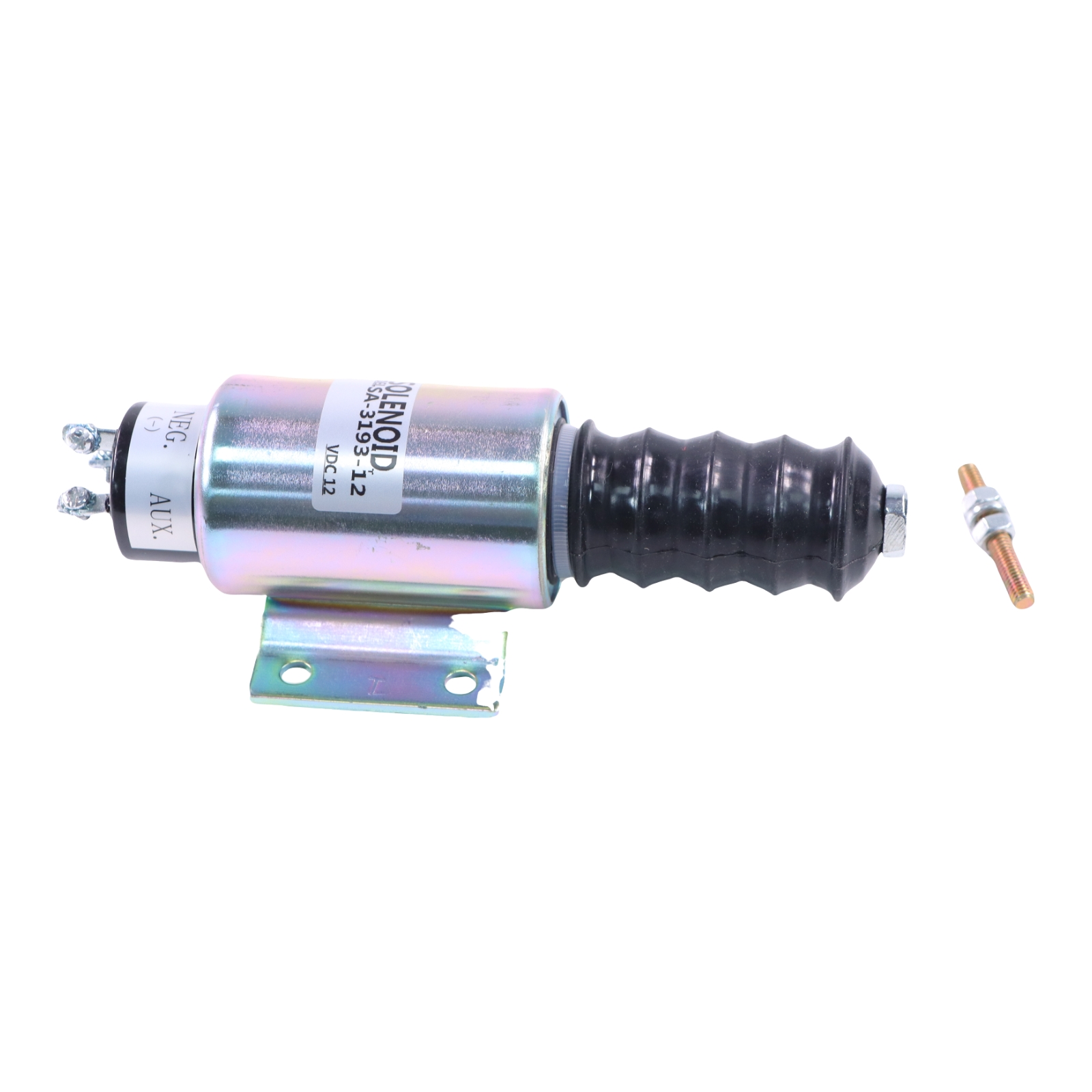

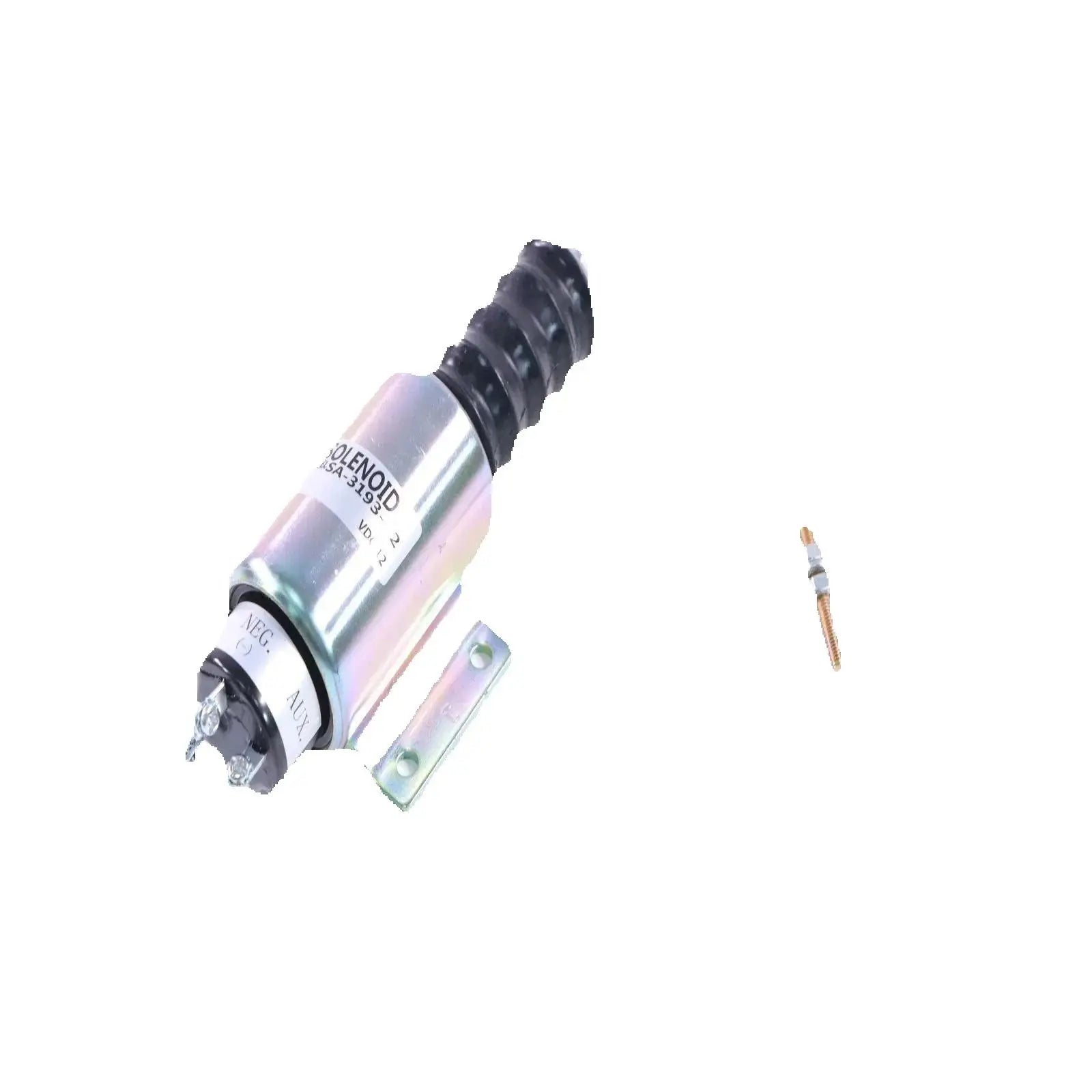

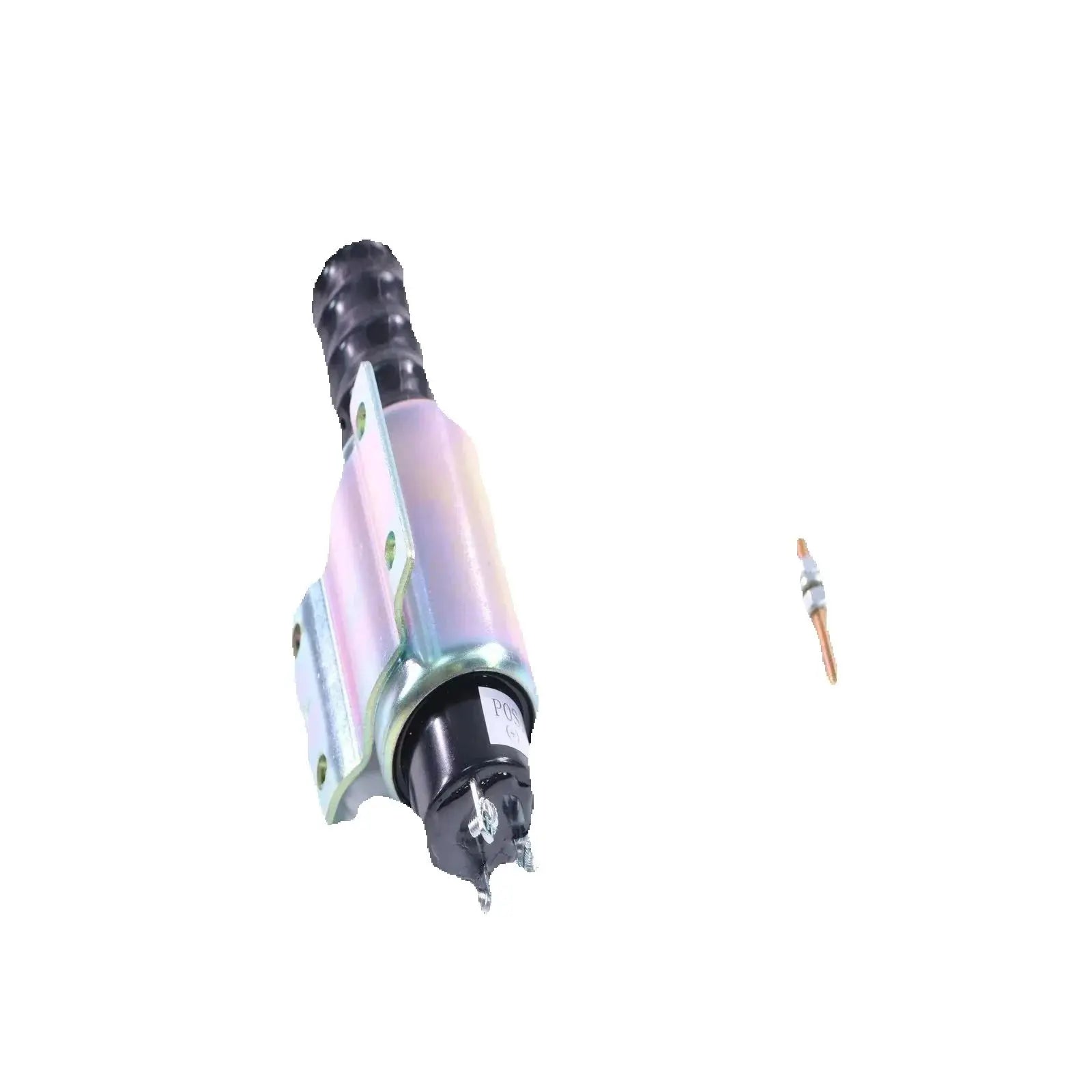

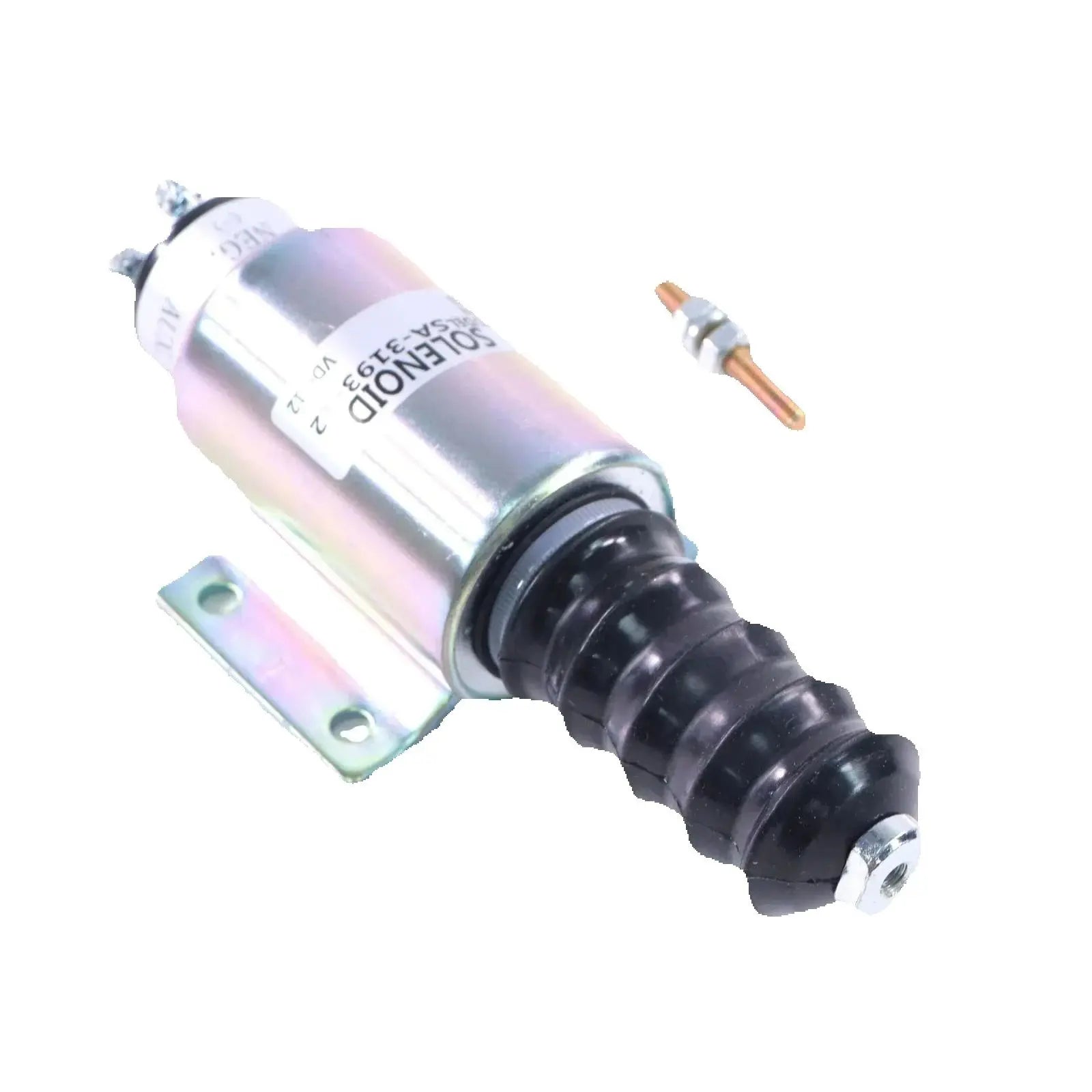

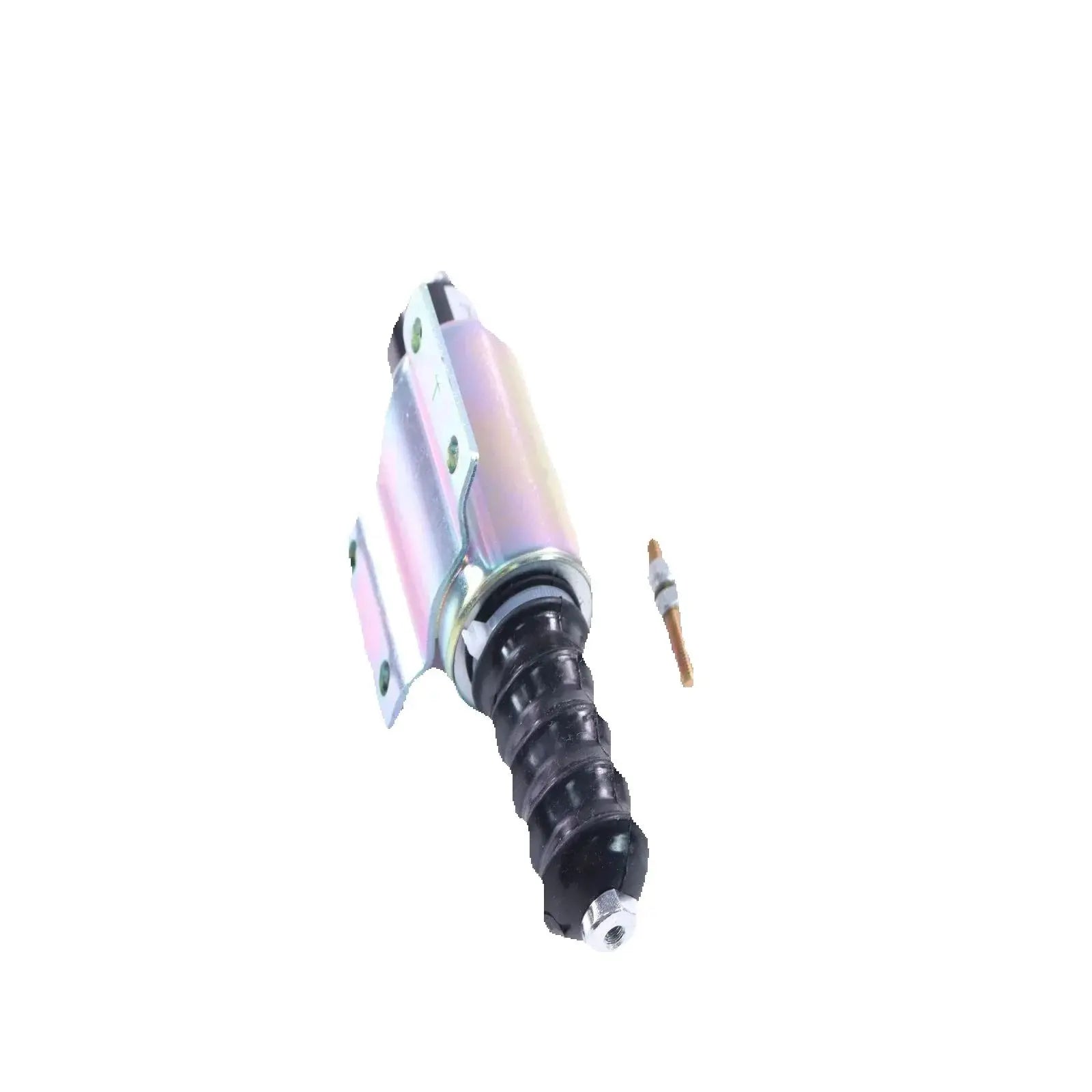

12V Solenoid Valve SA-3193-12 2003-12E2U1B2S1A FOR Woodward Engine Shut Off Valve Componen

Package Includes:

• 1 x 12V Solenoid Valve

OEM/Cross Reference Part Number:

• SA-3193-12

• 2003-12E2U1B2S1A

Compatible Vehicles

Installation Information

Connect the electrical terminals of the solenoid valve to the corresponding 12V power source and engine control system according to the wiring schematic of the equipment. Ensure proper polarity. Mount the solenoid valve in the designated location using appropriate hardware, ensuring a secure fit to prevent vibration-induced damage. Attach fuel lines or hydraulic lines to the inlet and outlet ports as specified by the system design, utilizing compatible fittings and seals to prevent leaks.

Important Notes

• - Verify that the voltage rating of the solenoid valve (12V) matches the equipment's power supply.

• - Ensure the part number matches the existing or replacement component requirements.

• - Confirm physical dimensions and port sizes are compatible with the installation environment.
