2" 52mm Fuel Level Gauge+Fuel Float Level Sensor 0-190 Ohm Oil Tank Meter Indicator With Red Bac - Automotive LED Light

2" 52mm Fuel Level Gauge+Fuel Float Level Sensor 0-190 Ohm Oil Tank Meter Indicator With Red Backlight For Boat Yacht Car 9-32V

Note:

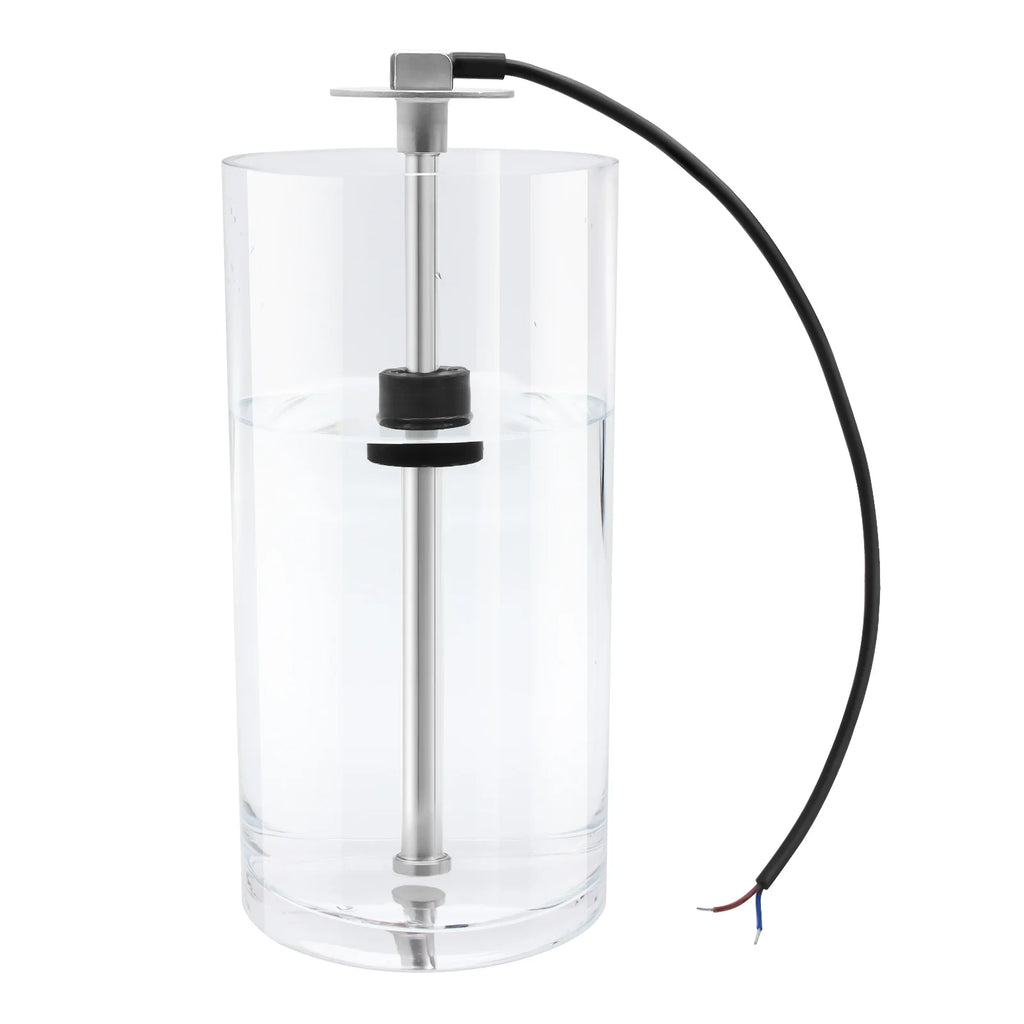

In order to ensure that when the fuel gauge displays empty,and the car or boat can still travel a certain distance, there is a safety blind spot distance of about 50mm at the top and bottom of the sensor. The default resolution is 21mm,
such as a size of 200mm, 200-50=150mm , 150/21=7 resistance values.
that means 200mm have 7 resistance values.

PLEASE NOTES!

The default resolution of the sensor is 21mm, and there is a safety blind zone distance of approximately 50mm at the top and bottom of each sensor,
for example,

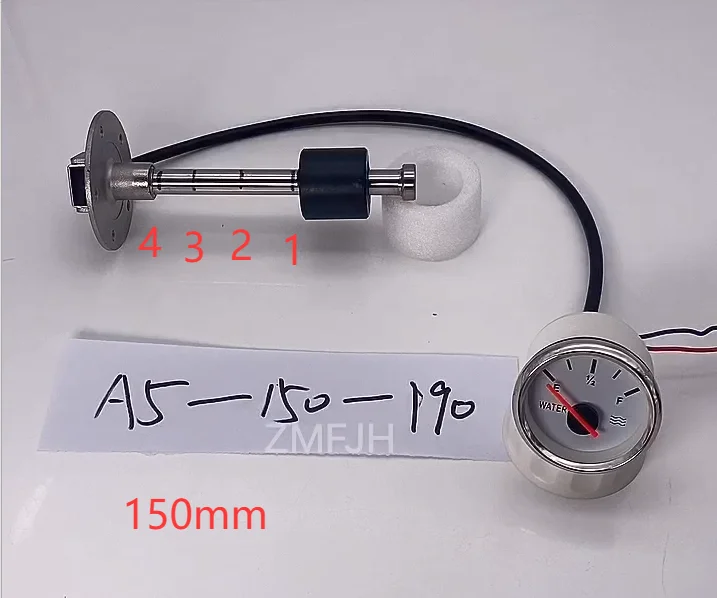

150mm length, (150-50)/21=4 resistance values

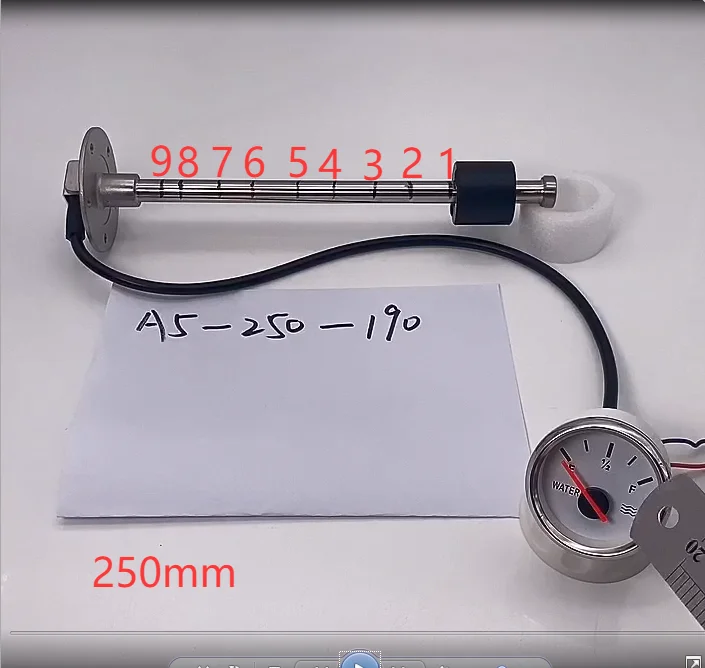

250mm length, (250-50)/21=9 resistance values

NOTES!

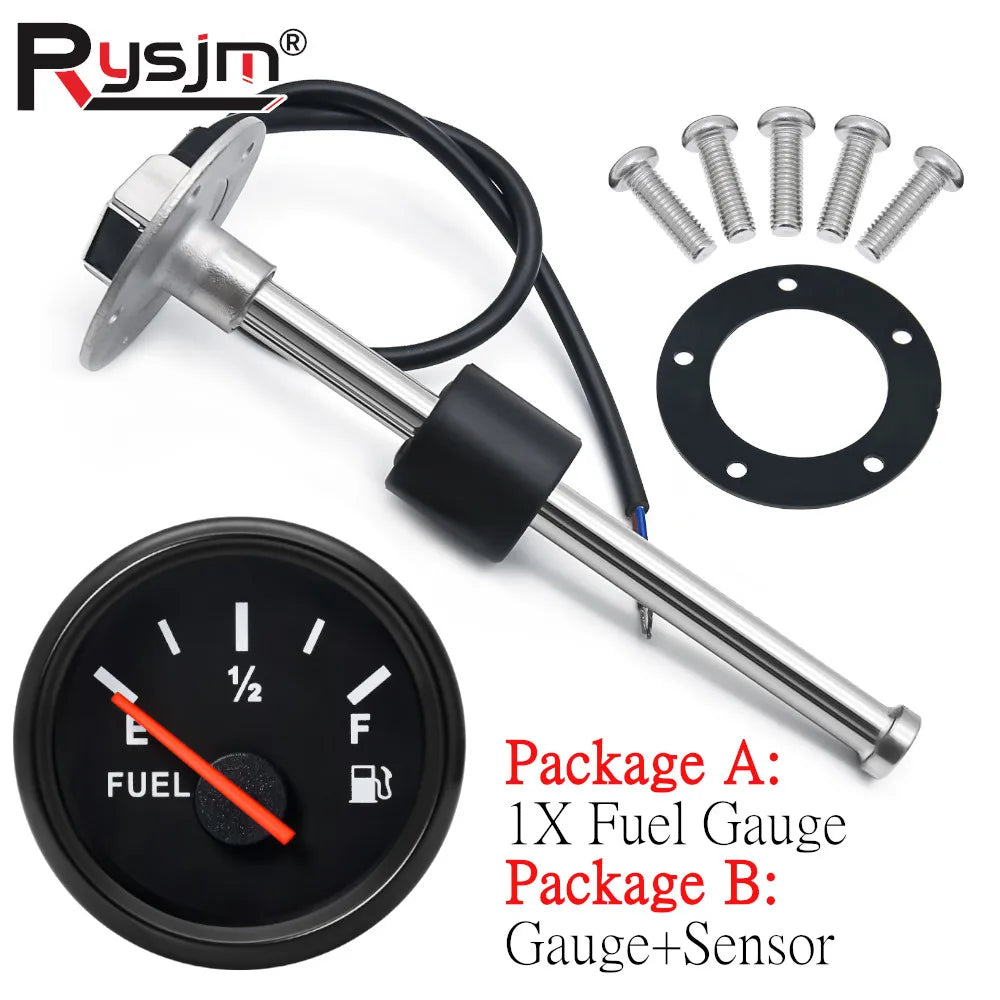

The sensor and meters needs to be purchased separately if you need them at the same time, the meters does not include a sensor, the sensor does not include meter,please know, thank you!

Product Descriptions:

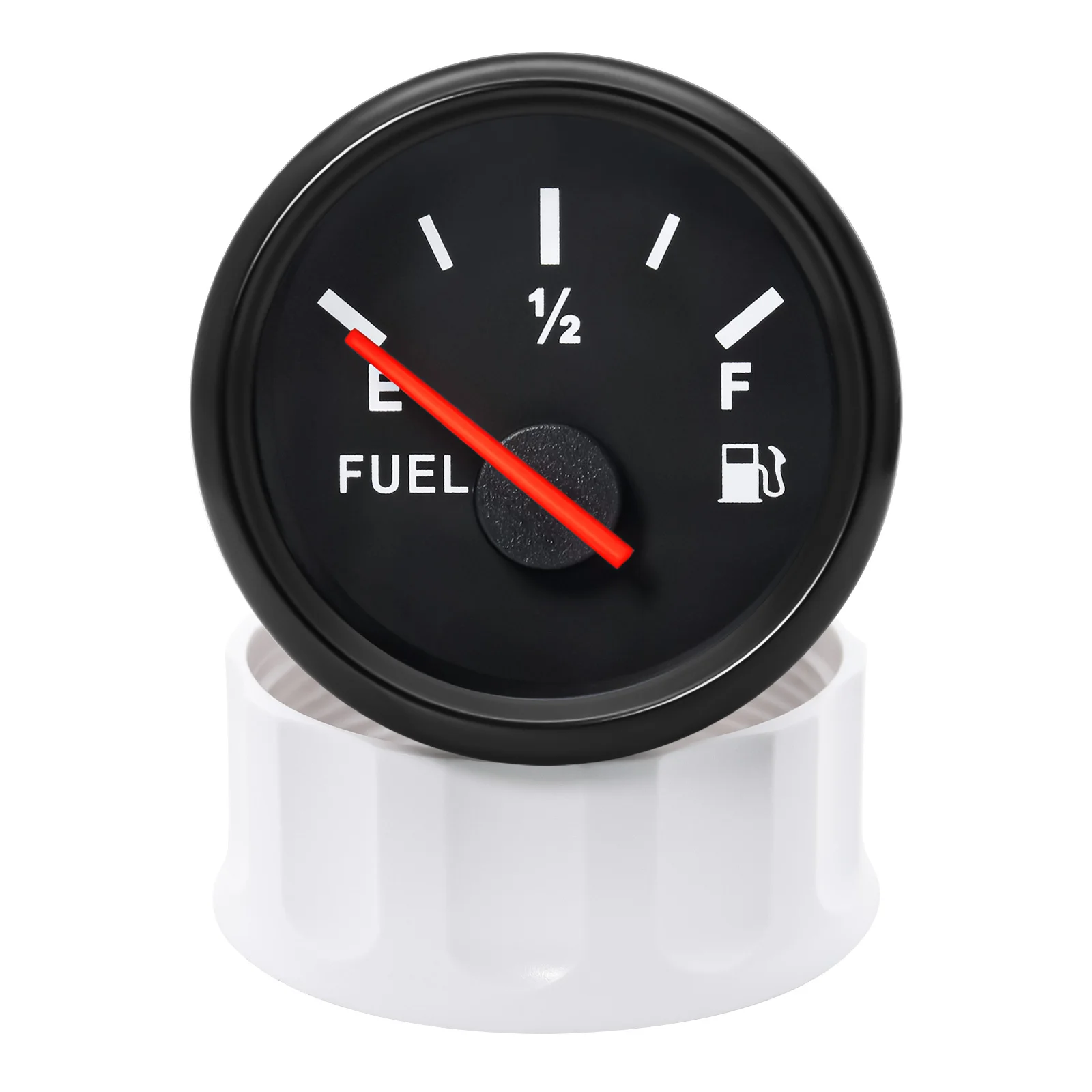

(1)100% Brand New Pointer Fuel Level Gauge

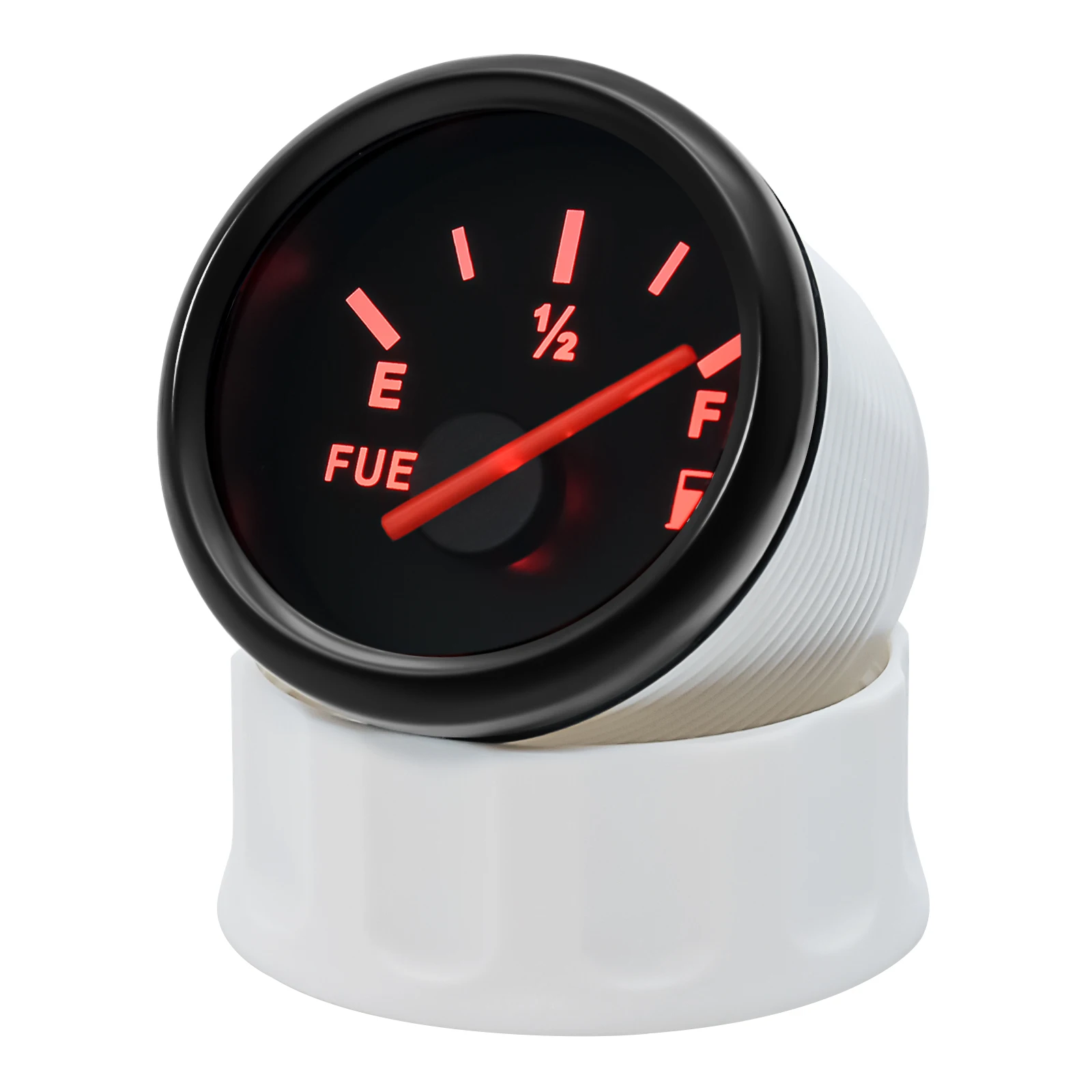

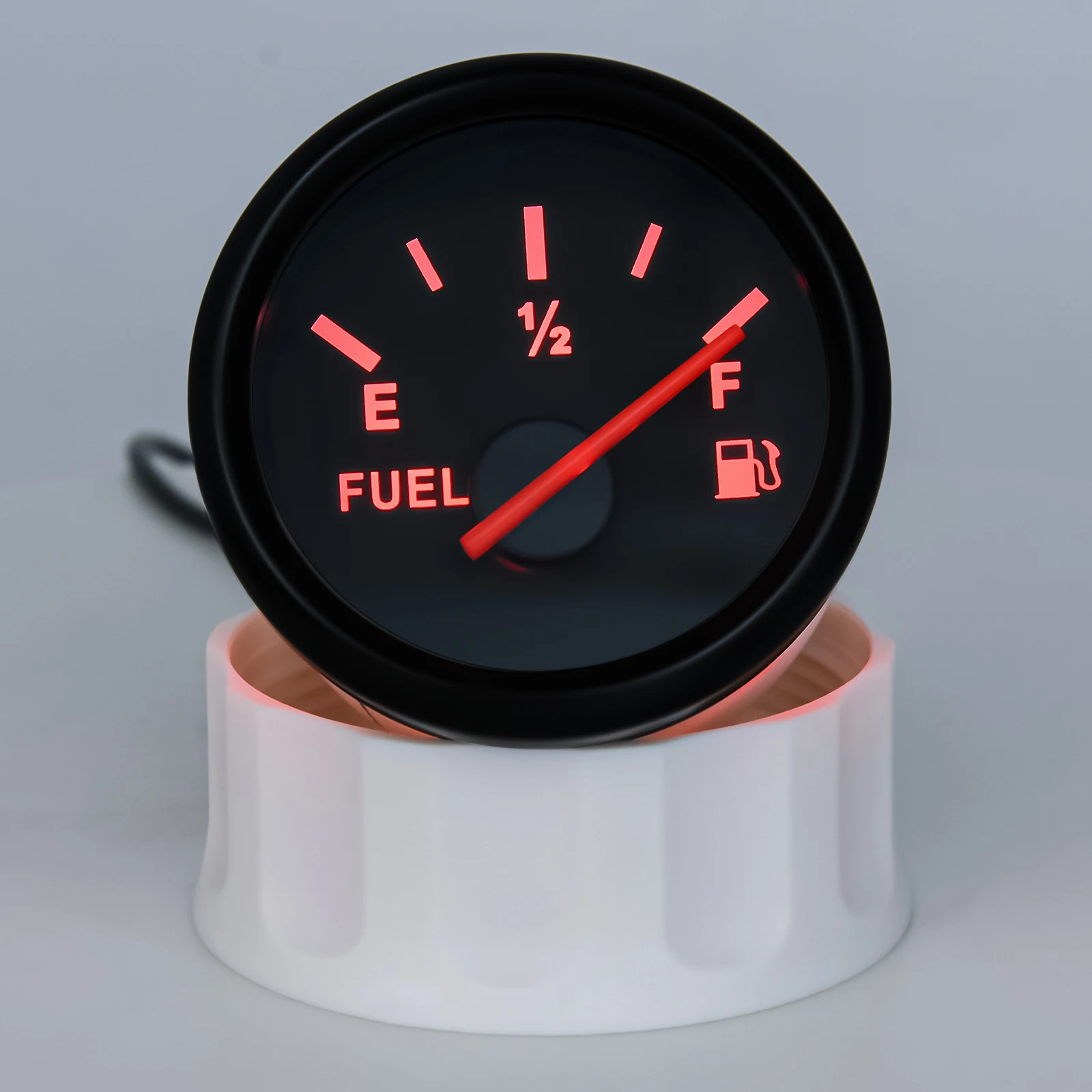

(2)LED light dispalay , knowing the oil level status real-time

(3)With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).

(4) Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.

(5)The harness connector has a snap to ensure a secure connection between the meter and the harness, it is still reliable in applications where vibration is strong.

Specifications:

(1)Signal:0-190ohm
(2 )Working current ≤60mm
(3 )Fixing dimension: 52mm(2")
(4) Indicating Range: E-1/2-FULL
(5) Lasting working voltage: 9-32V, up to: 36V (≤ 1 minute)

Package Includes:

1 x Fuel Level Gauge
1 x English Instruction

Please Note：

-This product has two choices of 0-190 ohm and 240-33 ohm. Please choose the correct parameters before payment, thank you very much!
