NEW 85mm Water Temperature Meter Oil Pressure Fuel Level Voltage 4In1 Multifunctional Gauge Oil Press Sensor For Car Boat 8~16V

Features:

* The world's newest 4 in 1 multifunction gauge.

* Convenient Installation by multi-plug socket connecting way.

* The gauge has the advantages of high precision, quick location confirmation and short start up time.

* Most importantly, the gauge is easy to setup, and can be used in all vehicles, boats and off-road vehicles.

Technical Data:

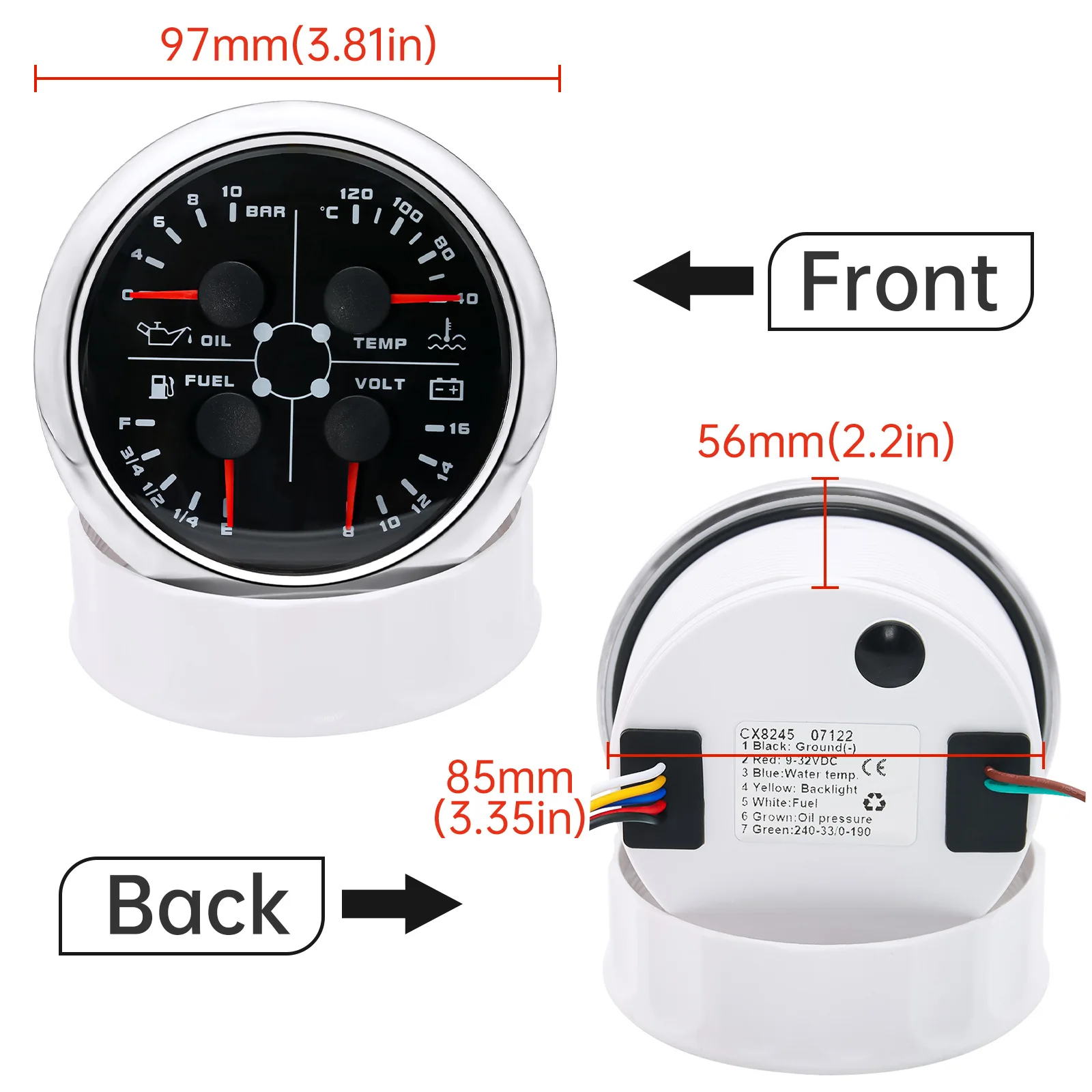

* Fixing dimension: 85mm

* Indicating Range: Oil press. meter: 0-150psi;/0-10Bar

* Water temp. meter: 100-250° F/ 40-120℃

* Fuel level meter: 0-190ohms/240-33ohms, empty-full; （The signal can be change）

* Voltmeter: 8-16V

* Working Voltage: 12V

* Backlight: Red

Input Signal:

* 10-184ohms for 0-150PSI oil pressure meter;

* 0-190ohms for fuel level meter;(Default 0-190ohms, can change to 240-33ohms)

* 8-16V voltage meter;

* Input Signal 287.4-22.4ohms for water temperature meter

* Red backlight

* Protection grade is IP67, the whole body is completely waterproof;

* Excellent antifogging function;

* 316 Stainless steel bezel with curved glass;

* Convenient Installation by multi-plug socket connecting way;

* Accessories: matched with connectors, Installation Instruction

4 in 1 Gauge

4 in1 gauge

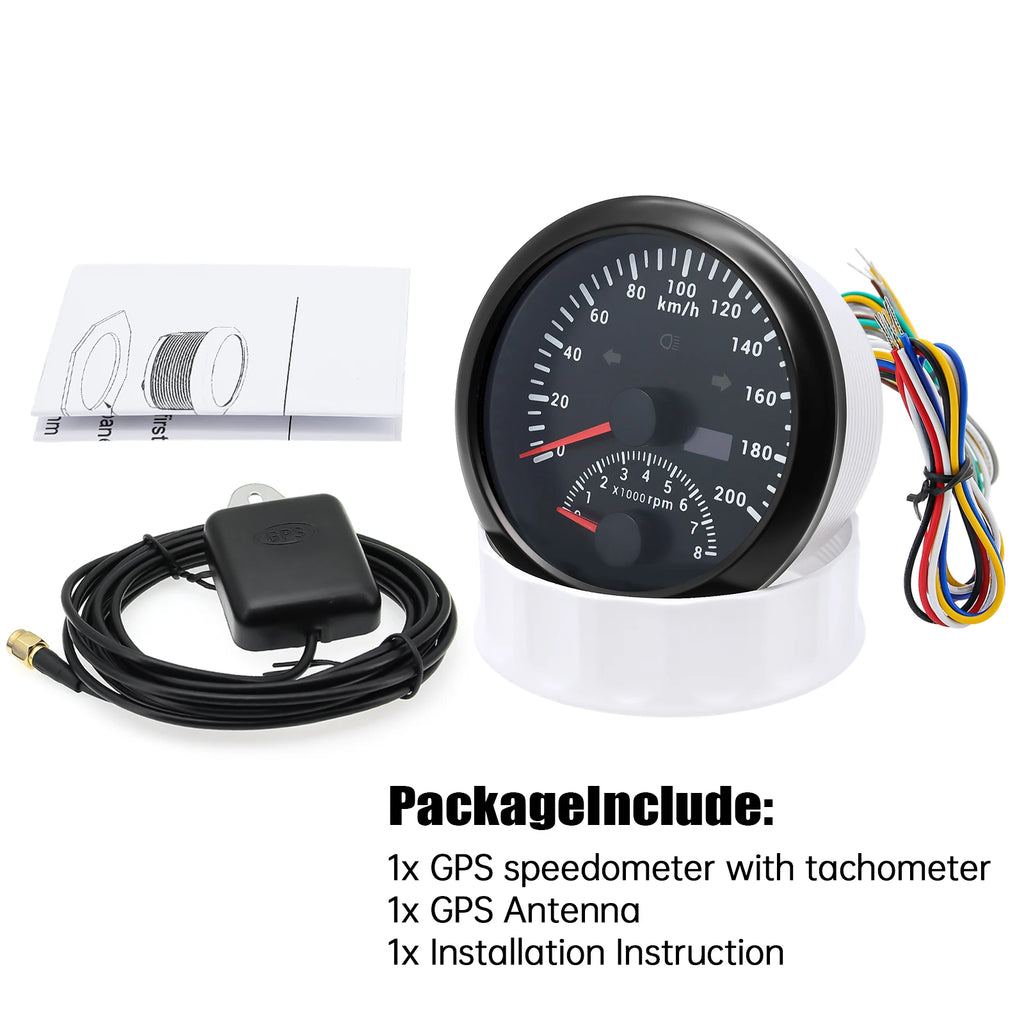

85mm gps speedometer

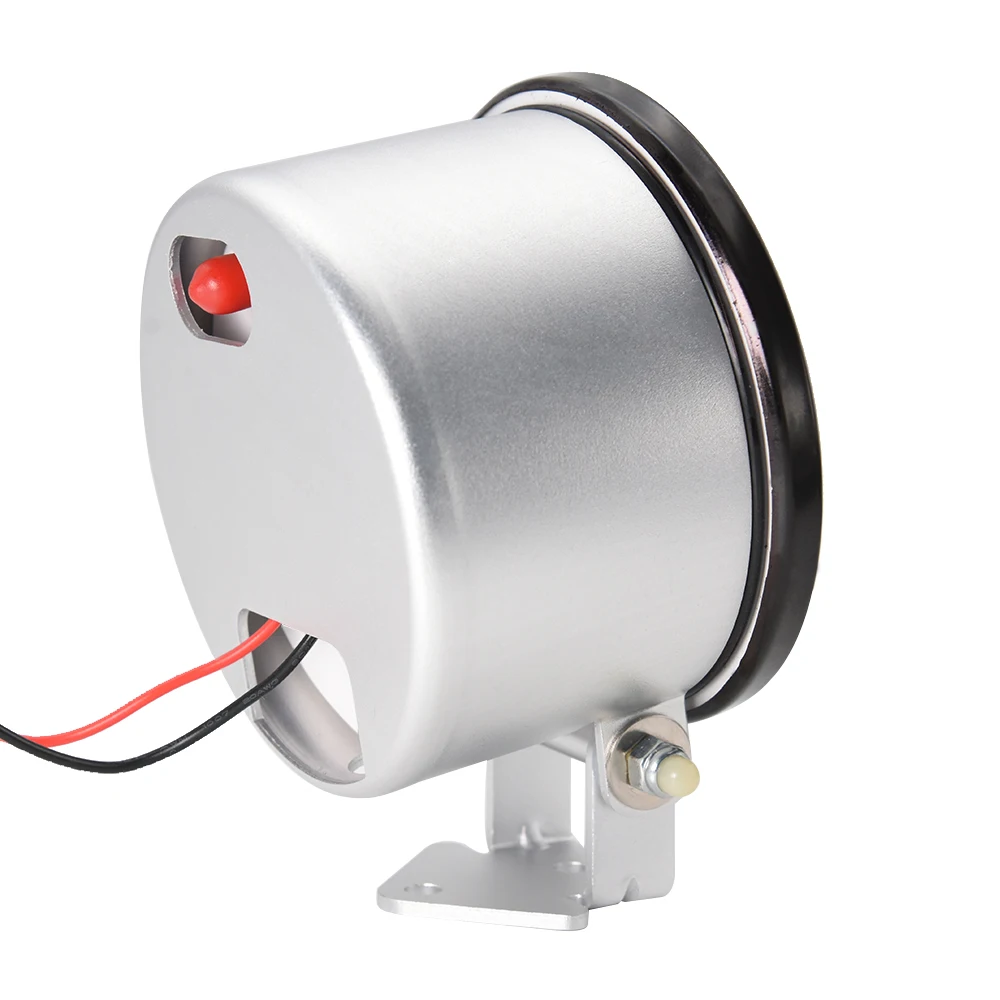

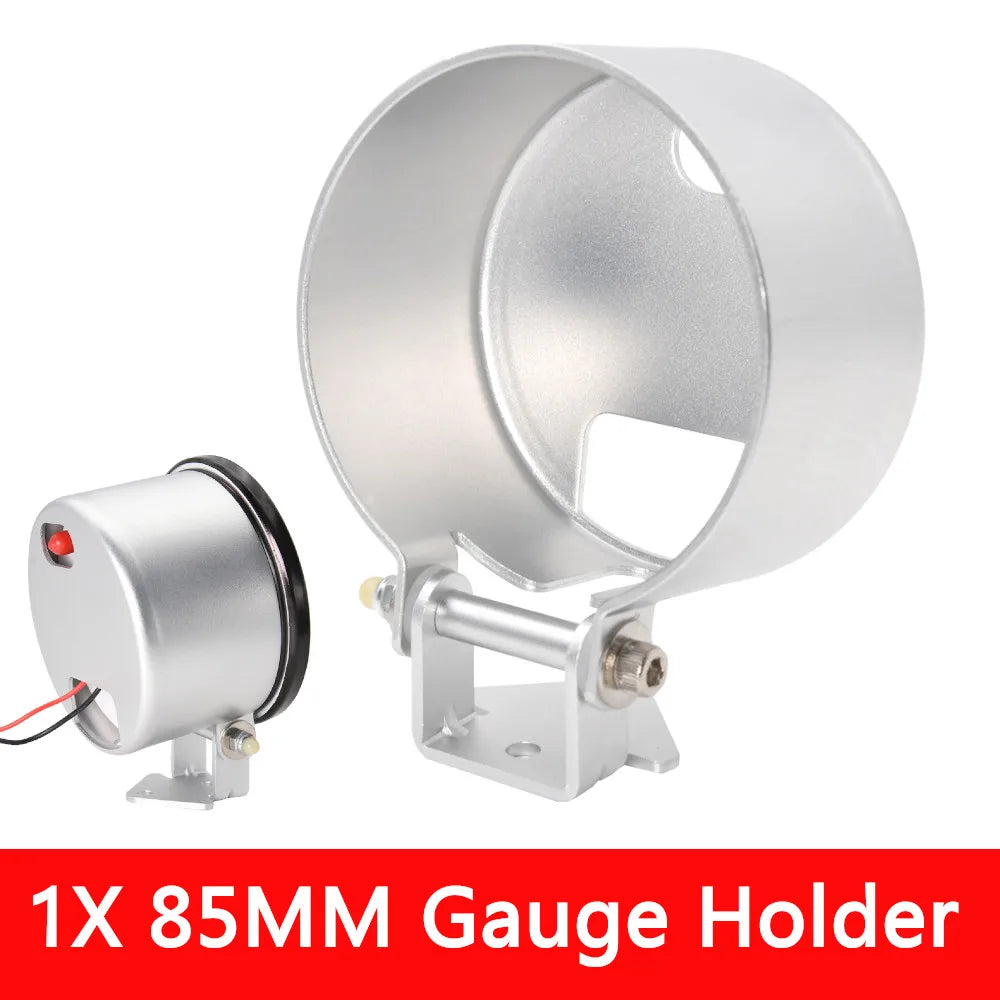

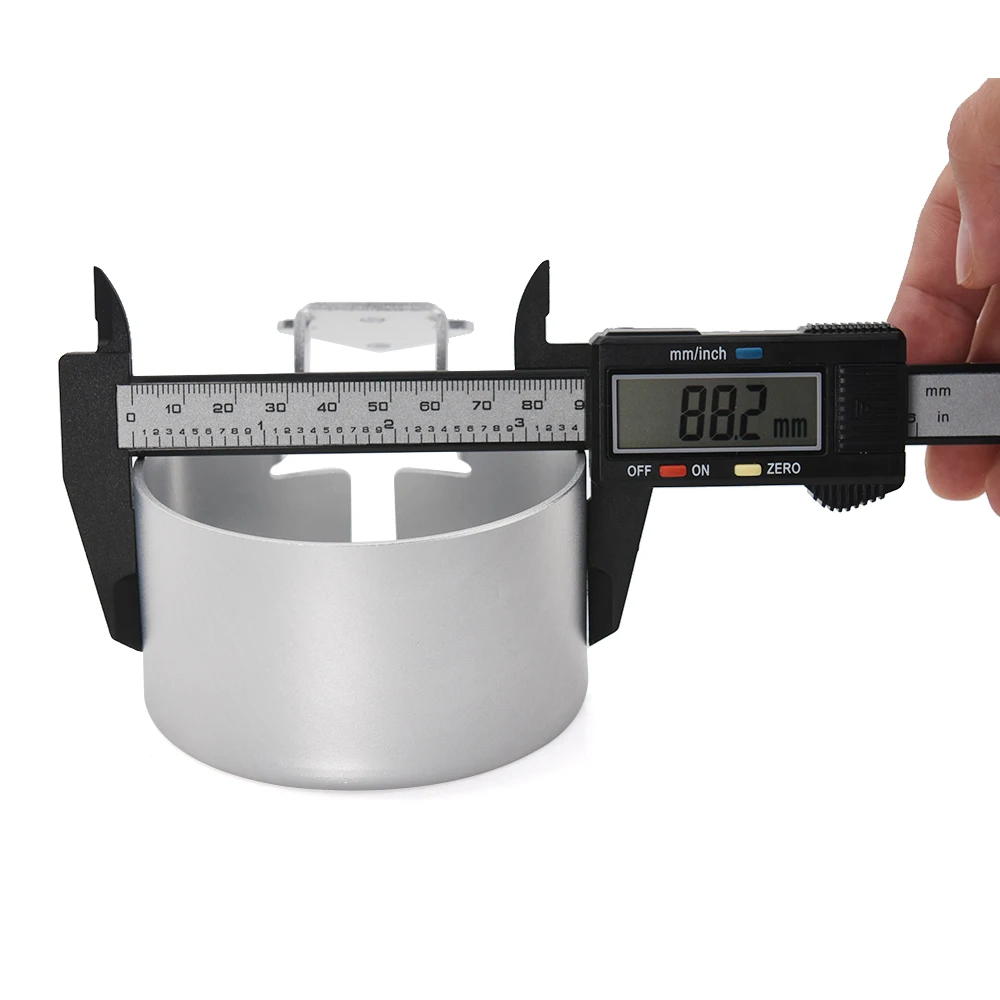

85mm gauge holder
