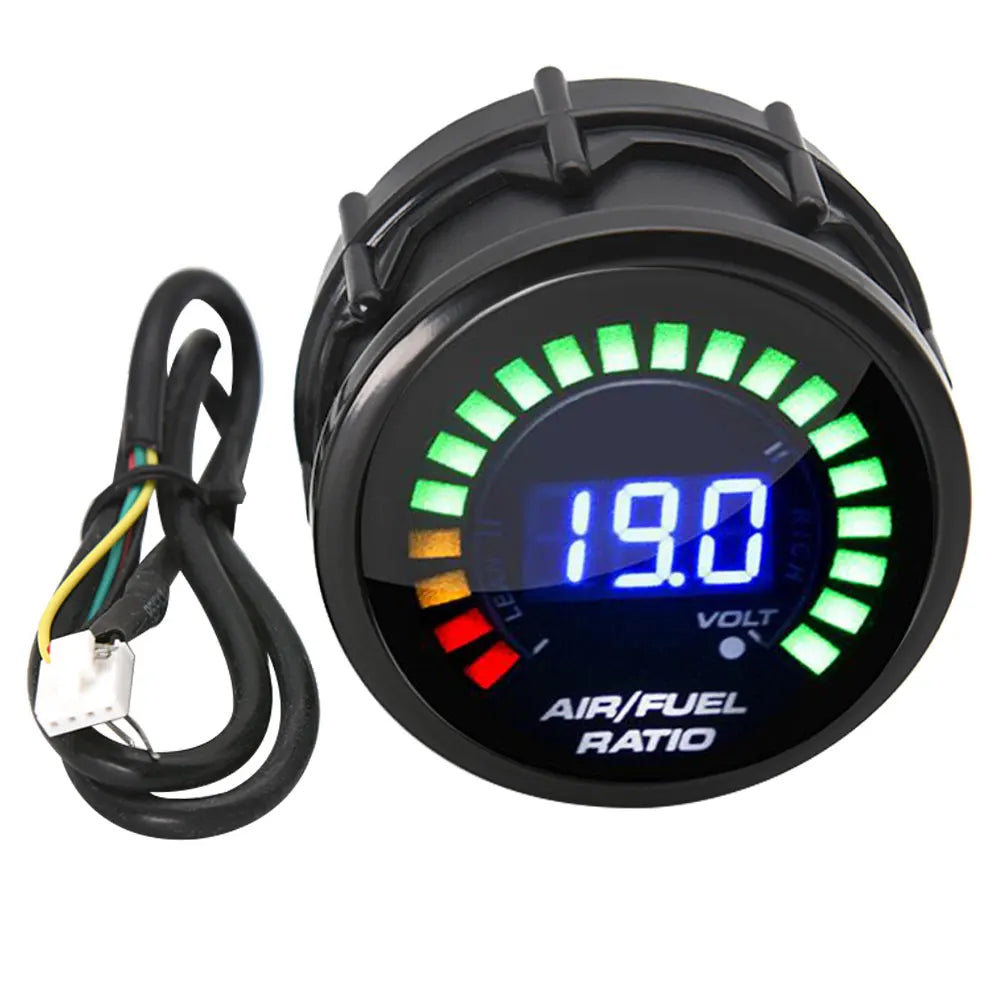

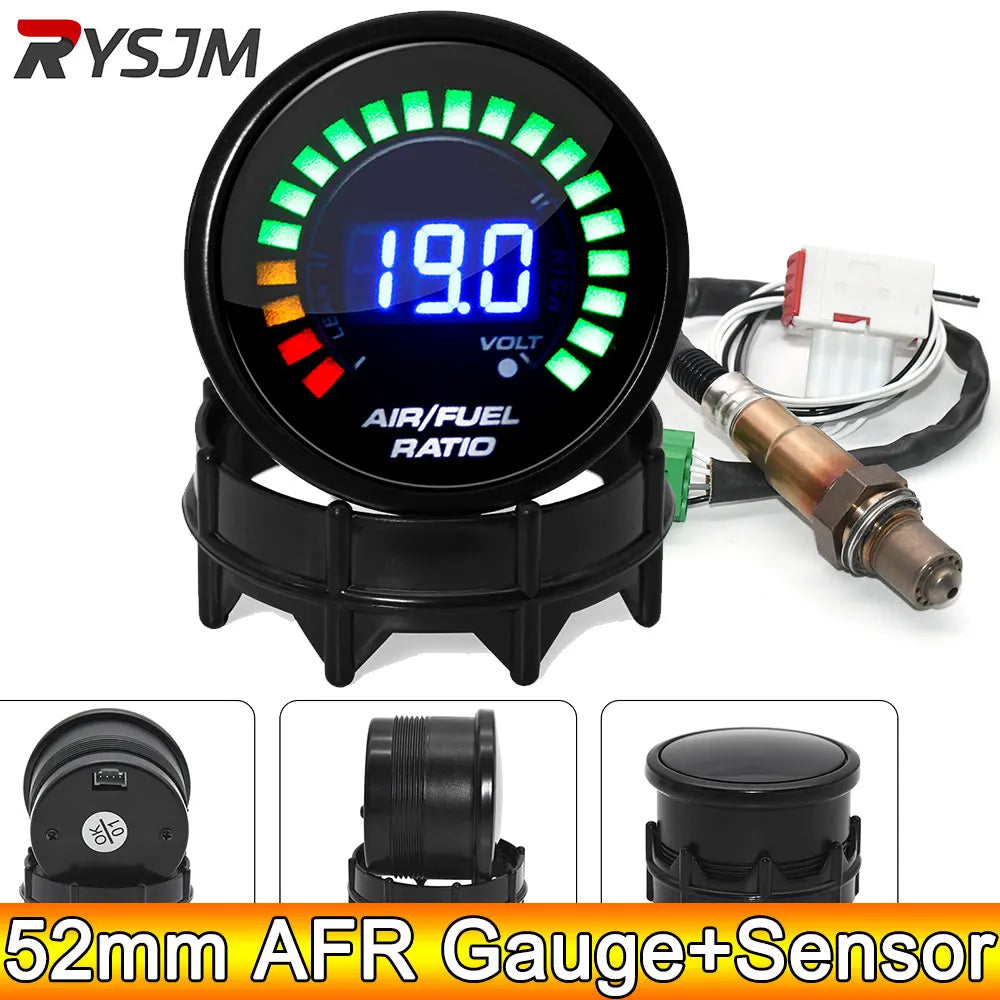

ADQ Digital 52mm Air Fuel Ratio Gauge LED Digital Display With Narrowband O2 Oxygen Sensor 06J90 - Automotive LED Light

Feature:

1. Easy Installation With Users Manual In English

2. Comes with Mounting and Installation hardware.

3. Professional Installation is Highly Recommended.

4. Add a racing look and feel to your ride,High quality and light weigh.

5. Smoke tint lens during the day,Clear and bright LED Display during the night.

Oxygen Sensor Specification:

- OEM:0258006028

- Working Voltage: DC12V

- Signal Line Voltage: 0-1V

- Spiral: M18*1.5

- Use Wrench: 22mm

- Output Voltage: Maximum value ≥900mv/ minimum value ≤50mv.

- Response time: (600mV-300mV) ≤100ms.

- Response time: (300mV -600mV) ≤100ms.

- Starting time: ≤10s

- Heating resistance: 8.5~9.5Ω

- Internal resistance: 200~300Ω

- fit For Geely Emgrand CITROEN FIAT PEUGEOT

Air fuel ratio:

- Measurement Range: 20:1 ~ 10:1

Package Included:

1x Gauge + sensor

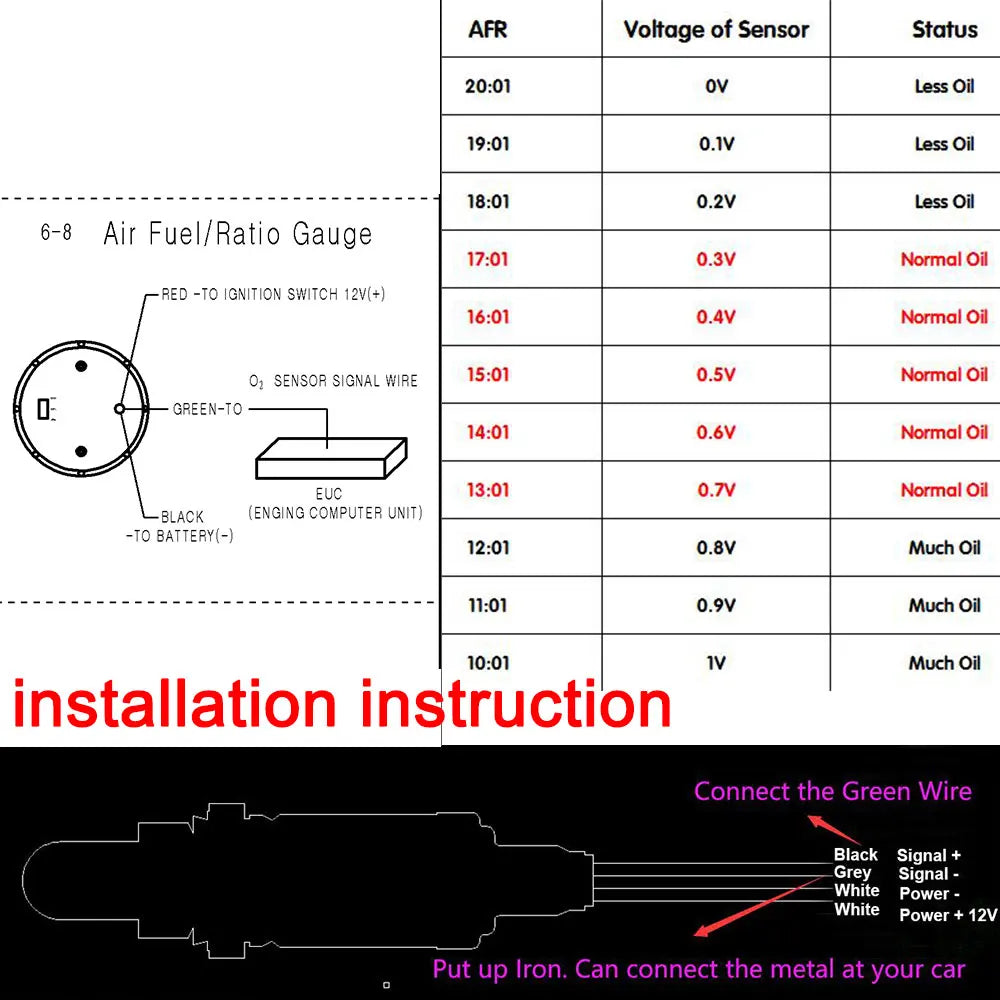

O2 sensor instructions

The white line is at heater ab

Black line signal line C, gray line signal ground D

The green wire of the instrument is connected with the black wire of the sensor. The gray line is connected to the negative pole of the battery.

One white wire connect with the car shell or battery negative pole.
Another white wire connect to the ACC line of ignition switch


The white line is the heater and does not distinguish between positive and negative electrodes
