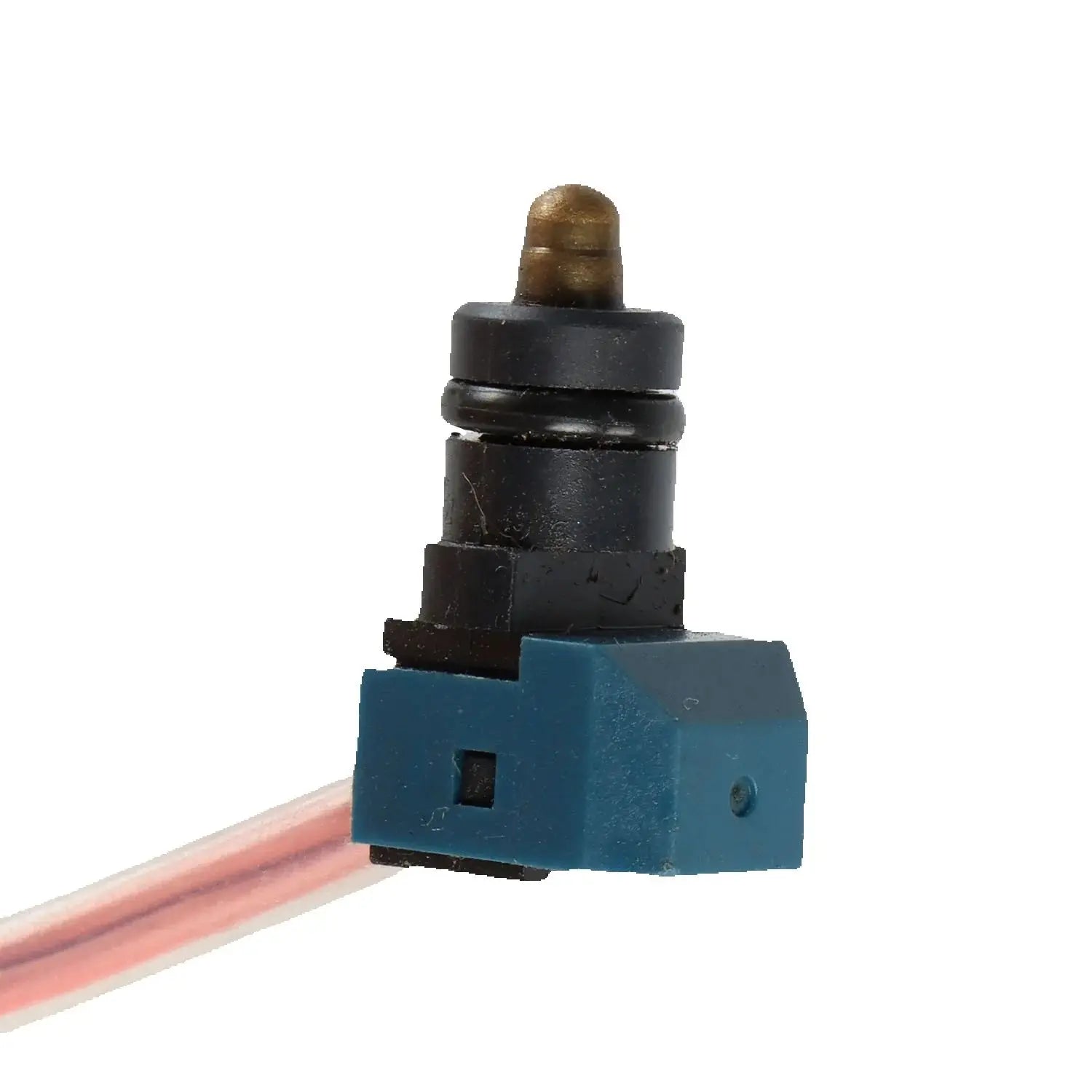

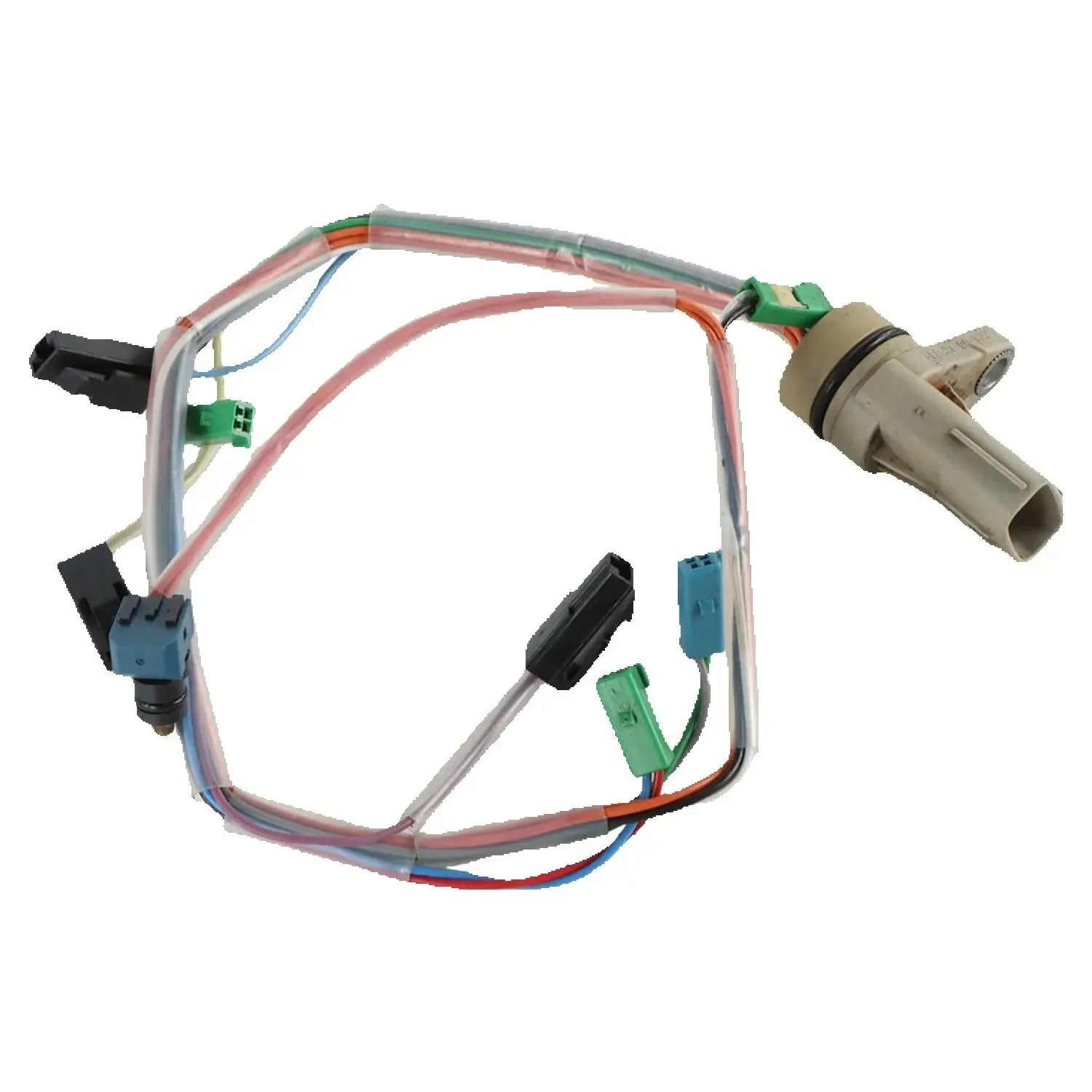

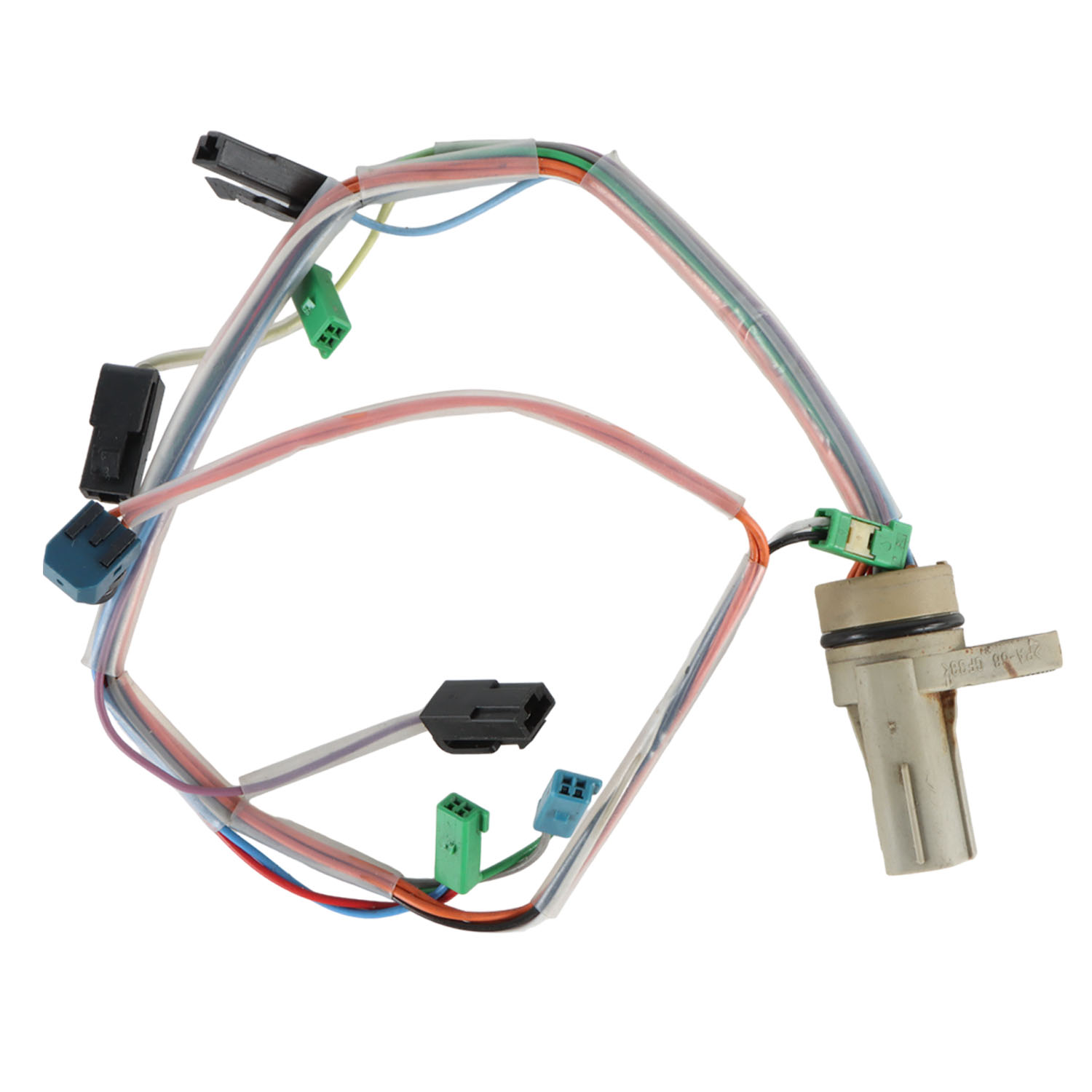

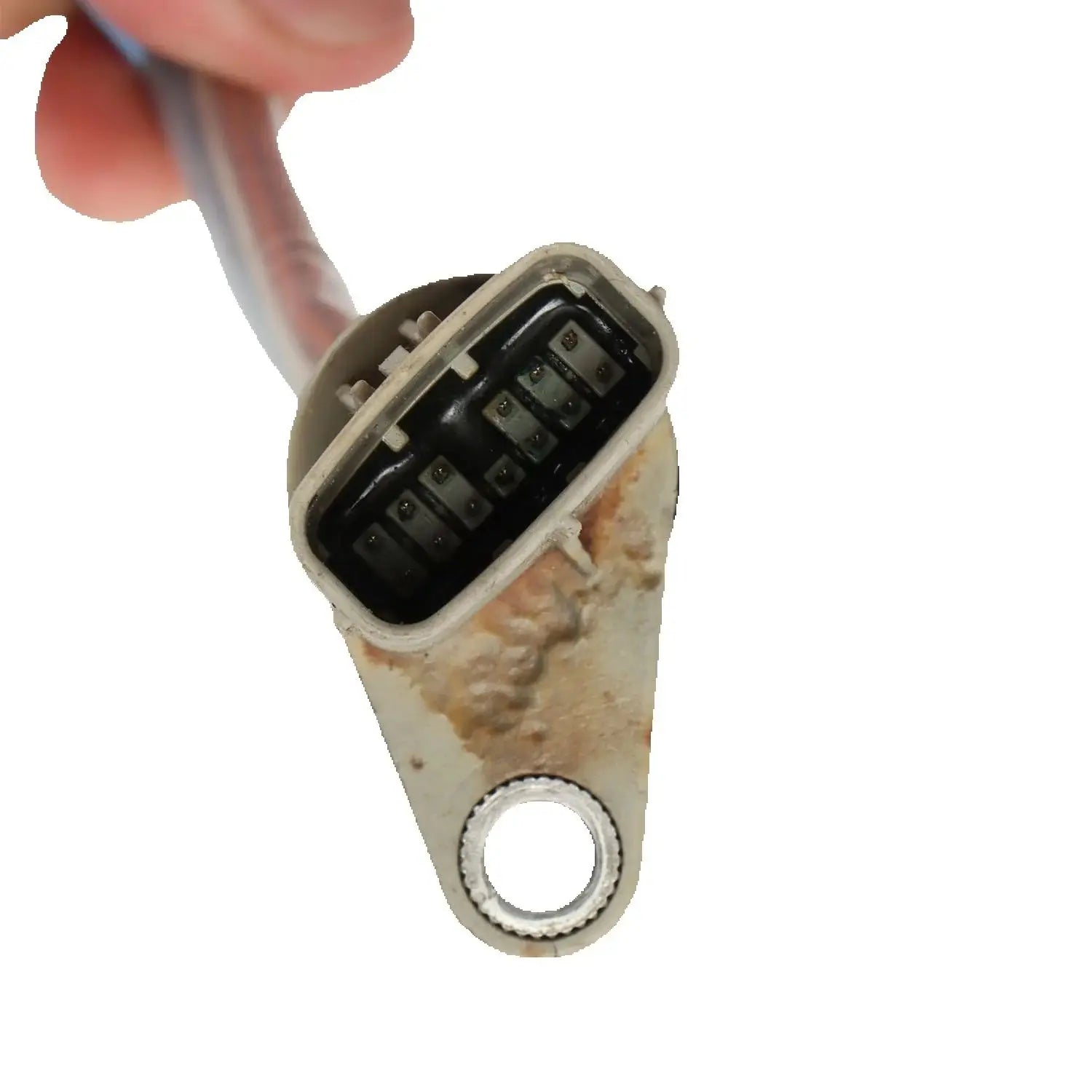

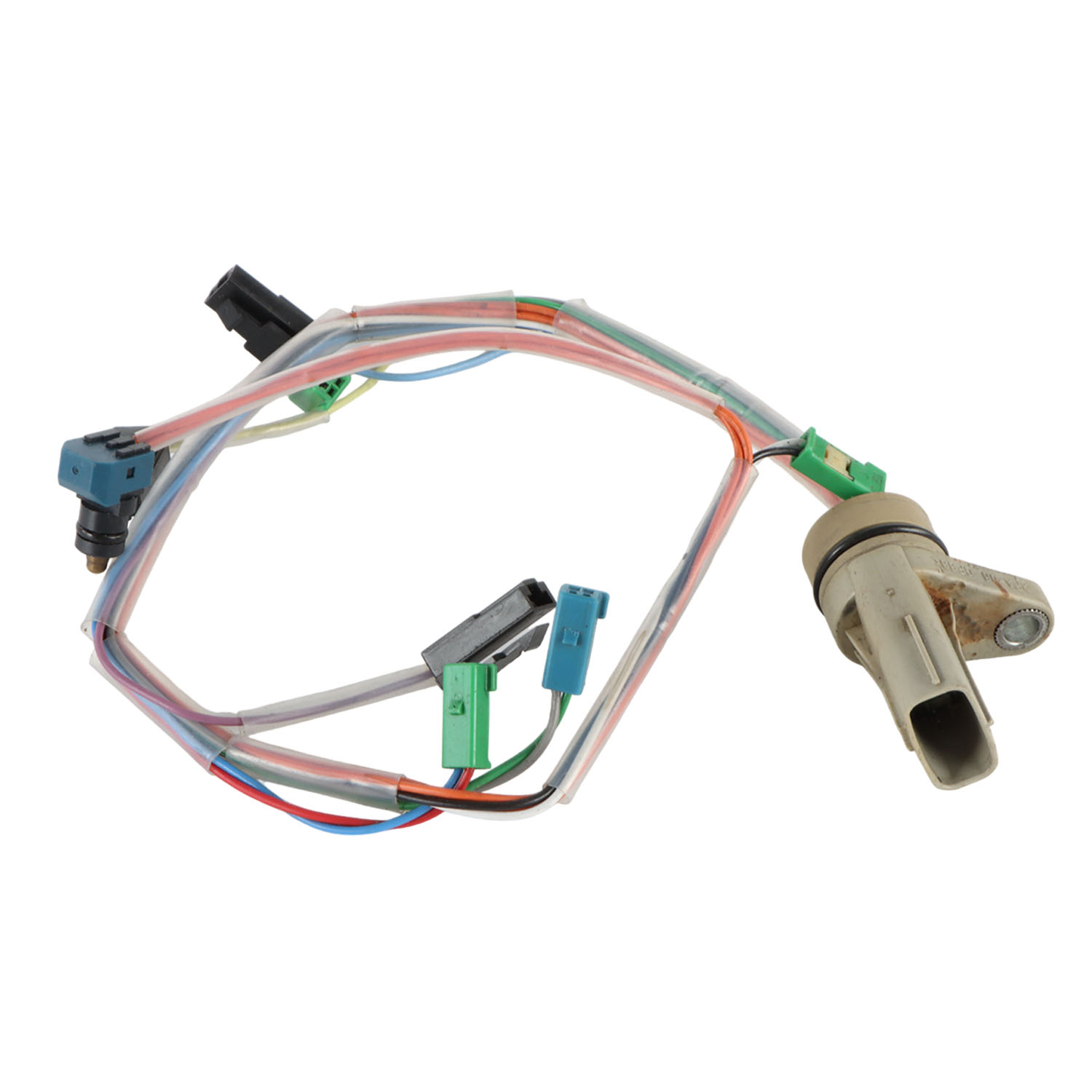

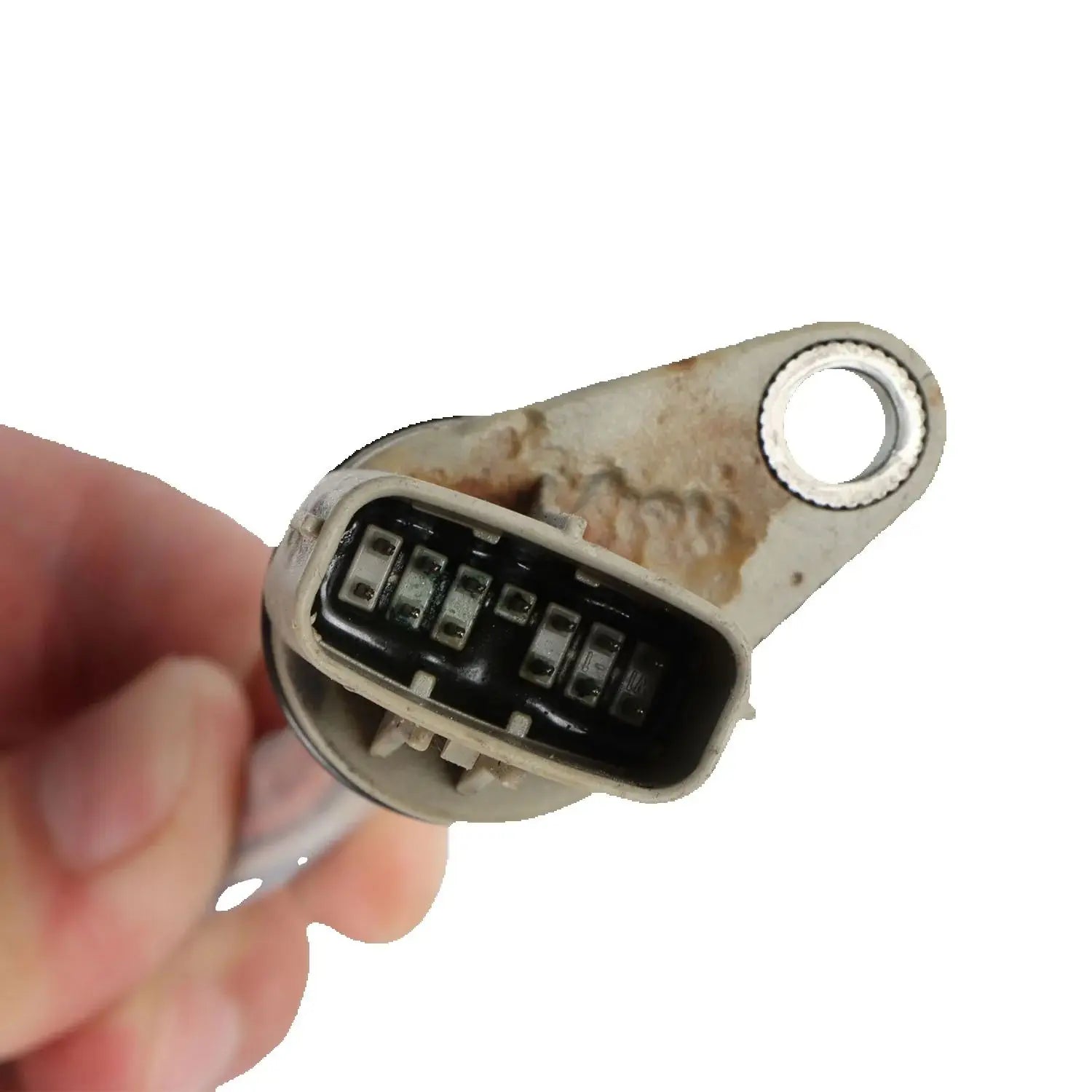

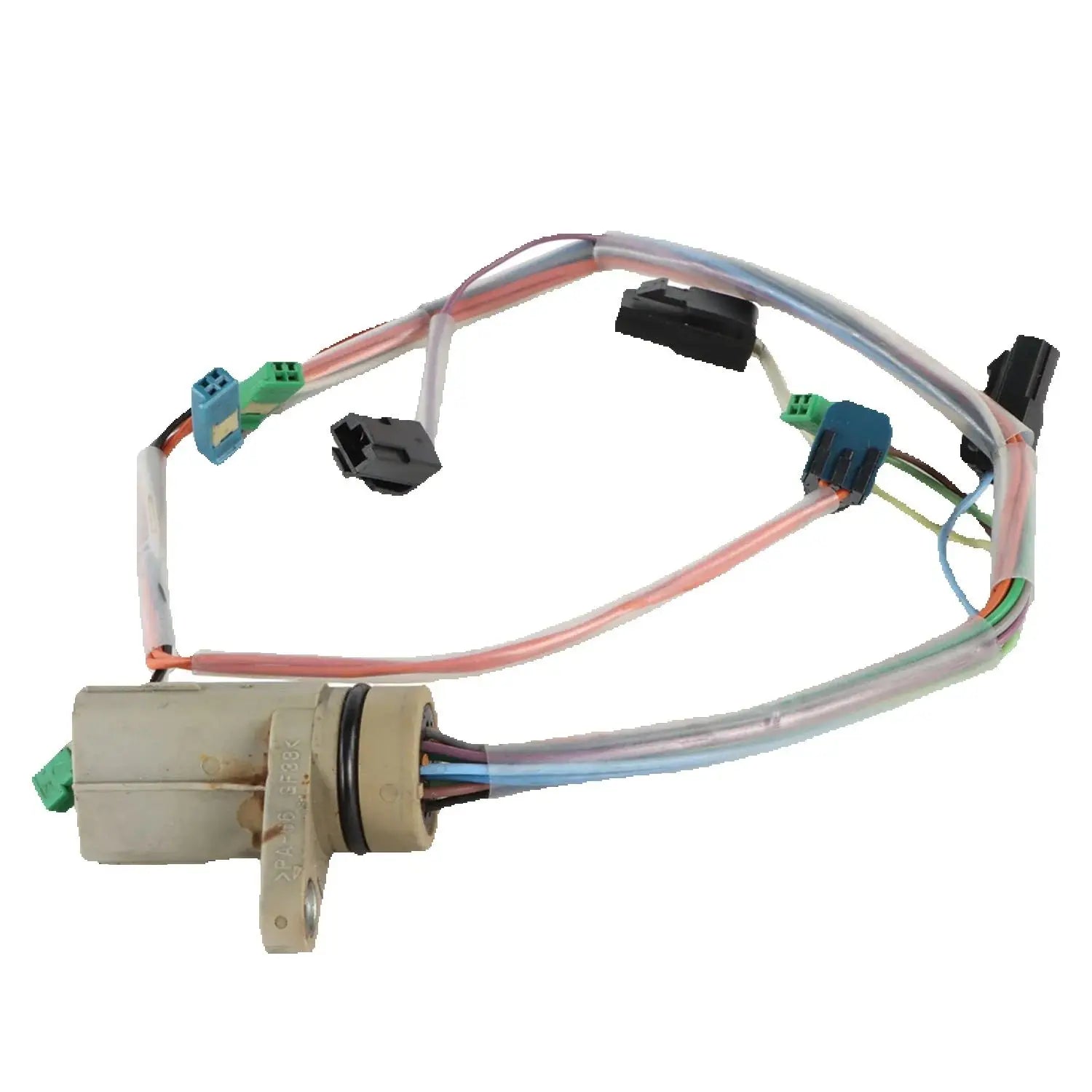

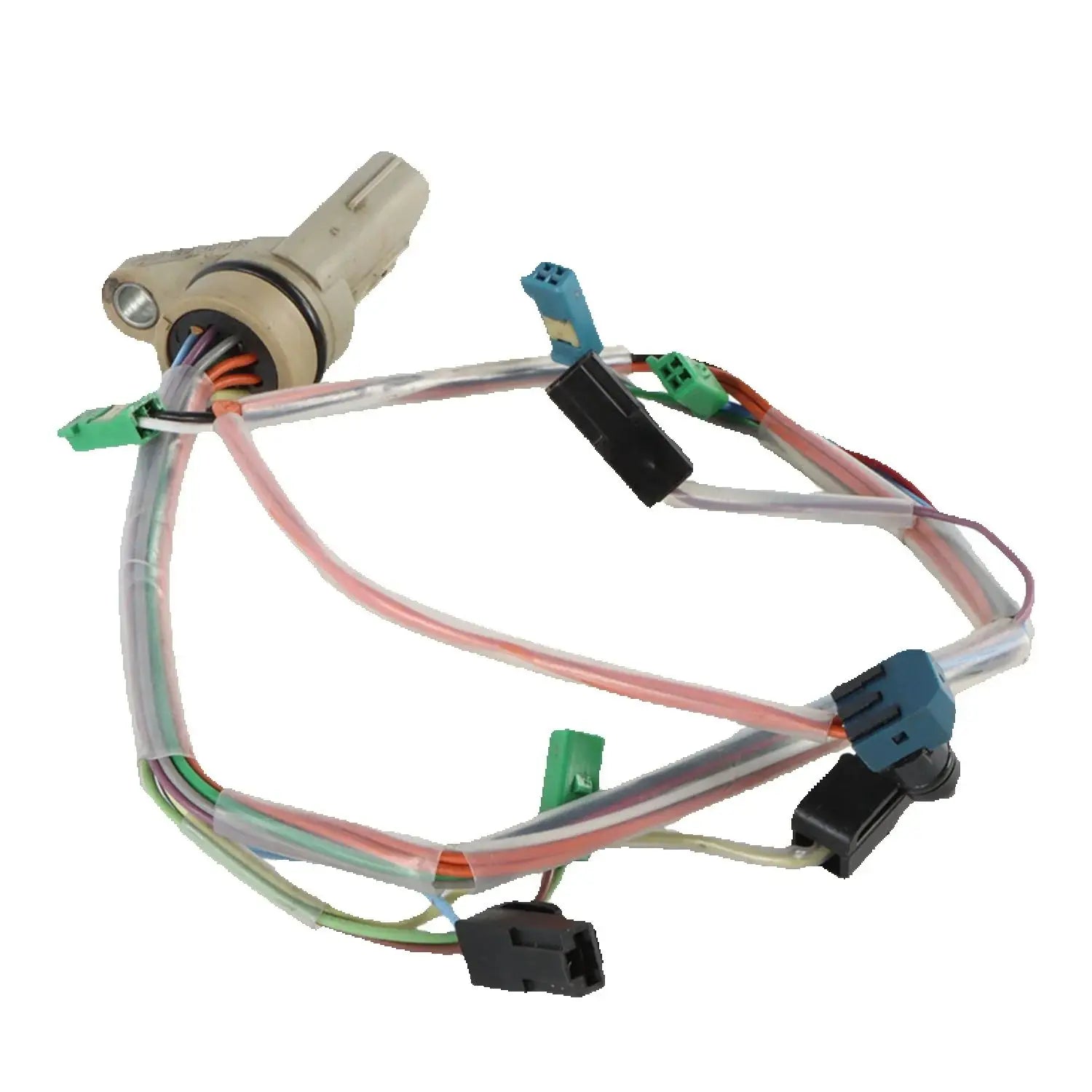

Auto Transmission Solenoid Wire Harness FOR Lexus U151 U151E U250 U250E U250F

Package Includes:

• Transmission Solenoid Wire Harness*1

OEM/Cross Reference Part Number:

• U151

• U250

• U151E

• U250E

• U250F

Compatible Vehicles

• fit for LEXUS ES250 2006-2006 5 SP FWD V6 2.5L

• fit for LEXUS ES300 2006-2006 5 SP FWD V6 3.0L

• fit for LEXUS RX330 2003-2006 5 SP F/AWD V6 3.0L

• fit for LEXUS RX330 2006-2008 5 SP F/AWD V6 3.3L

• fit for LEXUS RX350 2007-2008 5 SP F/AWD V6 3.3L

• fit for PONTIAC VIBE 2008-2009 5 SP F/AWD L4 1.8L 2.4L

• fit for TOYOTA ALPHARD 2008-2008 5 SP F/AWD V6 3.0L

• fit for TOYOTA AVALON 2006-2007 5 SP FWD V6 3.5L

• fit for TOYOTA AVENSIS 2003-2008 5 SP F/AWD L4 2.4L

• fit for TOYOTA CAMRY 2006-2006 5 SP FWD V6 3.0L 3.3L

• fit for TOYOTA CAMRY 2008-2008 5 SP FWD L4 2.4L

• fit for TOYOTA CAMRY 2004-2004 5 SP FWD L4 2.4L 2.5L V6 3.0L 3.5L

• fit for TOYOTA COROLLA 2007-2007 5 SP FWD L4 2.4L

• fit for TOYOTA HARRIER 2003-2008 5 SP F/AWD V6 3.0L 3.5L

• fit for TOYOTA HIGHLANDER 2004-2008 5 SP F/AWD V6 3.3L 3.5L

• fit for TOYOTA HIGHLANDER 2007-2007 5 SP F/AWD L4 2.5L V6 3.5L

• fit for TOYOTA IPSUM 2001-2003 5 SP FWD L4 2.0L

• fit for TOYOTA KLUGER V 2003-2007 5 SP F/AWD V6 3.0L 3.3L

• fit for TOYOTA MARK X 2007-2007 5 SP FWD L4 2.4L

• fit for TOYOTA RAV4 2006-2008 5 SP F/AWD V6 3.5L

• fit for TOYOTA RAV4 2005-2005 5 SP F/AWD V6 3.5L

• fit for TOYOTA SIENNA 2004-2009 5 SP F/AWD V6 3.3L 3.5L

• fit for TOYOTA SOLARA 2004-2008 5 SP FWD V6 3.3L

• fit for TOYOTA SOLARA 2006-2008 5 SP FWD L4 2.4L

• fit for TOYOTA BANGUARD 2007-2007 5 SP F/AWD V6 3.5L

• fit for TOYOTA WINDOM 2001-2005 5 SP FWD V6 2.5L 3.0L

Installation Information

1. Disconnect the vehicle battery before commencing work.

2. Locate the transmission control module (TCM) or powertrain control module (PCM).

3. Access the existing wire harness connected to the transmission solenoids.

4. Carefully disconnect the old wire harness from the solenoids and the TCM/PCM.

5. Connect the new transmission solenoid wire harness to the respective solenoids, ensuring proper alignment and secure connection.

6. Reconnect the new wire harness to the TCM/PCM, verifying all pins are correctly seated.

7. Reassemble any components or panels that were removed for access.

8. Reconnect the vehicle battery.

9. Start the engine and check for proper transmission operation and any associated diagnostic trouble codes.

Important Notes

• - Ensure compatibility with your vehicle's specific make model and transmission type before purchasing.

• - Verify that the part number matches the existing component or the required replacement.

• - Professional installation is recommended if you are unfamiliar with automotive electrical systems or transmission components.
