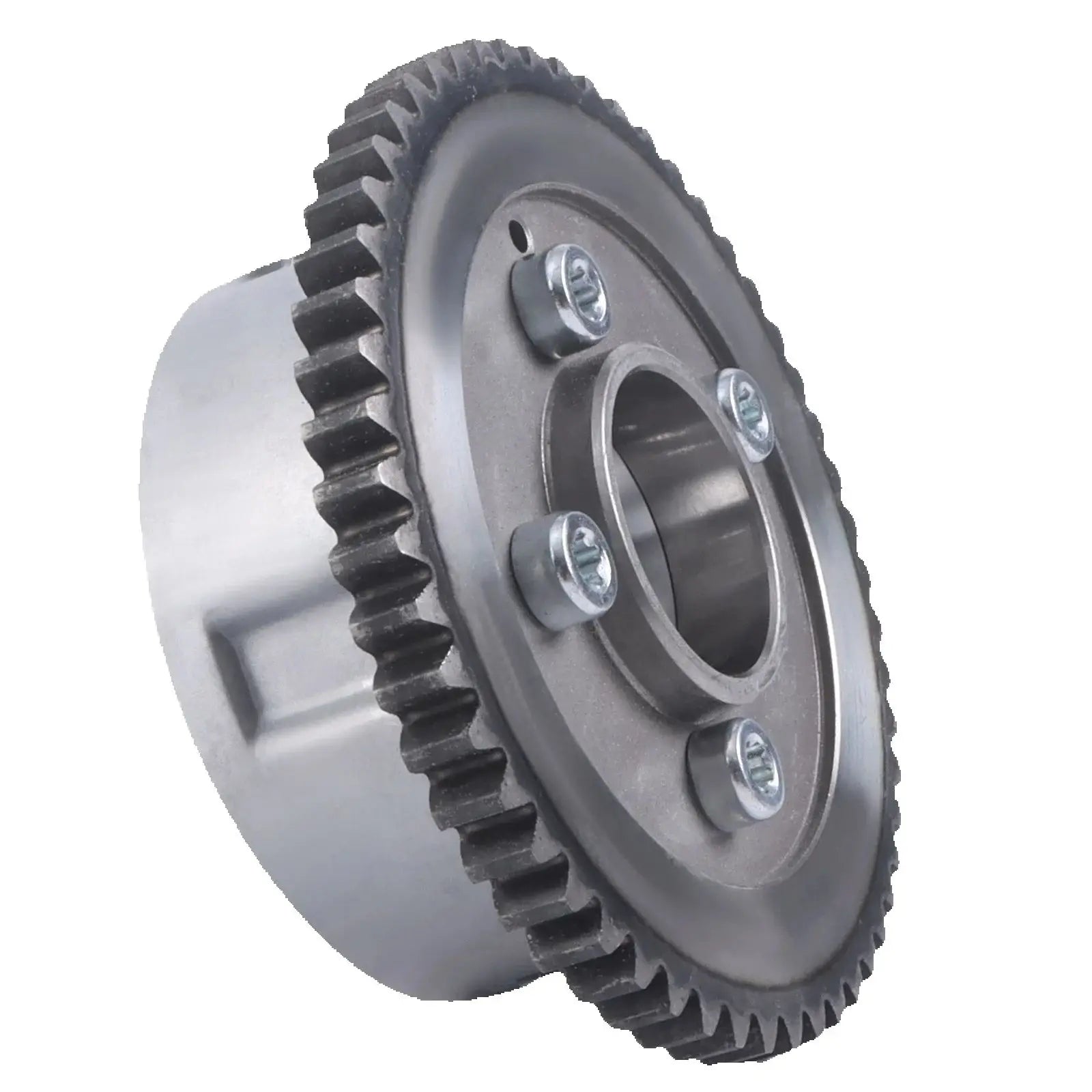

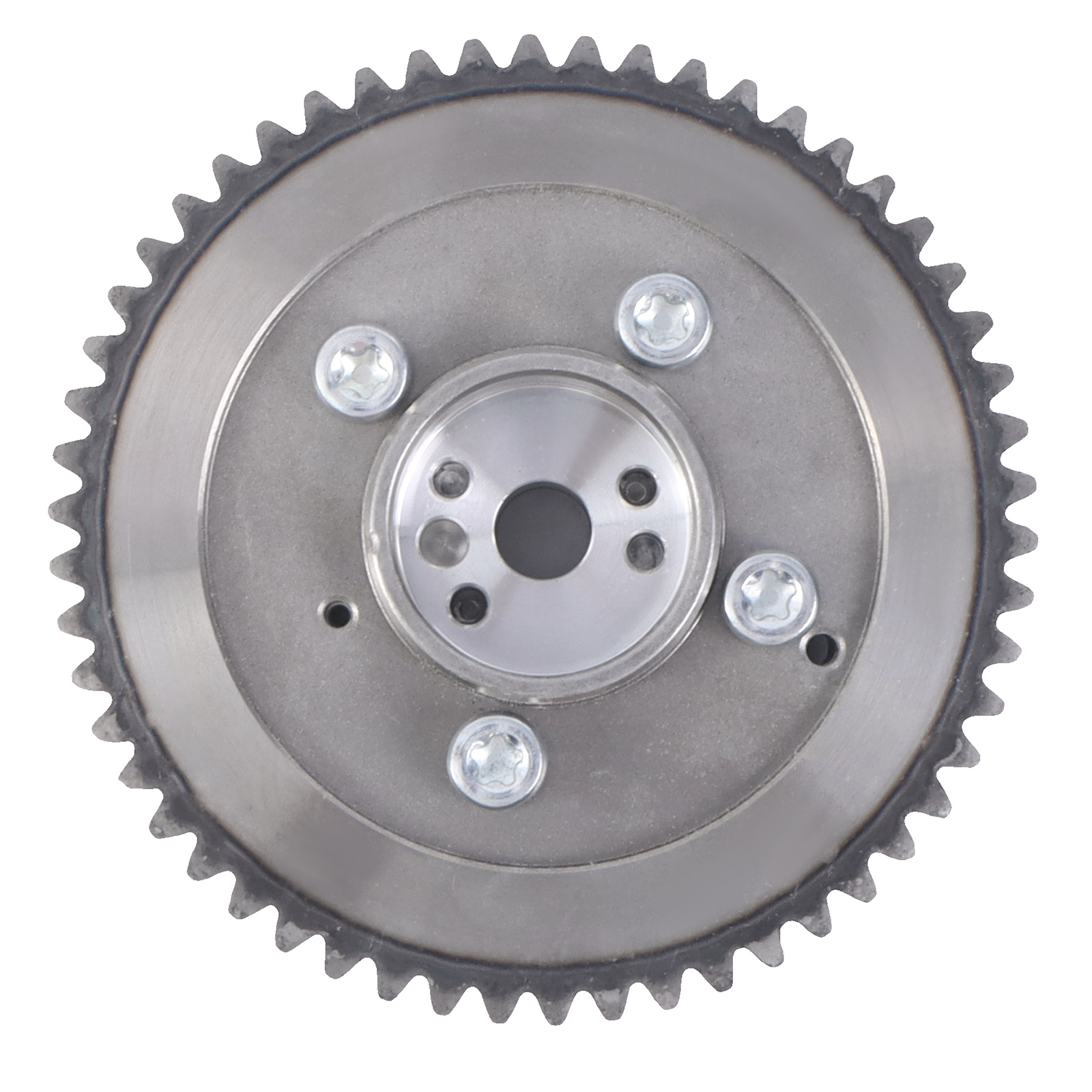

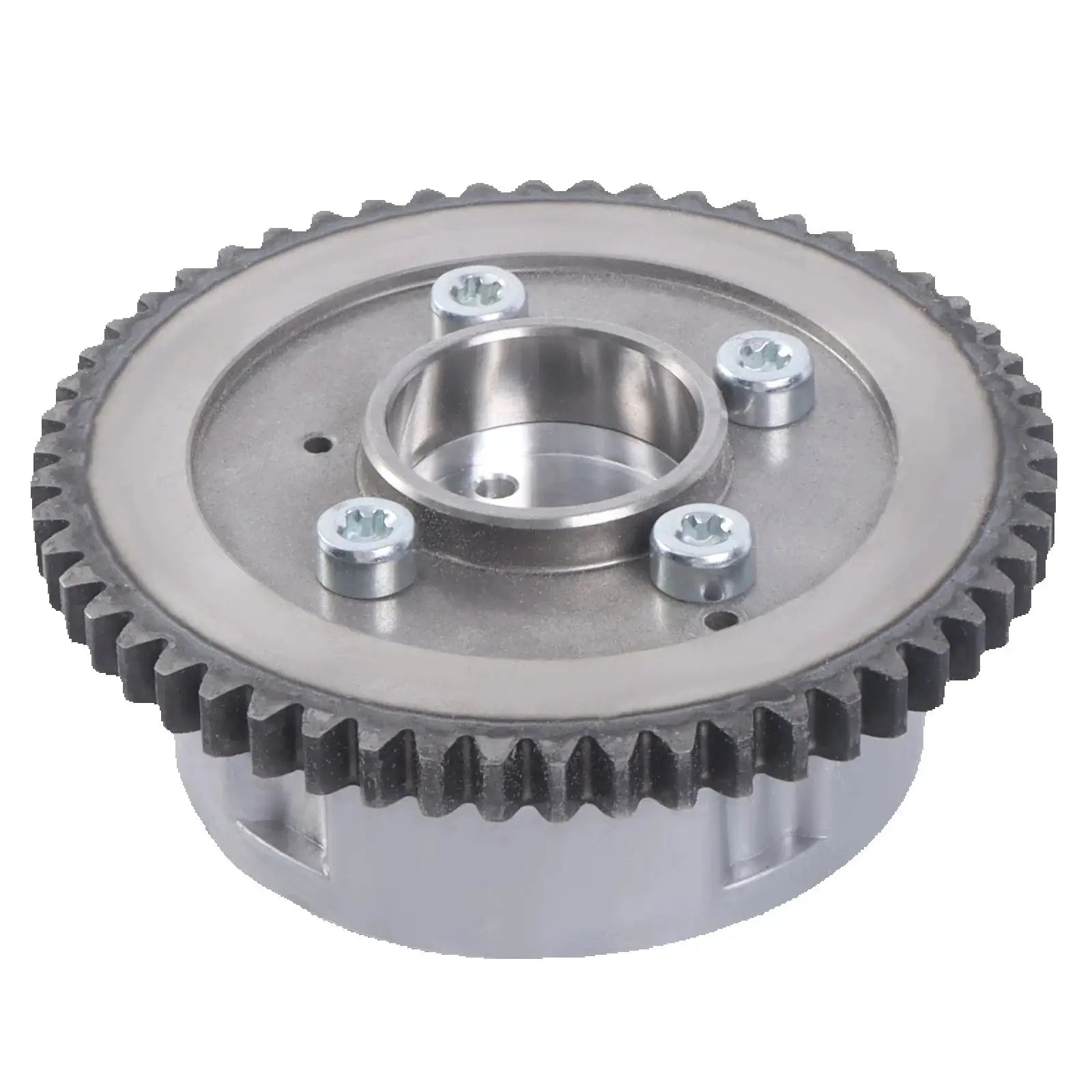

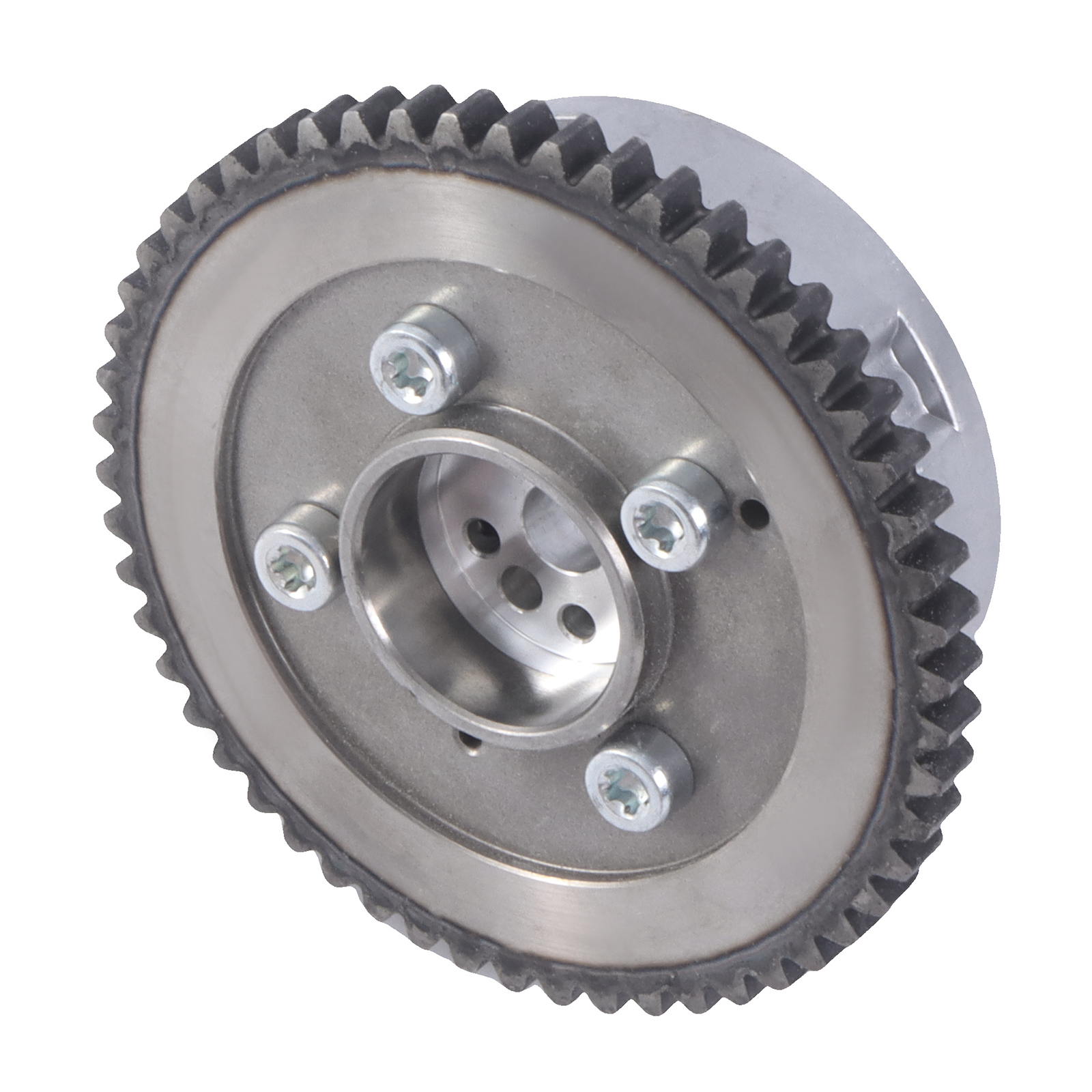

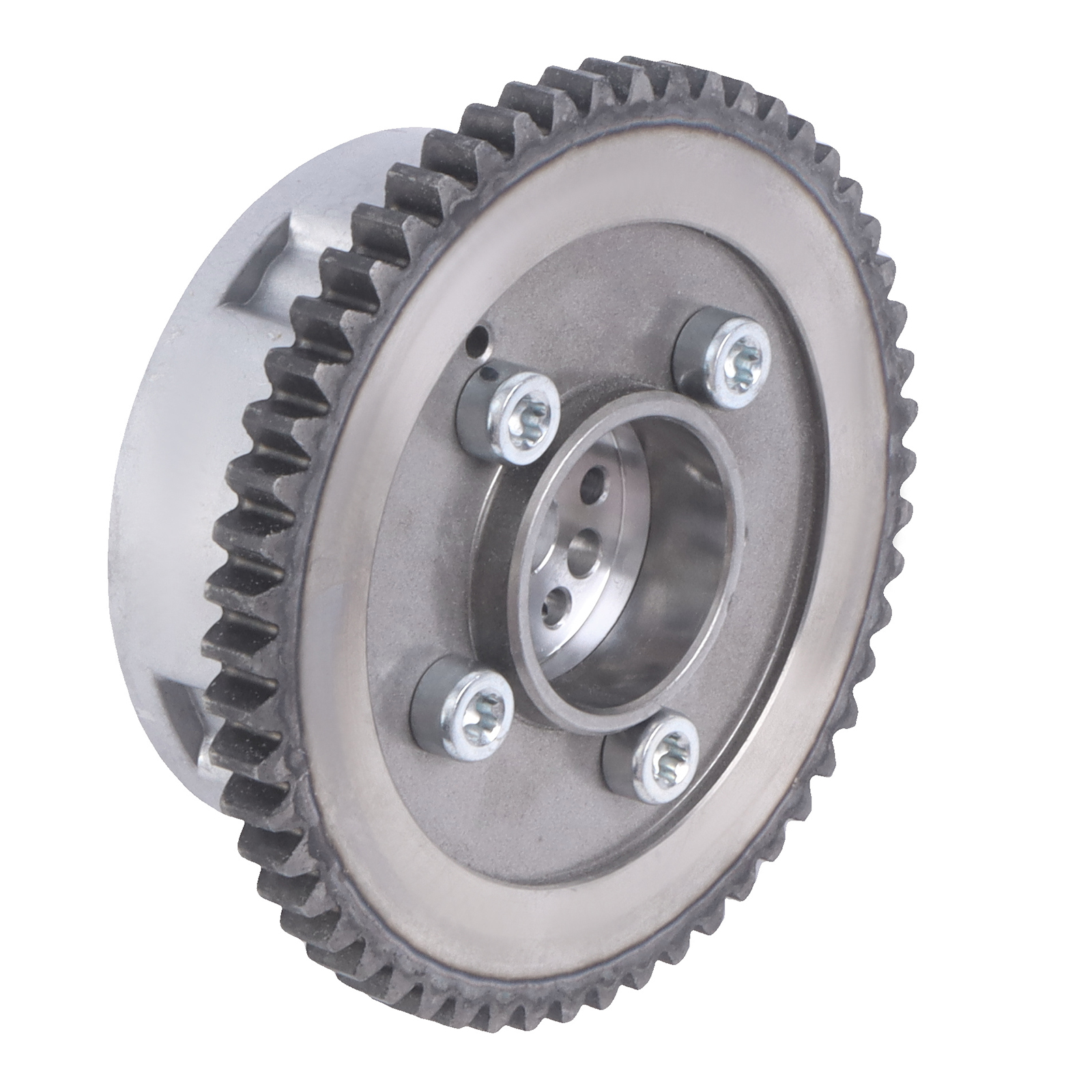

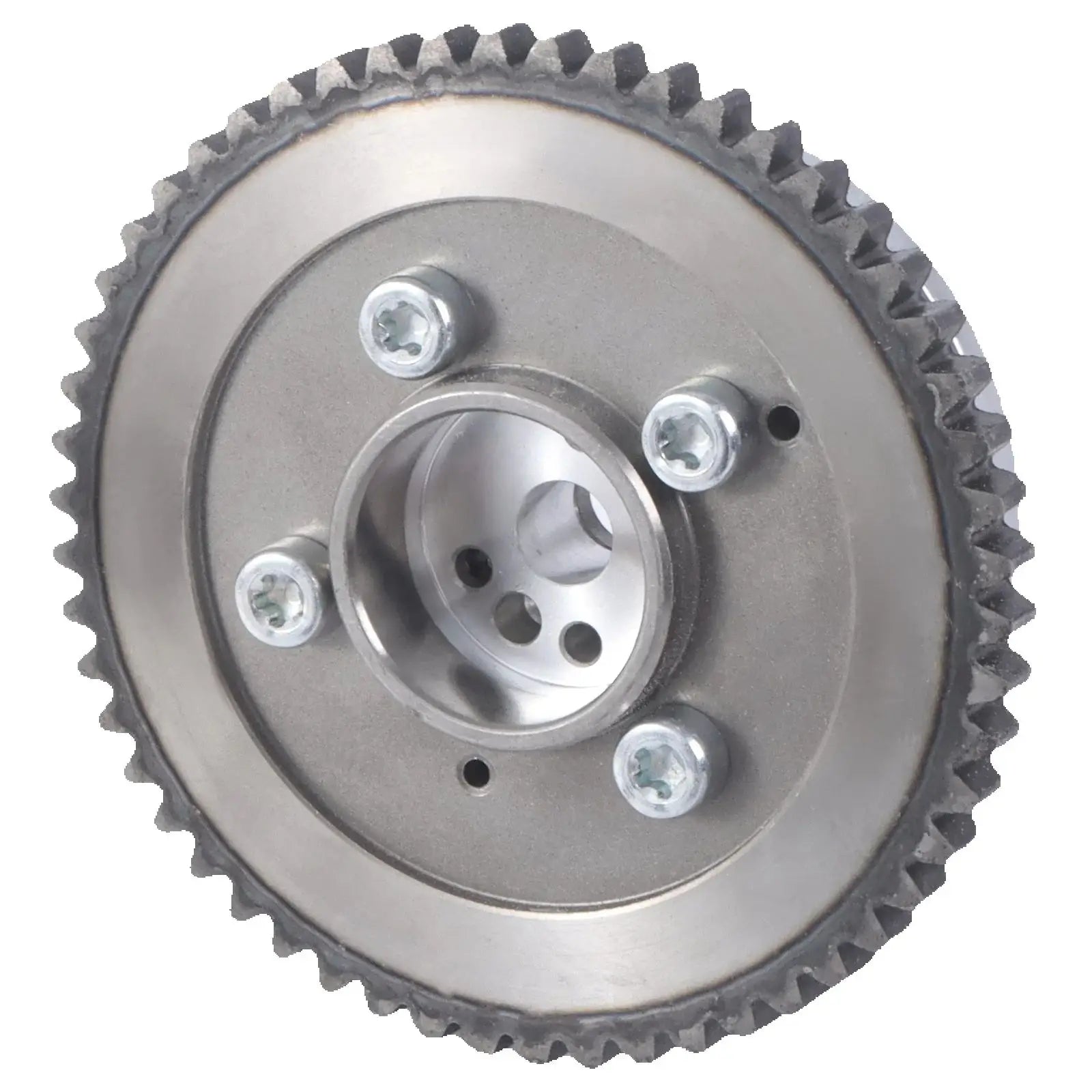

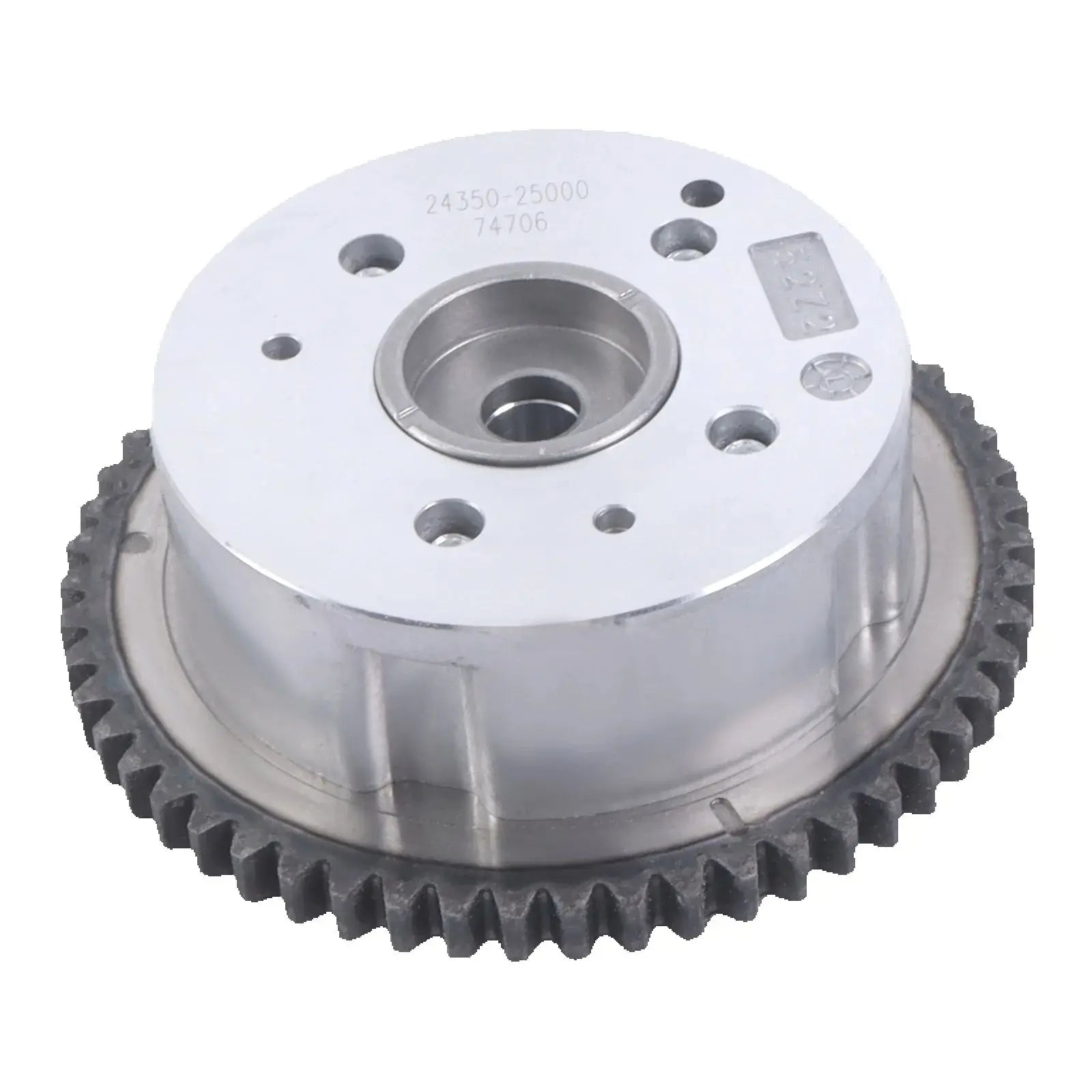

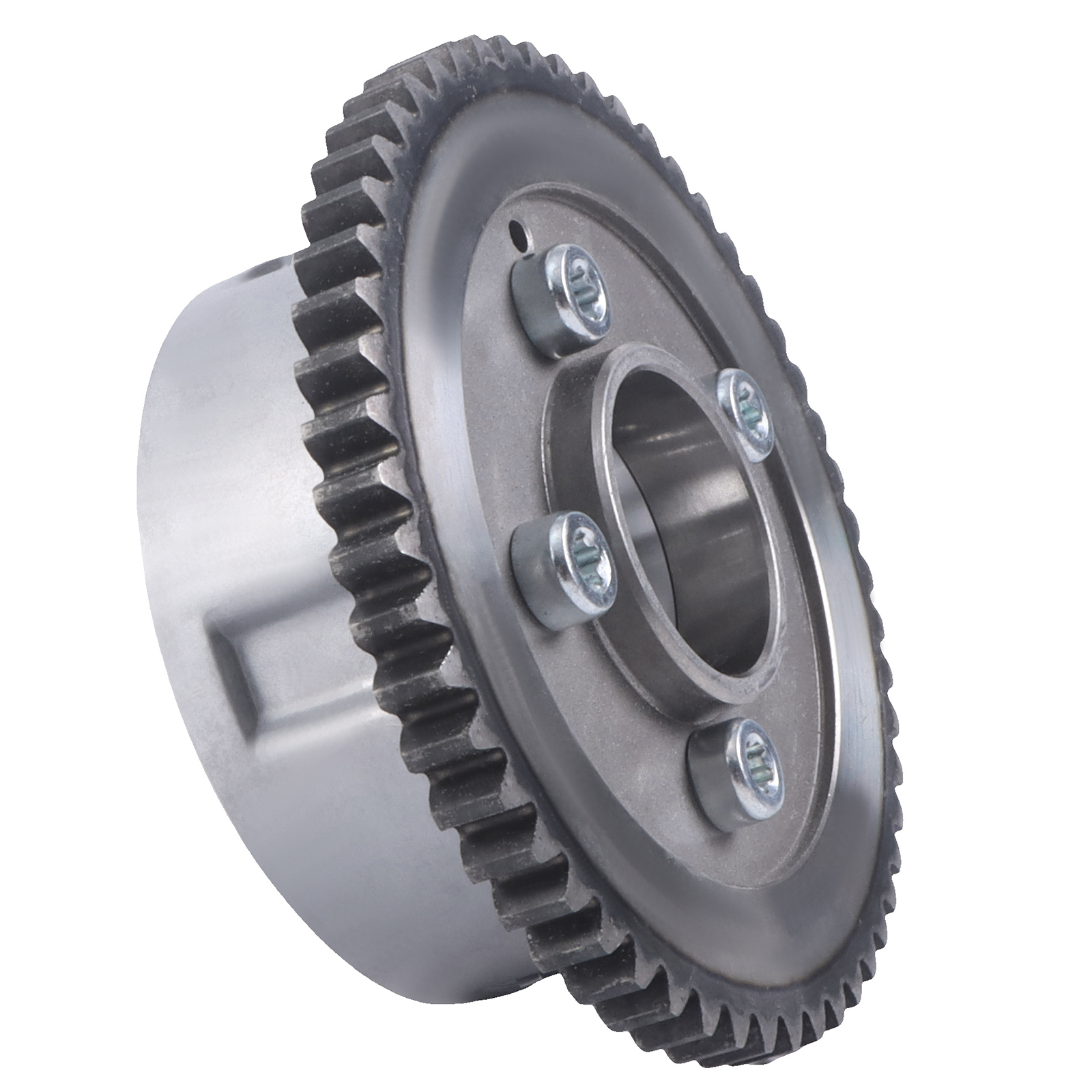

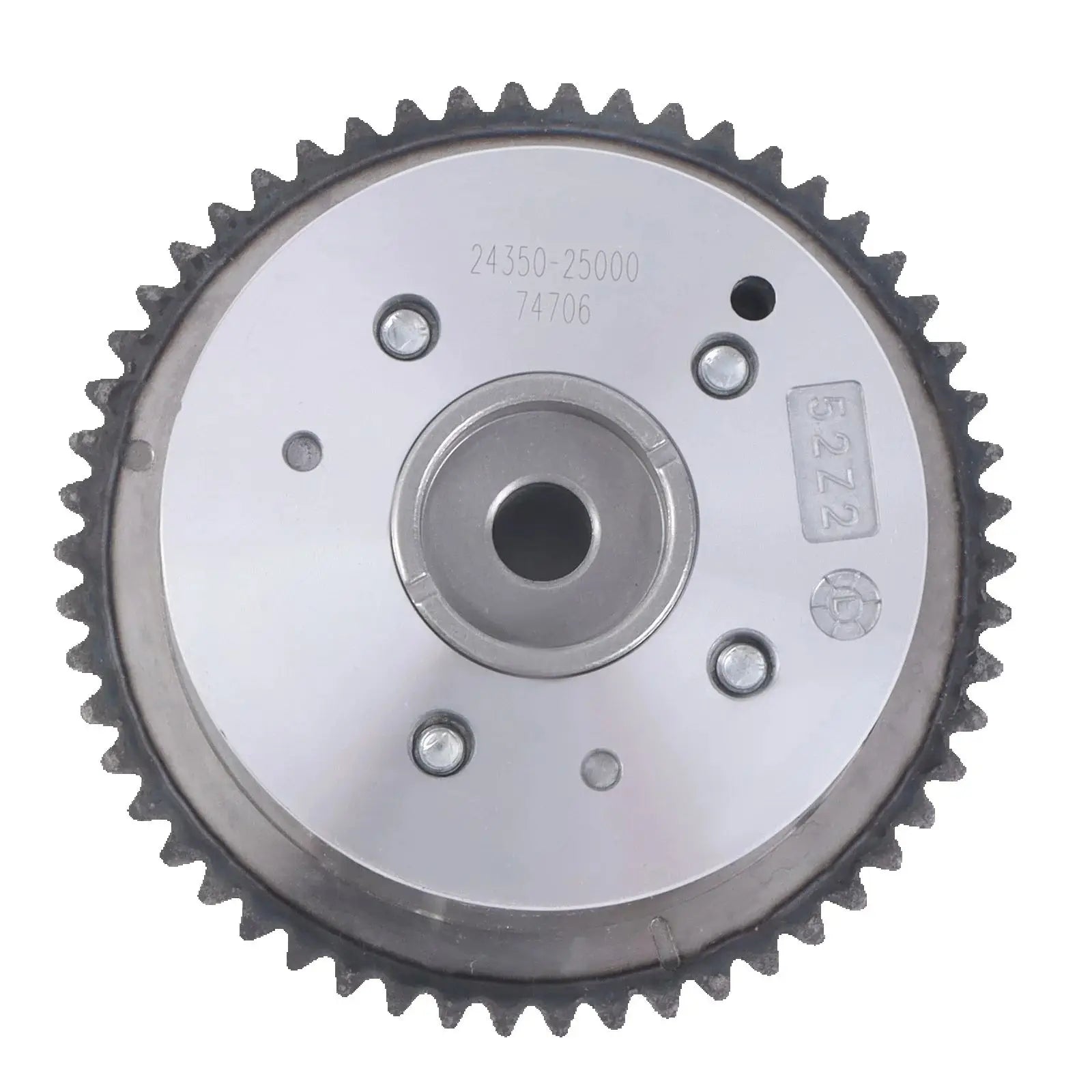

Camshaft Gear G4KG 24350-25000 FOR Hyundai iload iMax TQ Travel Cargo 2.4L 2.5L Car Access

• Part Number: G4KG 24350-25000

Package Includes:

• Camshaft Gear *1

OEM/Cross Reference Part Number:

• 24350-25000

• G4KG

Compatible Vehicles

• fit for Hyundai iload 2013-2023 TQ Cargo 2.5 CRDi RWD Diesel 2.5L (D4CB)

• fit for Hyundai iMax 2013-2019 TQ Travel 2.4 i RWD Petrol 2.4L (G4KC,G4KG)

• fit for Hyundai iMax 2015-2016 TQ Travel 2.5 CRDi RWD Diesel 2.5L (D4CB)

Installation Information

1. Disconnect the battery negative terminal.

2. Remove engine covers and accessories obstructing access to the camshaft gear.

3. Set the engine to Top Dead Center (TDC) for cylinder #1.

4. Secure the camshaft using a suitable tool to prevent rotation.

5. Loosen and remove the mounting bolt of the existing camshaft gear.

6. Remove the old camshaft gear from the camshaft.

7. Install the new camshaft gear onto the camshaft, ensuring proper alignment with the camshaft keyway (if applicable).

8. Install and tighten the new mounting bolt to the manufacturer's specified torque.

9. Reinstall removed components and connect the battery negative terminal.

10. Verify engine timing and check for any abnormalities during operation.

Important Notes

• - Ensure compatibility with your vehicle's specific engine code and model year before purchase.

• - Professional installation is recommended.

• - Timing marks must be precisely aligned during installation to prevent engine damage.
