Car AUX Activator For BMW 5 Series E60 E61 E63 E64 CCC 2006 2007 2008 2009 2010 Fit For Or

GXGLNAV Aux Activator E60 Aux Adapter Open The Aux Audio of The Original Car Radio For BMW E60 E61 E63 E64 CCC 2003 - 2010

If you have any other questions, please feel free to ask us

1.Product Features
Use the easiest way to quickly activate the AUX audio input of the original car, and then input your mobile phone music into the car.The AUX Activator activates AUX directly, solving the problem of the E60 not having AUX sound when an Android screen is installed. It no longer requires the use of an FM transmitter or fibre optic box. Connecting the AUX Activator directly solves the problem of no sound.
2.Supported Models

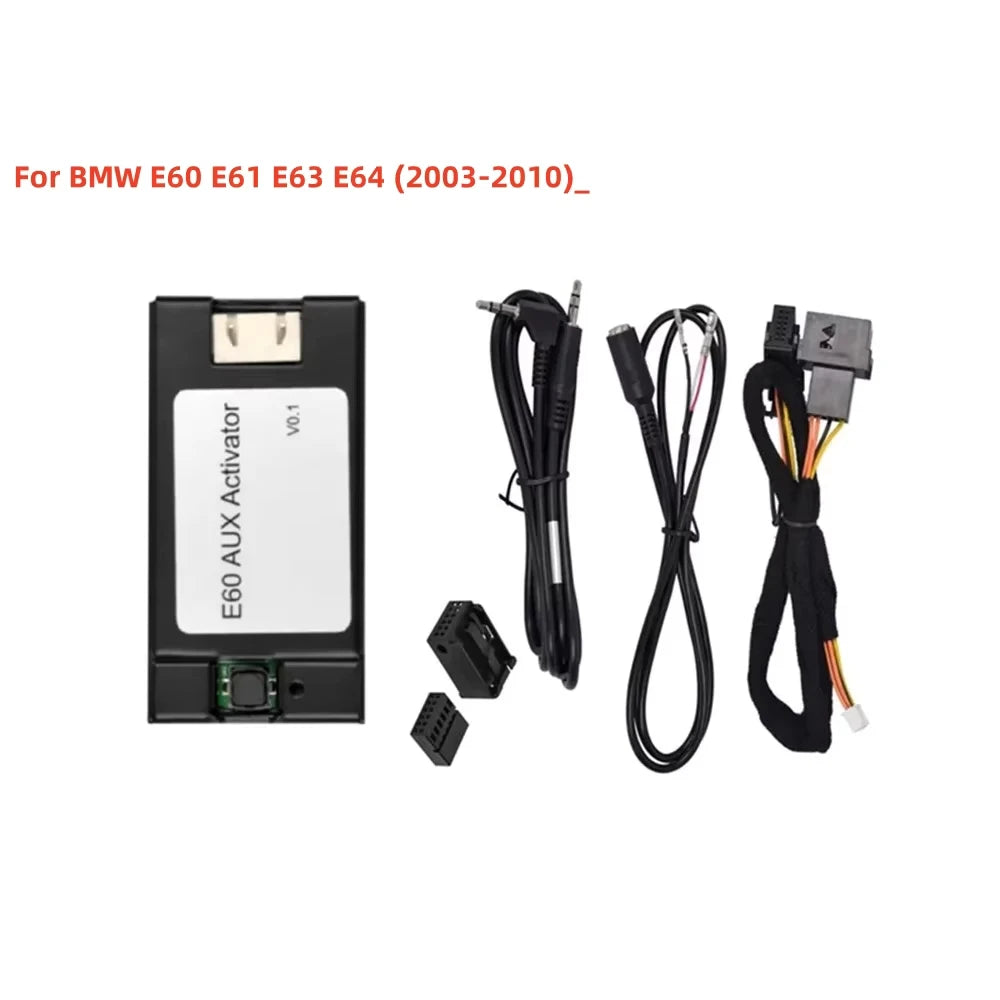

For BMW E60 E61 E63 E64 (2003-2010) Genuine BMW CCC Car without AUX
3.Product Use
After this product successfully activates the original car's AUX function, no other vehicles can be activated.
Due to its special nature, this product cannot be returned after shipment.

Function Introduction

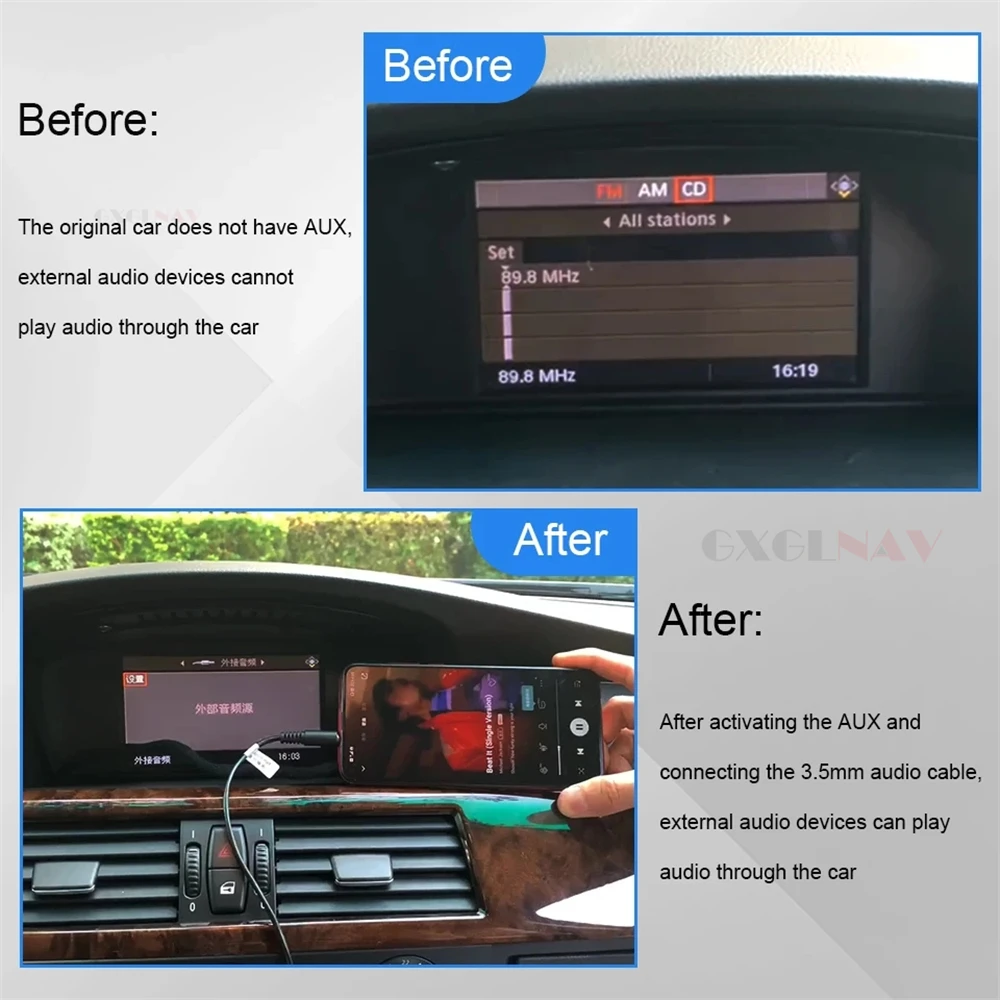

When there is no AUX function in the original car, external audio devices cannot play audio through the car stereo.

The AUX function can be successfully activated when you use our products. With the AUX function, you only need to connect a 3.5MM audio cable, the external audio device can play sound through the car stereo.

IMPORTANT TIP

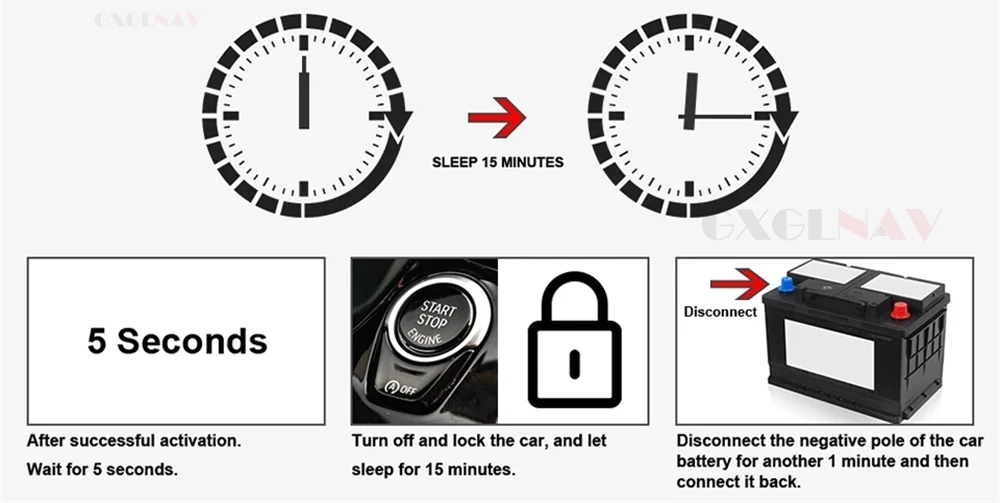

After activation, keep connected, wait for 5 seconds, then turn off and lock the car and let it sleep for 15 minutes. Disconnect the negative pole of the car battery for another 1 minute and then connect it back. Then get on the car and install other steps!

Note : Once activated, stay connected, wait 5 seconds, then turn off the engine and lock the car and let it sleep for 15 minutes. Disconnect the negative terminal of the car battery for another 1 minute, and then connect it back. Then get on and install the other steps!

Over all Installation Steps

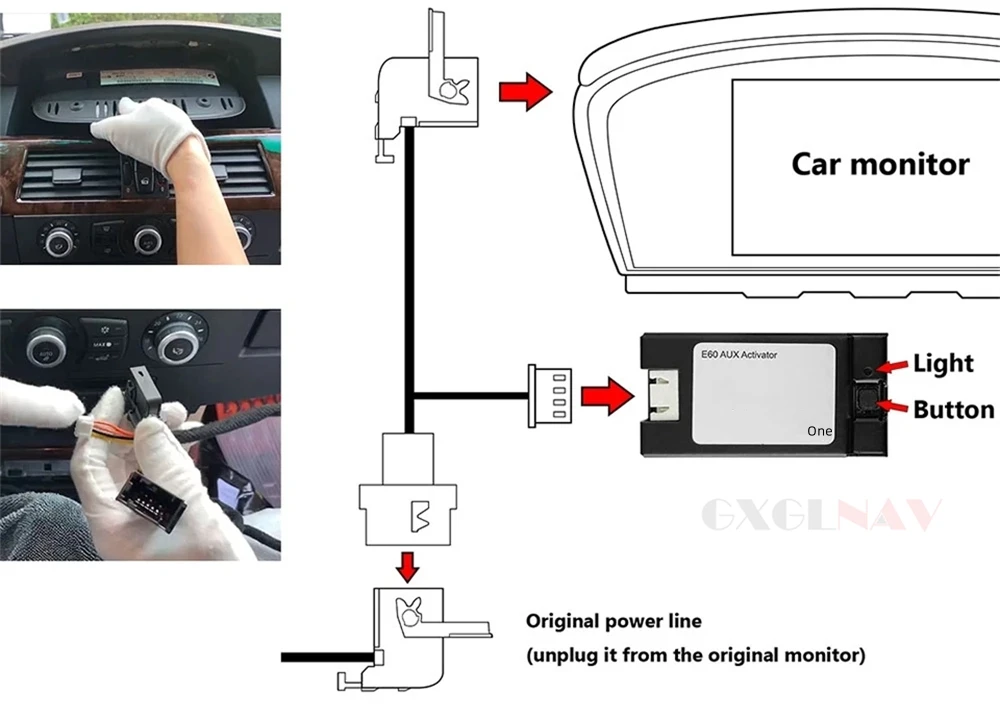

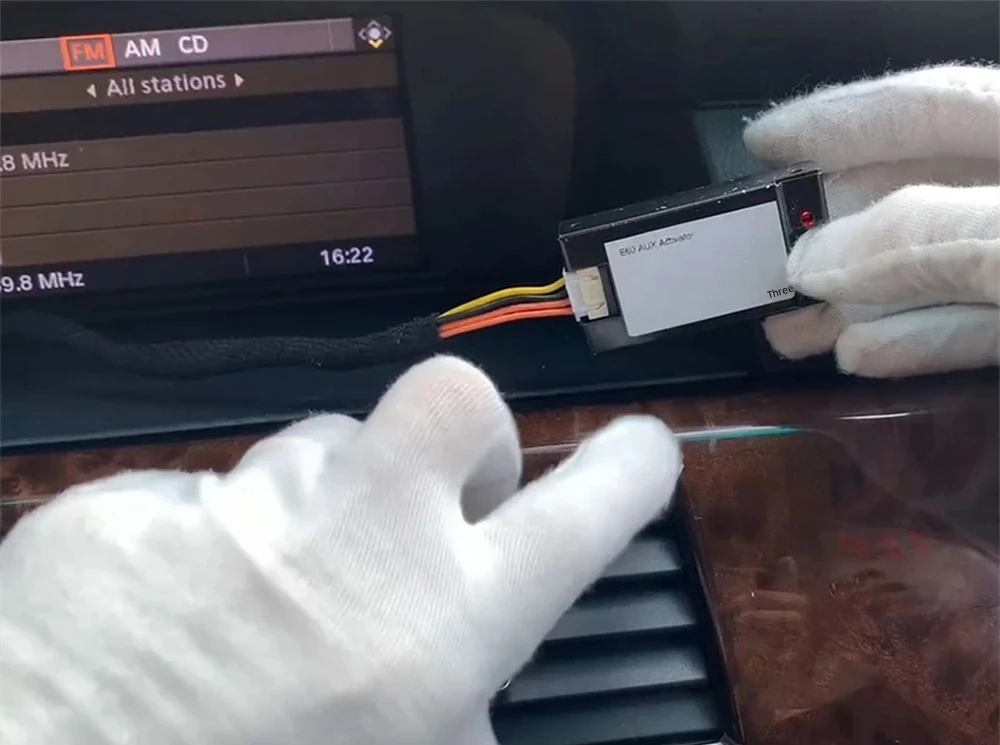

Step 1: Remove the original car's display screen,and connect the wires as shown in the figure.

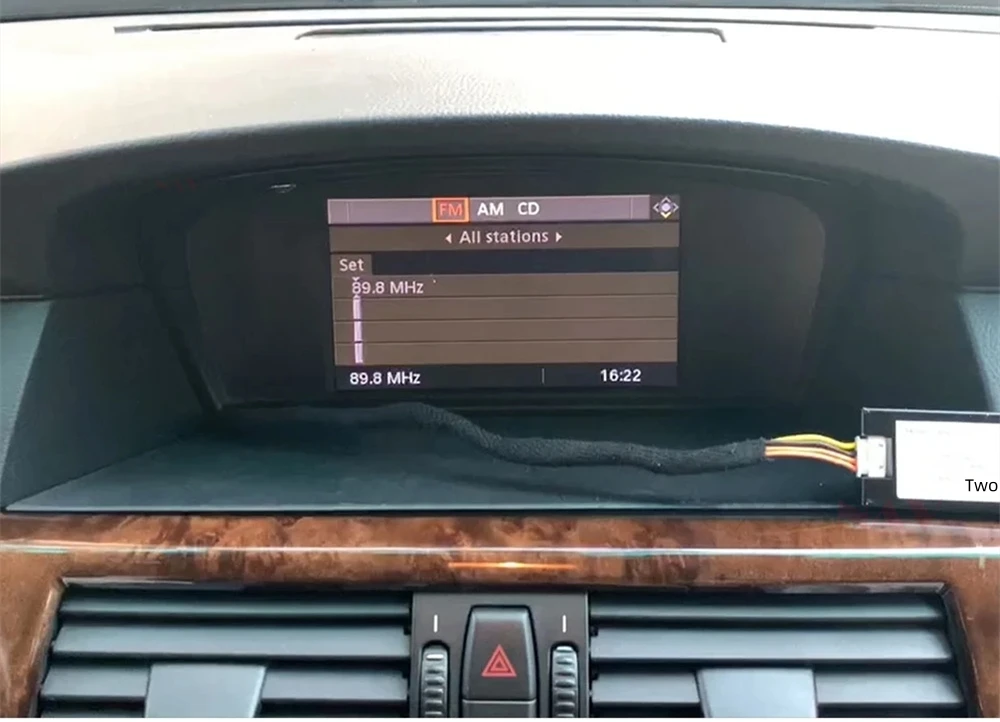

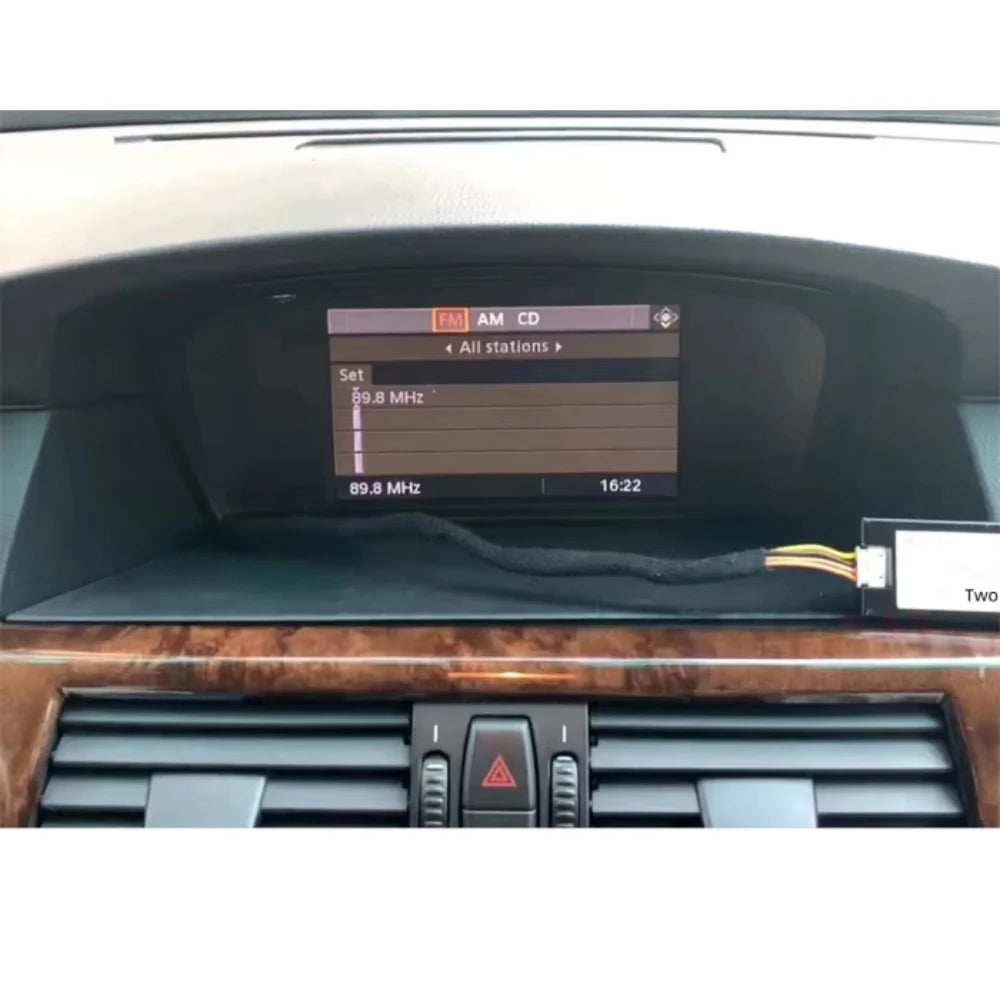

Step 2 : Start the car and place the original car display on the Entertainment interface;

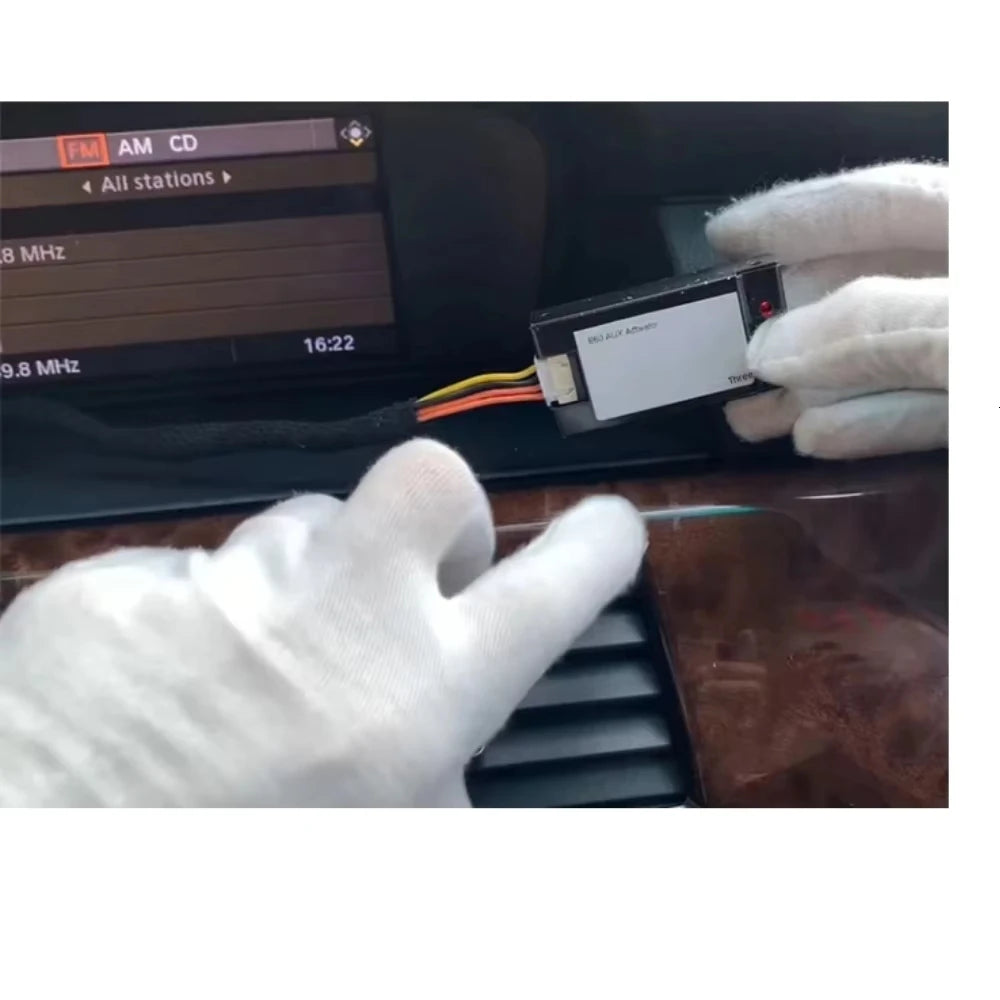

Step 3 : Press and hold the button for more than three seconds until the indicator light turns on; release the button to start activation.

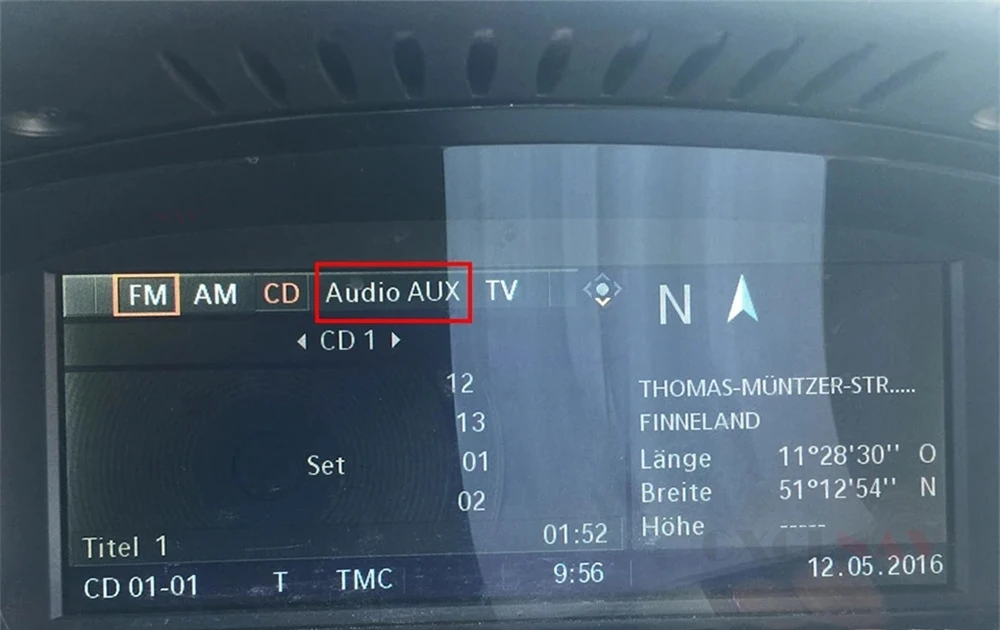

Step 4 : Activation is successful, check the original car entertainment interface, AUX Audio shows that it has been activated.

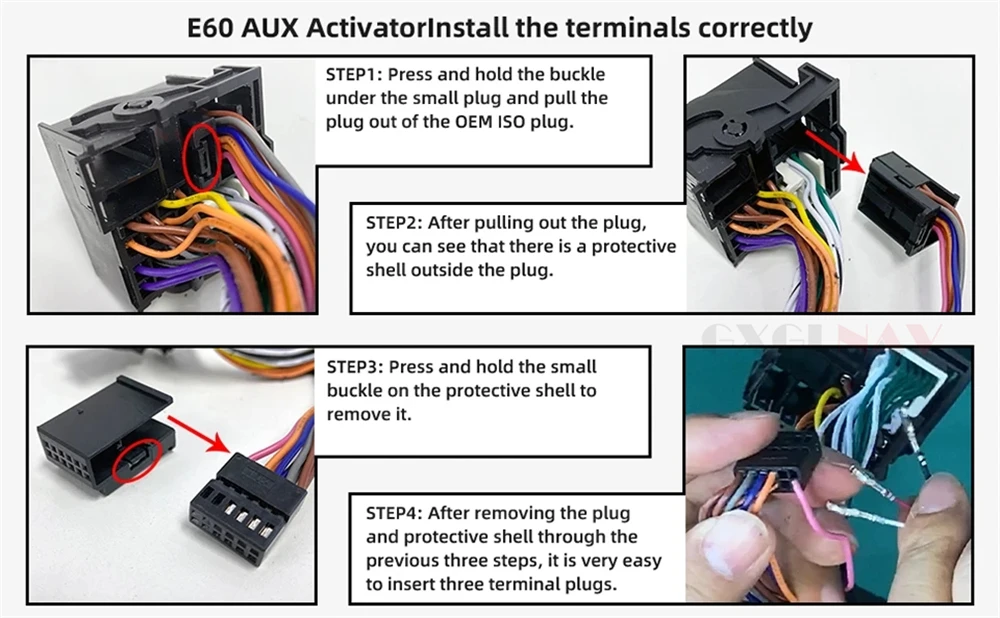

How to connect the red, white and black terminals of the E60 activator?

* If you're going to install an Android screen, make sure you don't install these three red, white and black wires!

1- Take the big plug of the OEM ISO out of the back of the radio;

2- Take the 1st socket out of the big ISO plug;

3- Take the 2nd socket out of the 1st socket;

4- Insert the red, white and black terminals into the second socket;

5- Return the second socket and the first socket to the large ISO socket;

6- Plug the big ISO socket back into the back of the OEM radio;

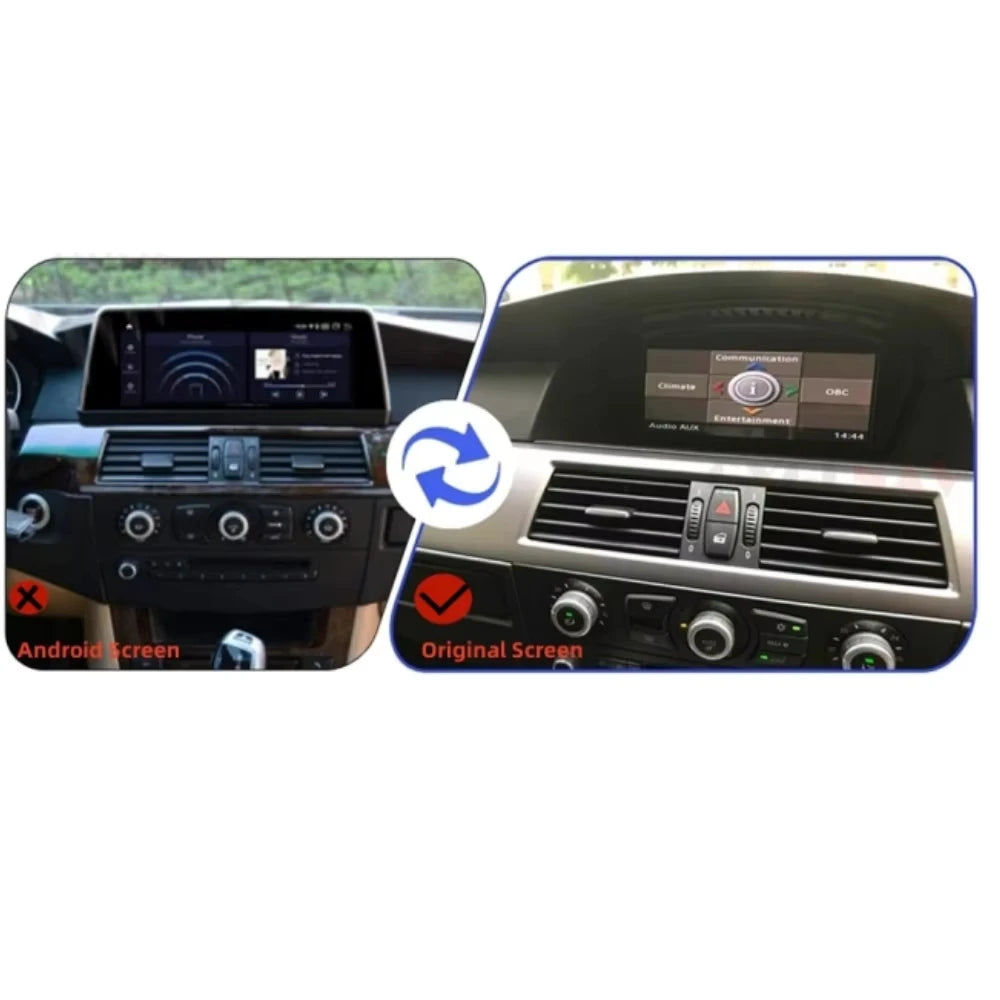

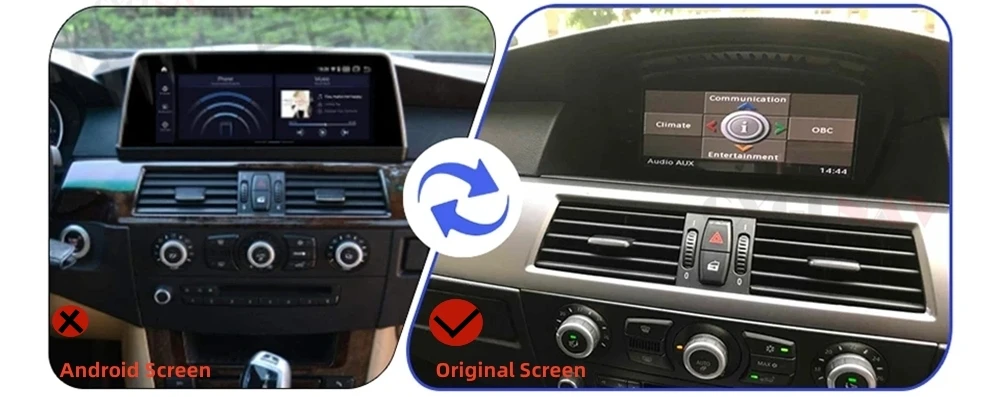

If an Android display is installed

Please activate the AUX menu before installing the Android screen to be effective.

If you have an Android screen installed, Please remove the Android screen and wiring harness. Leave it in the same state as before installation. Activate the AUX menu first. Then reinstall the Android screen. Otherwise you will not get the AUX menu.

If an Android display is installed

All Android screens with harnesses removed

Restore the original display and harness. To successfully activate the AUX menu.

Images are for reference only.
