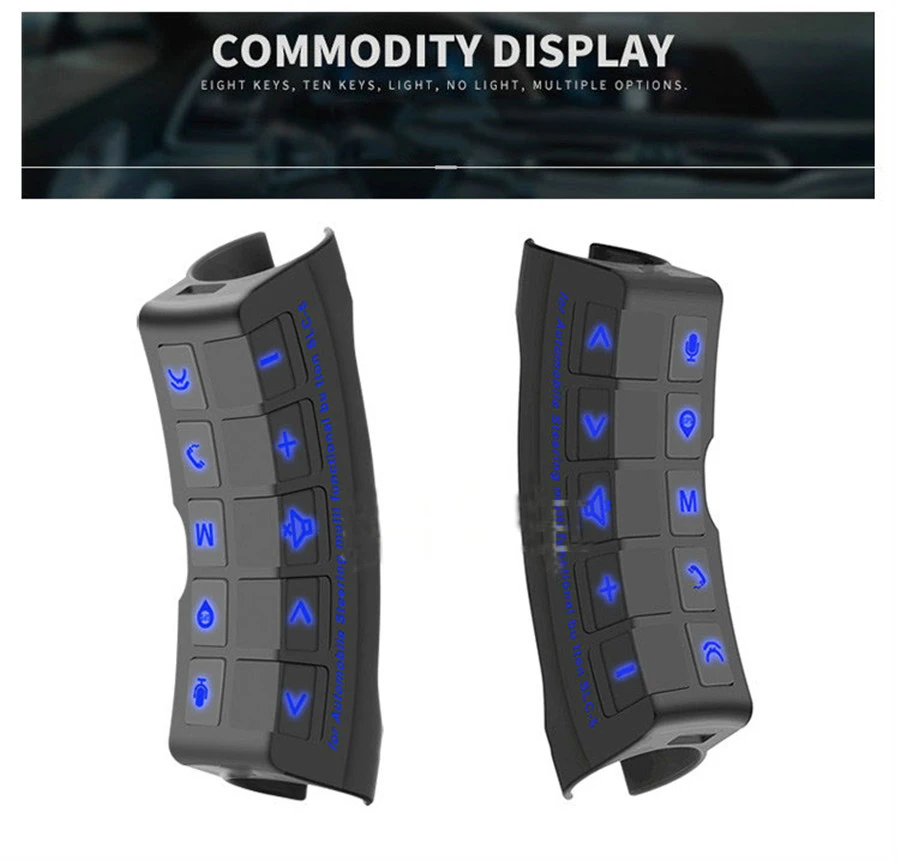

Car Steering Wheel Remote Control for 2 DIN Android Radio Player Backlight Version 10-key

Product information model: 10 key touch long bright square control

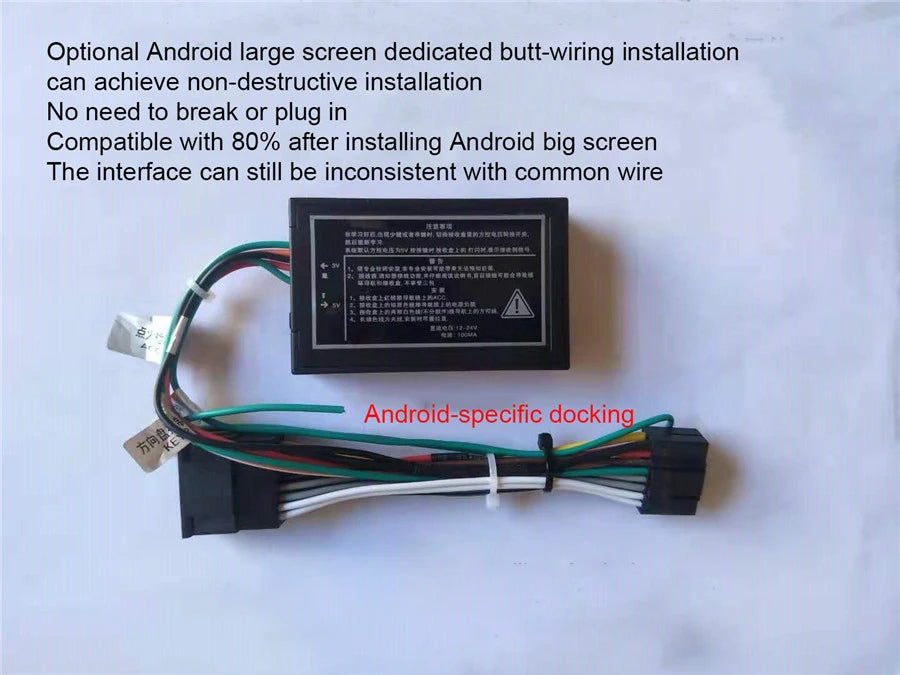

Model: With Android wiring

Lamp: Press any key to turn on the backlight.

Adaptation: Android Navigation

Transmission method: high-frequency encrypted signal+receiver

Working voltage: 12V for cars -24V for trucks

Material: Rubber comfortable and soft material

Size: 12.3 * 3.3 * 4.7CM

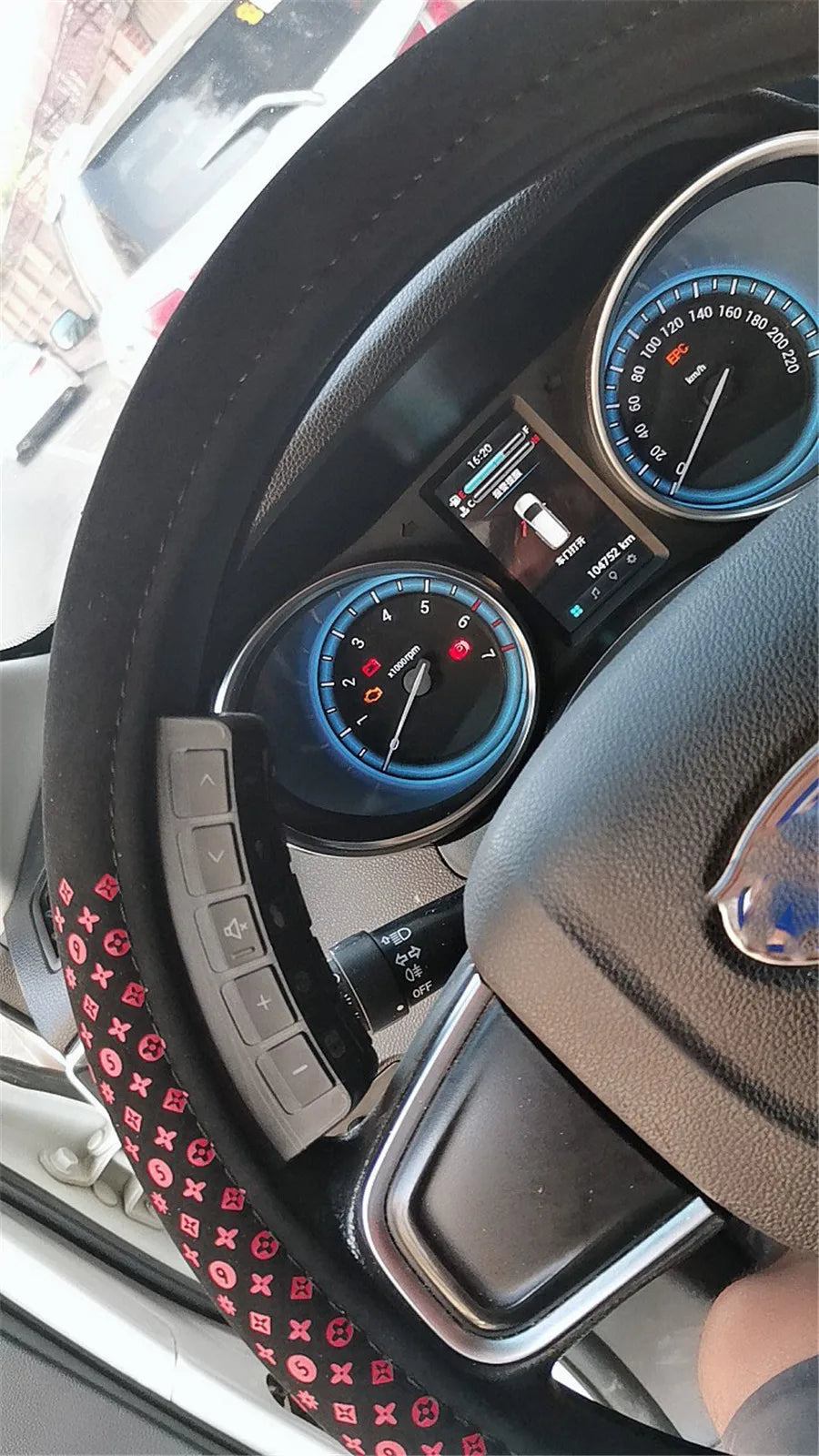

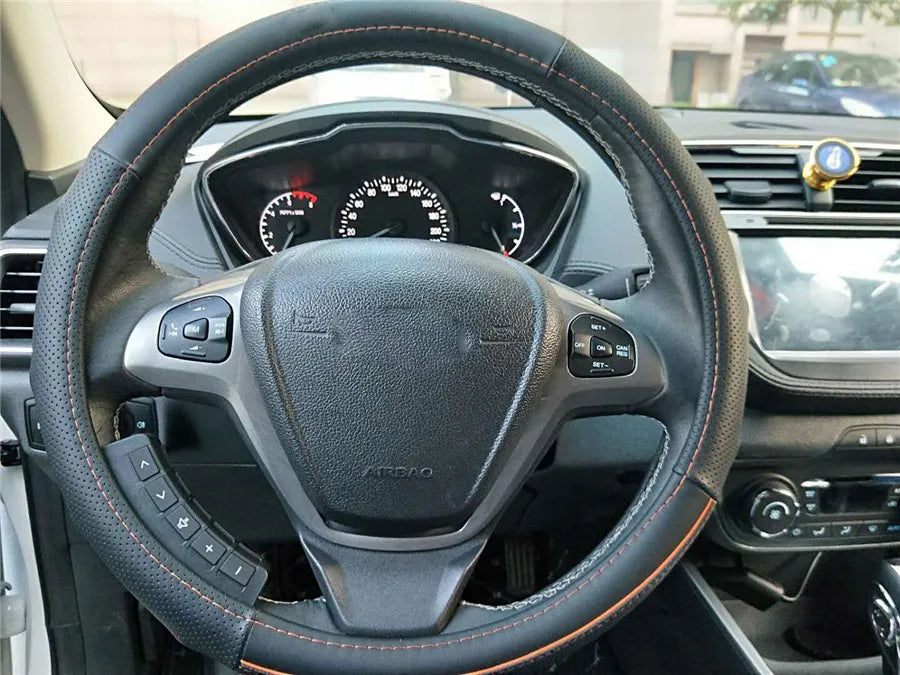

Installation: Non destructive installation on the card, can be installed in any steering wheel position, and can be applied more

No need to stick: prevent warping, deformation, and detachment of the stick under high and low temperatures

No need for holes: non-destructive installation is convenient and fast, without damaging the original steering wheel

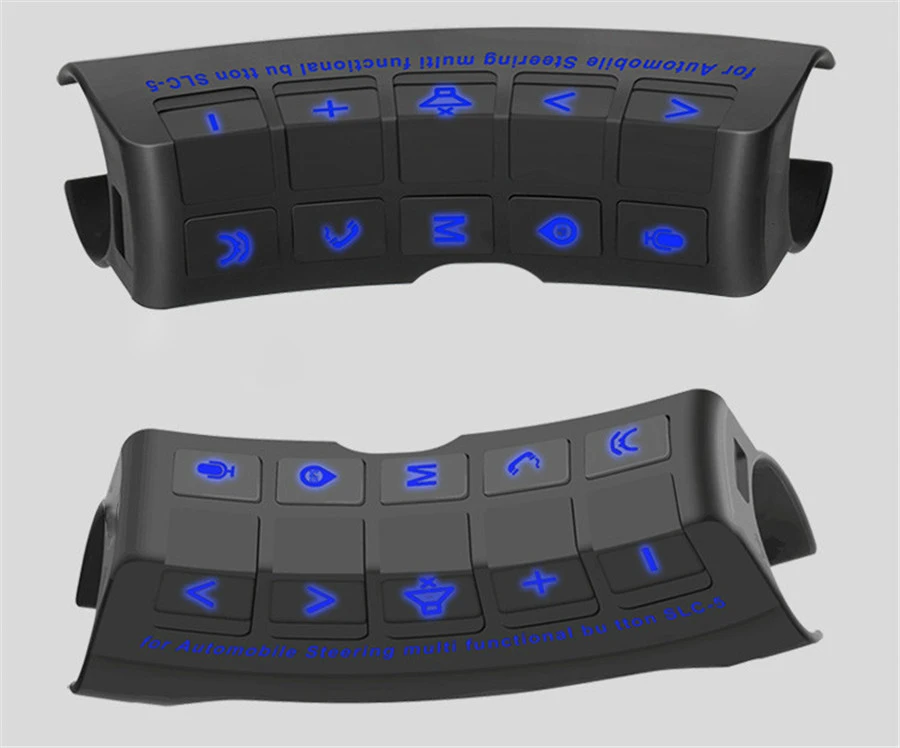

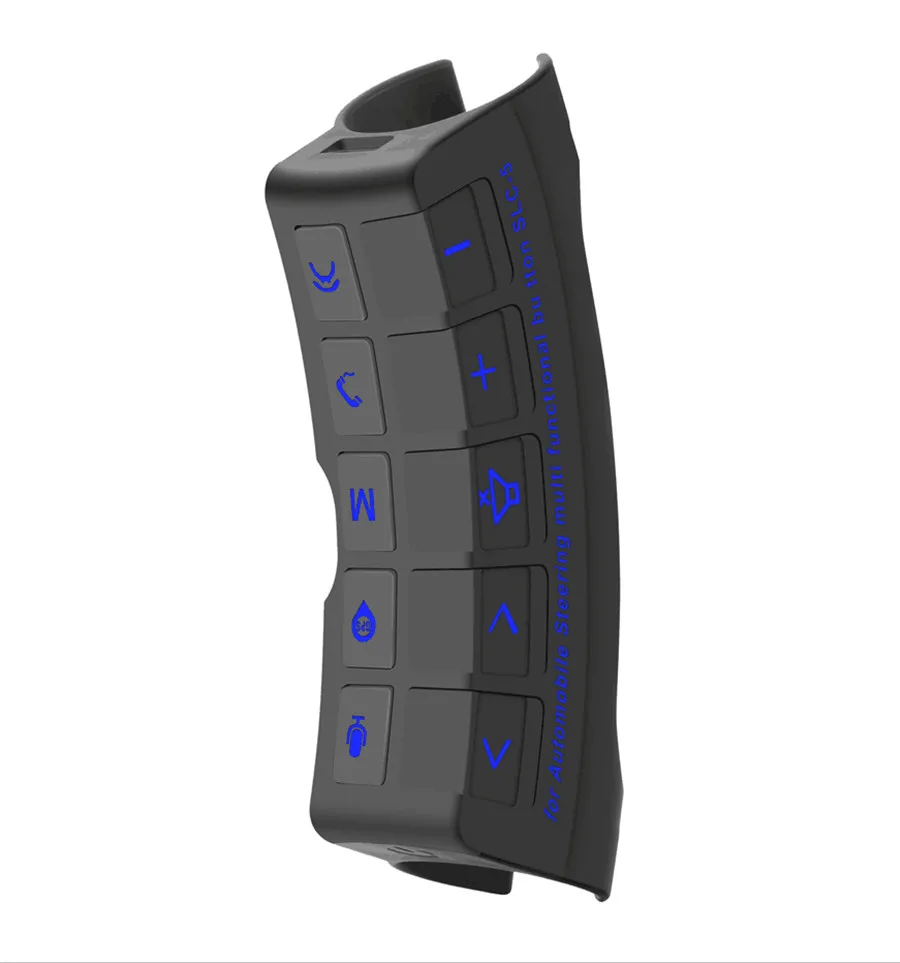

The backlight color is blue.

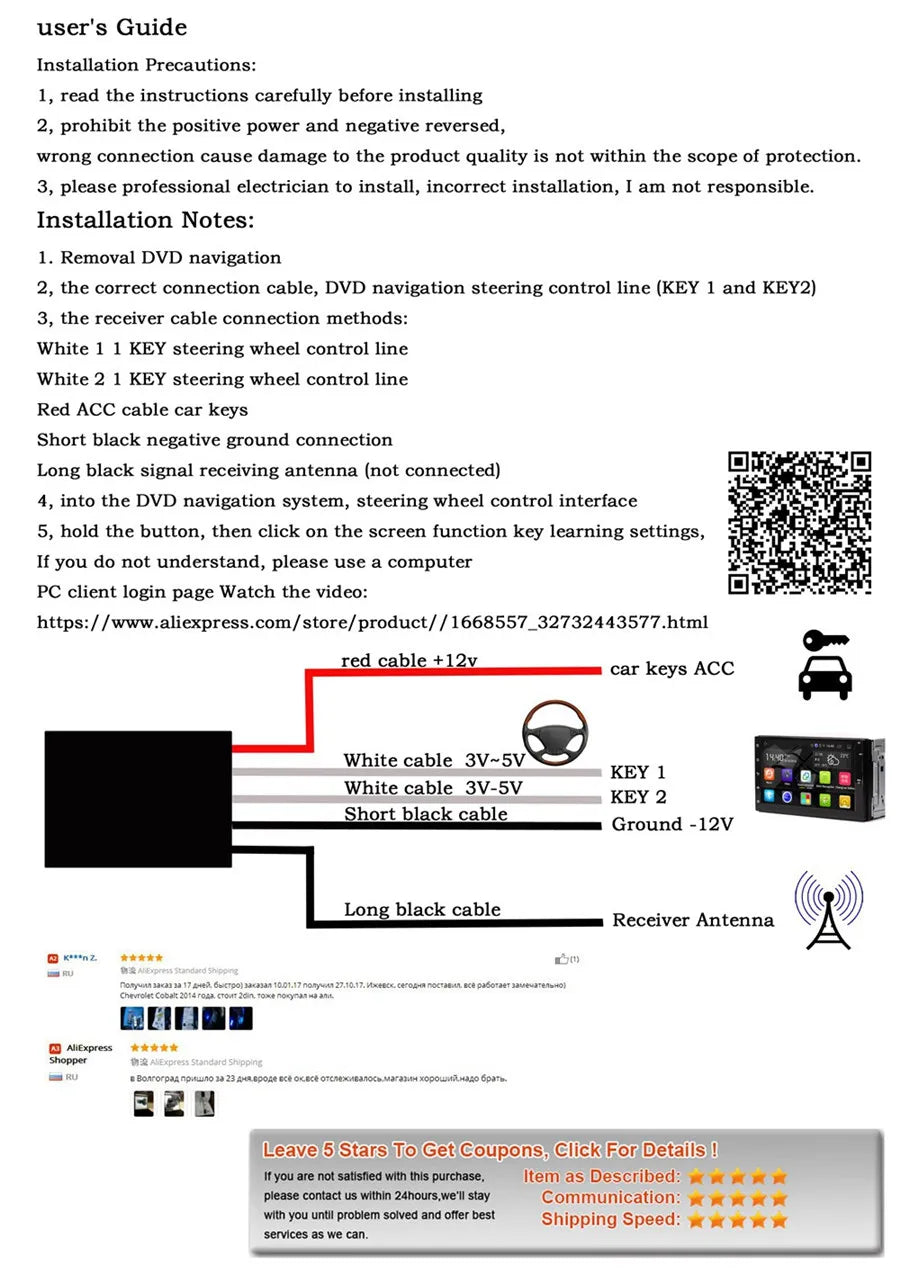

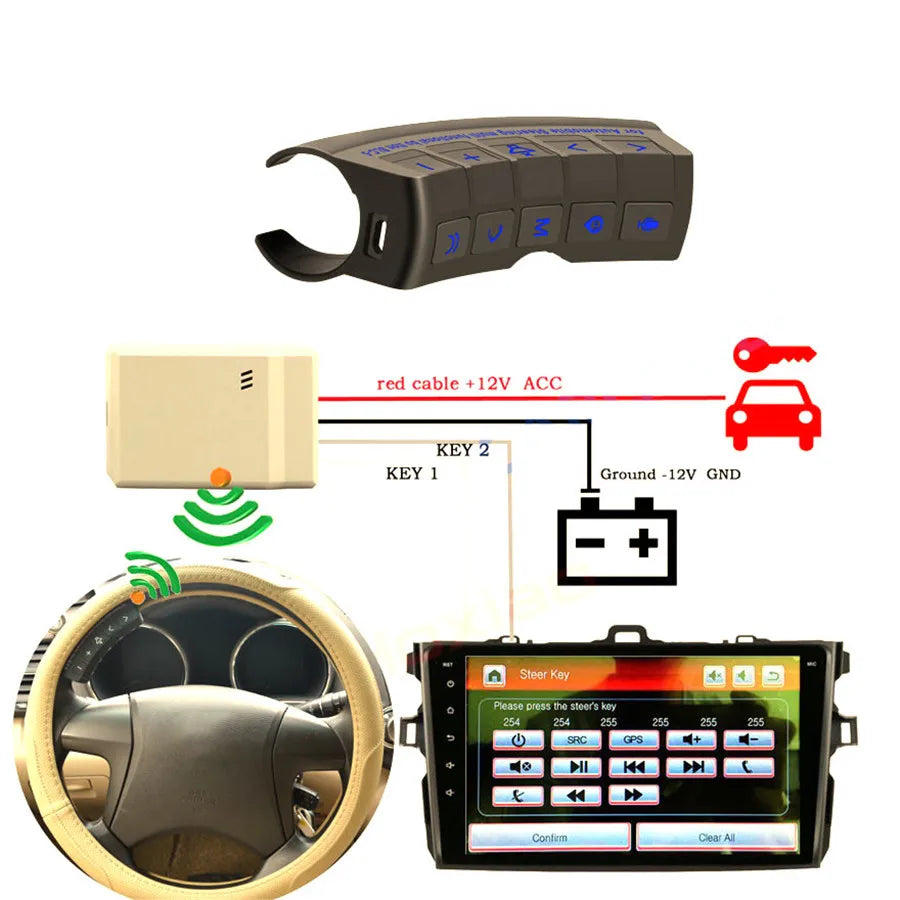

This module has 5 wires,

The green (ANT) antenna is not connected to anything

Red (ACC) connected to DVD navigation ACC power cable

Black (GND) connected to DVD navigation cable

White (Kay1/2) to DVD navigation side control harness (AD1/2, SW1/2)

Note: If there is only Kay 2, then both white wires of the module are twisted with the radio.

Business scope: automobiles, vans, vans, electric vehicles, large screens, small screens, general machine navigation

The package includes:

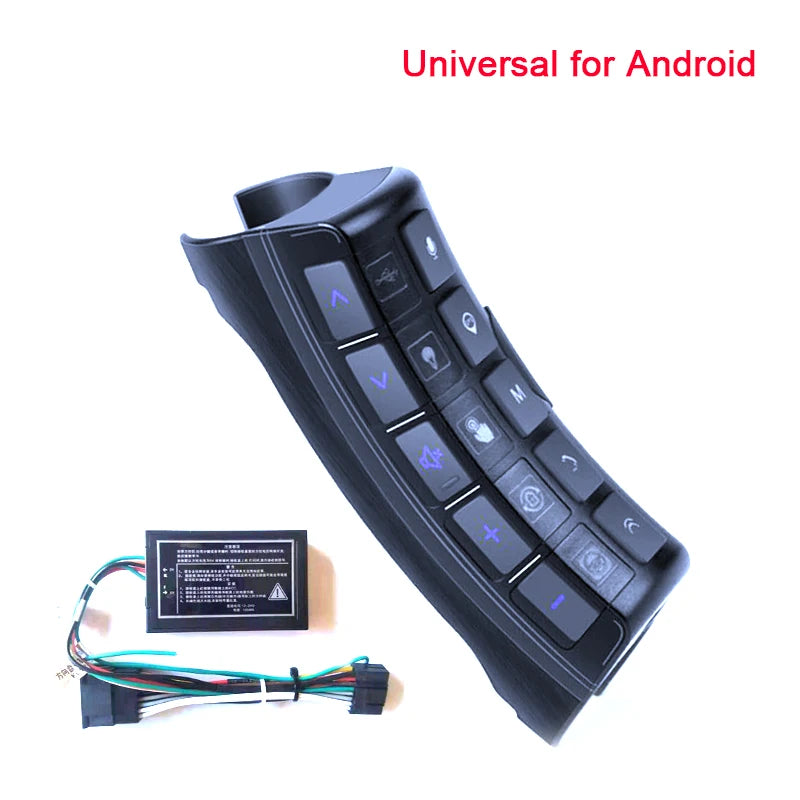

1 steering wheel control device

1 Android seat belt

1 charger

1 USB harness
