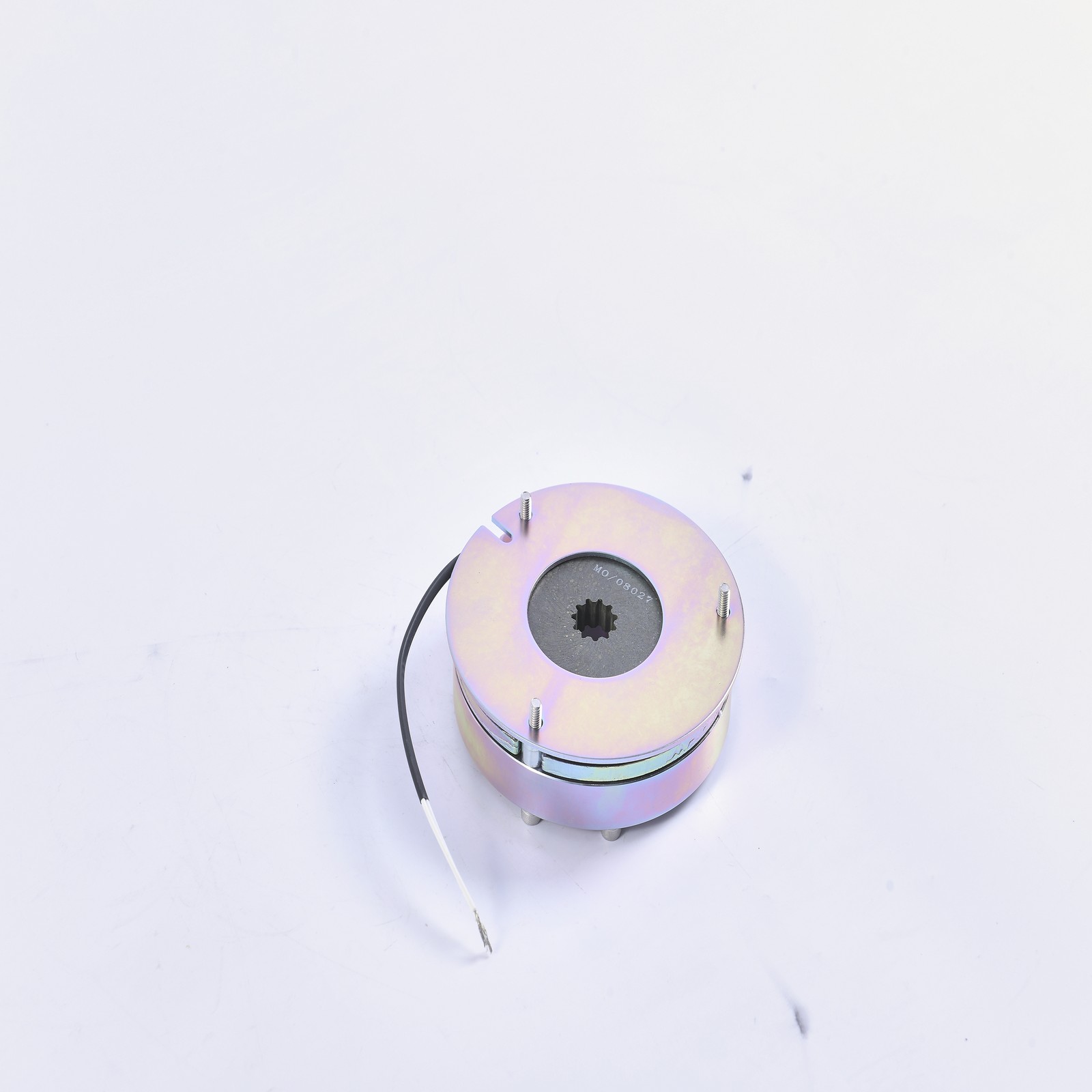

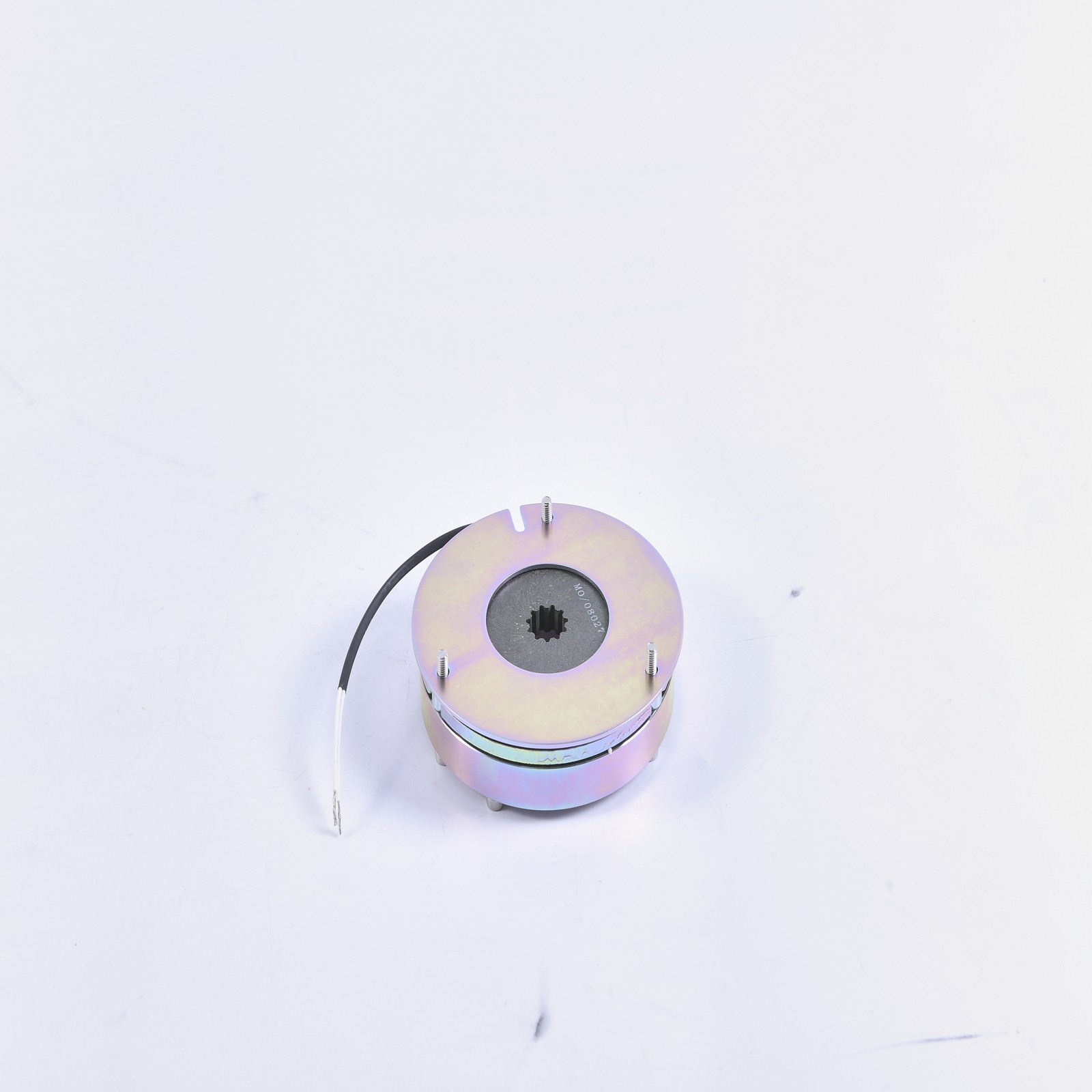

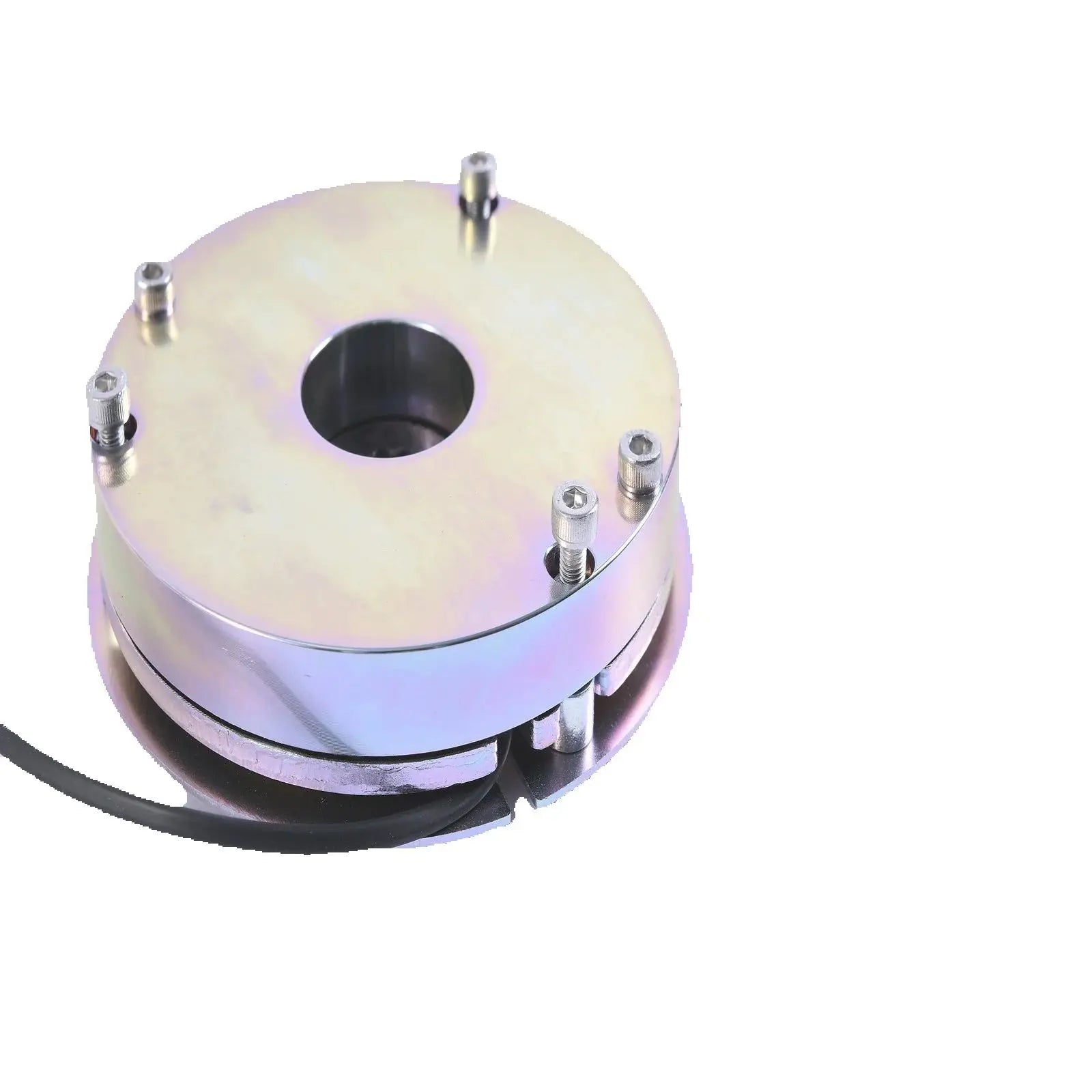

Electric Brake Kit 7024772 FOR JLG 1930ES 2630ES 2032ES 2646ES 3246ES 2632ES Scissor Lift

Package Includes:

• 1 x Electric Brake Kit

OEM/Cross Reference Part Number:

• 7024772

Compatible Vehicles:

• fit for JLG Electric Scissor Lift 1930ES SN 0200135154 to SN 0200152825

• fit for JLG Electric Scissor Lift 1930ES SN M200000100 to Present

• fit for JLG Electric Scissor Lift 1930ES SN 0200198014 to SN 0200239382

• fit for JLG Electric Scissor Lift 1930ES SN 0200239382 to Present

• fit for JLG Electric Scissor Lift 1930ES SN 020015285 to 0200198014

• fit for JLG Electric Scissor Lift 2630ES SN 020015285 to 0200198014

• fit for JLG Electric Scissor Lift 2630ES SN 0200135154 to SN 0200152825

• fit for JLG Electric Scissor Lift 2630ES SN 0200198014 to SN 0200239382

• fit for JLG Electric Scissor Lift 2032ES SN M200000100 to Present

• fit for JLG Electric Scissor Lift 2032ES SN 0200239382 to Present

• fit for JLG Electric Scissor Lift 2030ES SN 0200135154 to SN 0200152825

• fit for JLG Electric Scissor Lift 2030ES SN 0200198014 to SN 0200239382

• fit for JLG Electric Scissor Lift 2030ES SN 020015285 to 0200198014

• fit for JLG Electric Scissor Lift 2646ES SN 0200135154 to SN 0200152825

• fit for JLG Electric Scissor Lift 2646ES SN 020015285 to 0200198014

• fit for JLG Electric Scissor Lift 2646ES SN 0200198014 to SN 0200239382

• fit for JLG Electric Scissor Lift 2646ES SN M200000100 to Present

• fit for JLG Electric Scissor Lift 2646ES SN B200020297 to Present

• fit for JLG Electric Scissor Lift 3246ES SN 0200135154 to SN 0200152825

• fit for JLG Electric Scissor Lift 3246ES SN 020015285 to 0200198014

• fit for JLG Electric Scissor Lift 3246ES SN 0200198014 to SN 0200239382

• fit for JLG Electric Scissor Lift 3246ES SN M200000100 to Present

• fit for JLG Electric Scissor Lift 3246ES SN B200020297 to Present

• fit for JLG Electric Scissor Lift 2632ES SN B200020297 to Present

• fit for JLG Electric Scissor Lift 2632ES SN M200000100 to Present

• fit for JLG Electric Scissor Lift 2632ES SN 0200239382 to Present

• fit for JLG Electric Scissor Lift 1230ES

Installation Information:

• Disconnect power supply to the unit before commencing installation.

• Identify and remove the existing brake assembly. This may involve unscrewing mounting bolts and disconnecting electrical connectors.

• Align the new electric brake kit with the mounting points on the drive motor or axle.

• Secure the new brake kit using appropriate fasteners, ensuring they are tightened to the specified torque.

• Connect all electrical wiring harnesses to the corresponding terminals on the new brake kit, following the unit's service manual for correct routing and connections.

• Verify that all connections are secure and properly insulated.

• Restore power to the unit and perform functional tests to ensure the new brake kit operates correctly.

Important Notes:

• - Voltage rating is 24V DC. Ensure compatibility with the unit's electrical system.

• - Verify serial number (SN) ranges and model codes for exact compatibility before purchase.
