Engine Timing Chain Kit FOR BMW Mini 116i 318i Cooper B38A15 1.5L Car Accessories

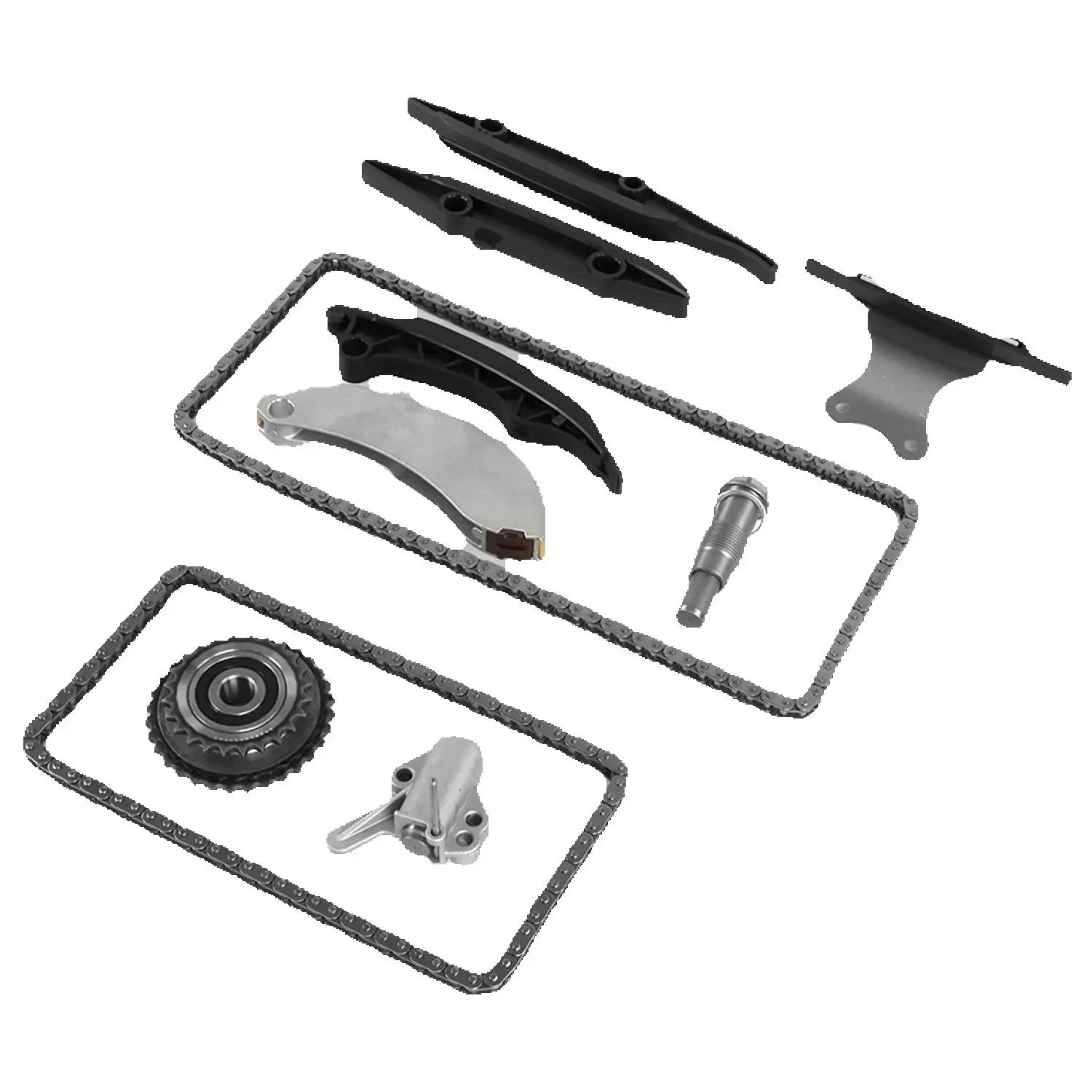

Package Includes:

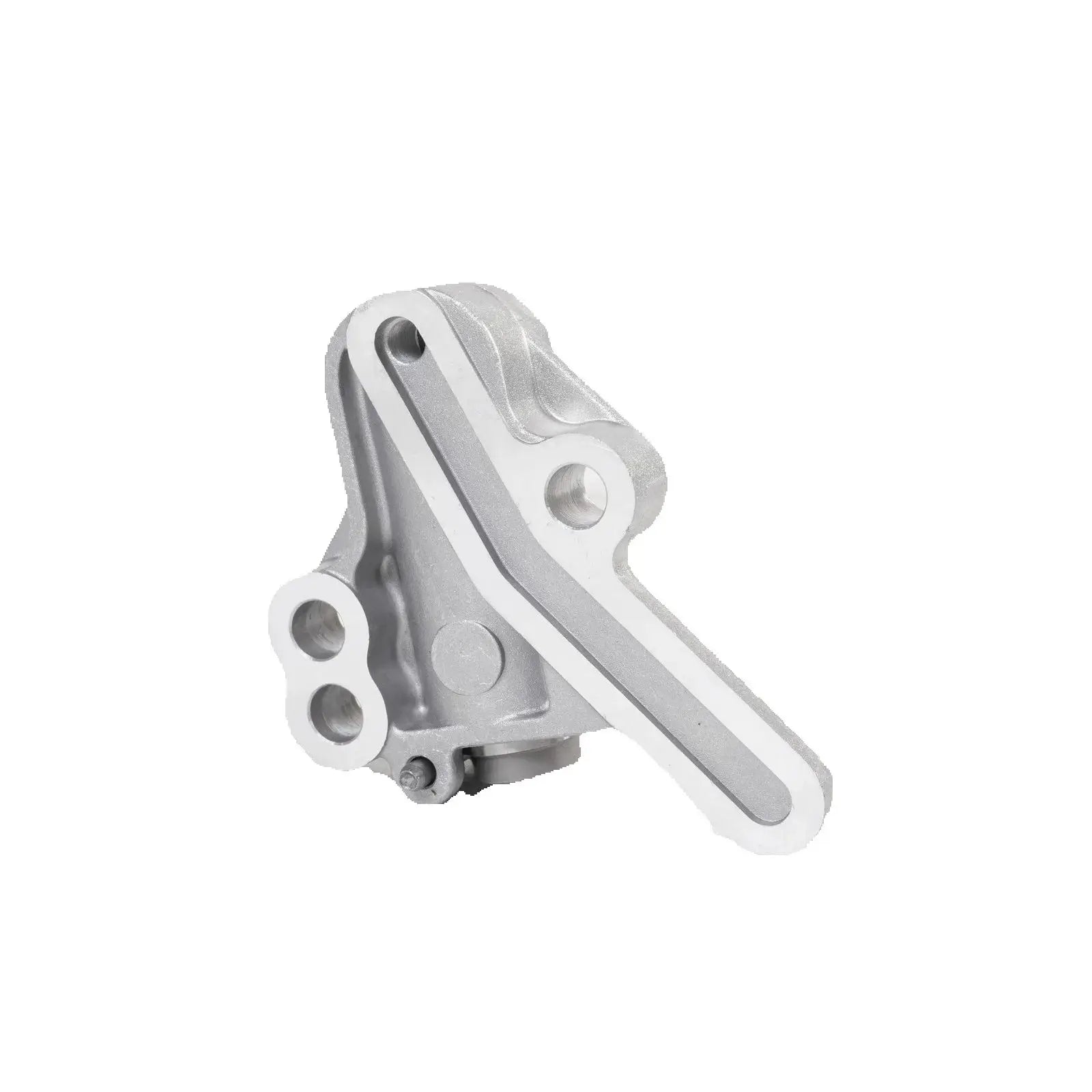

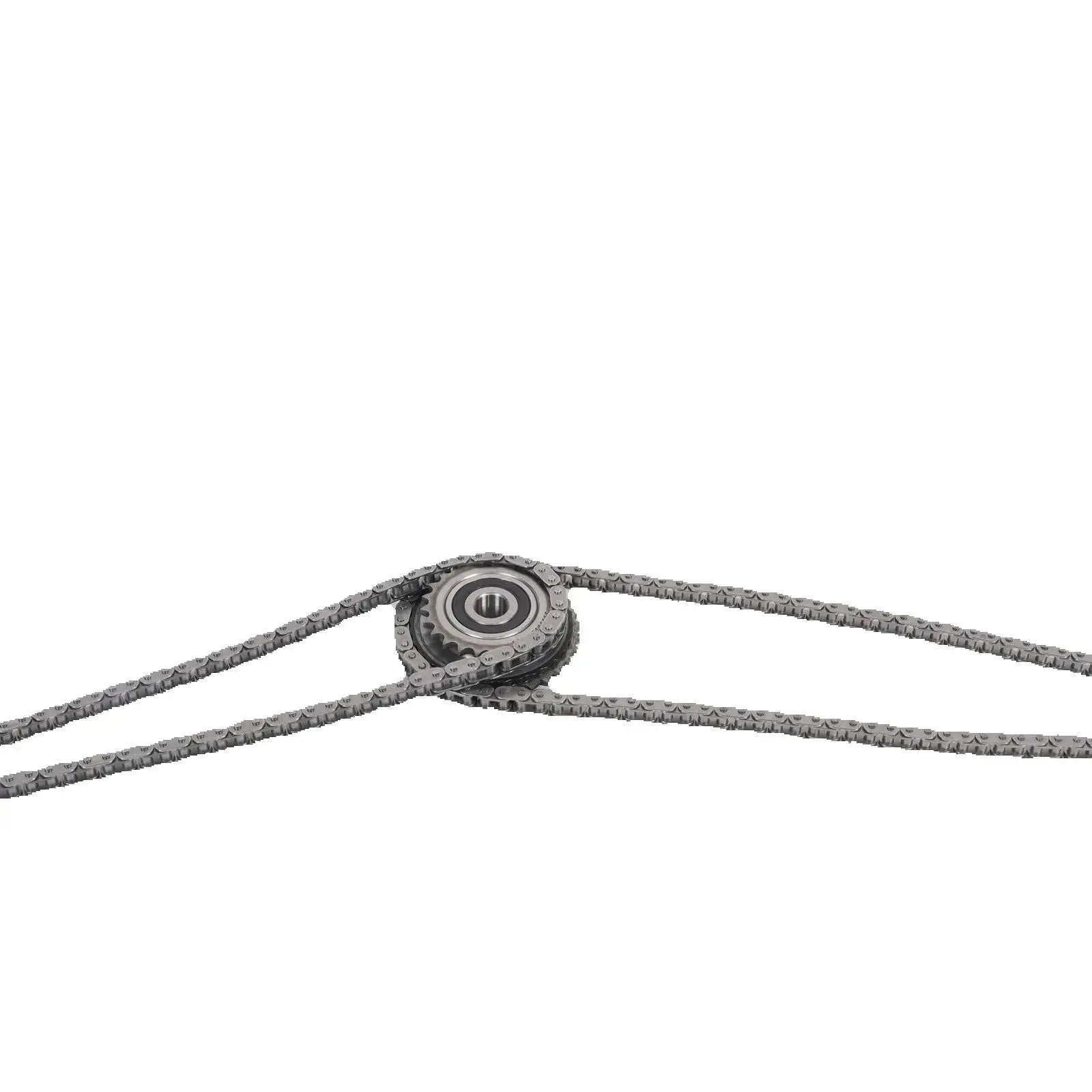

• Timing Chain (Primary)

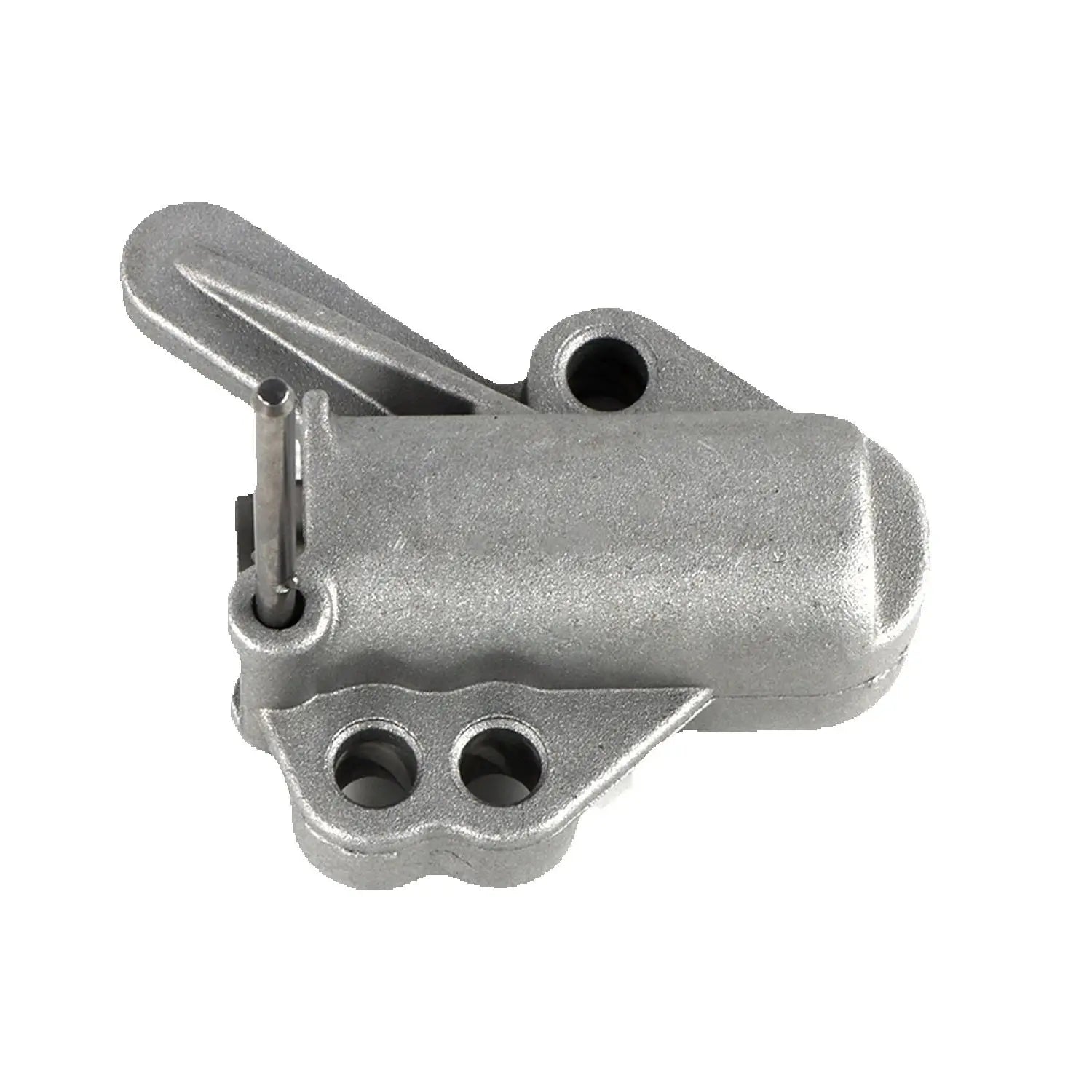

• Tensioner

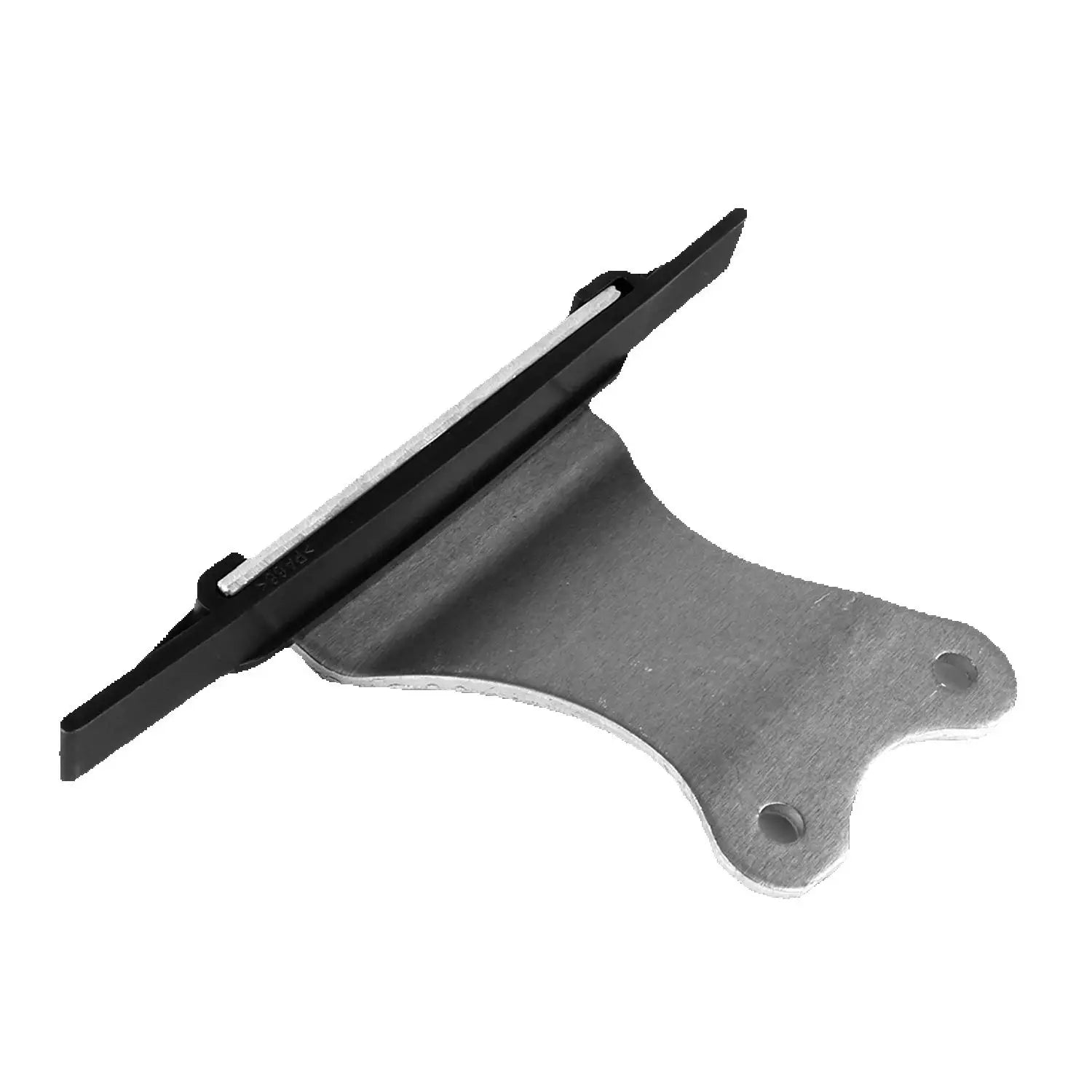

• Guide Rail (Upper)

• Guide Rail (Lower)

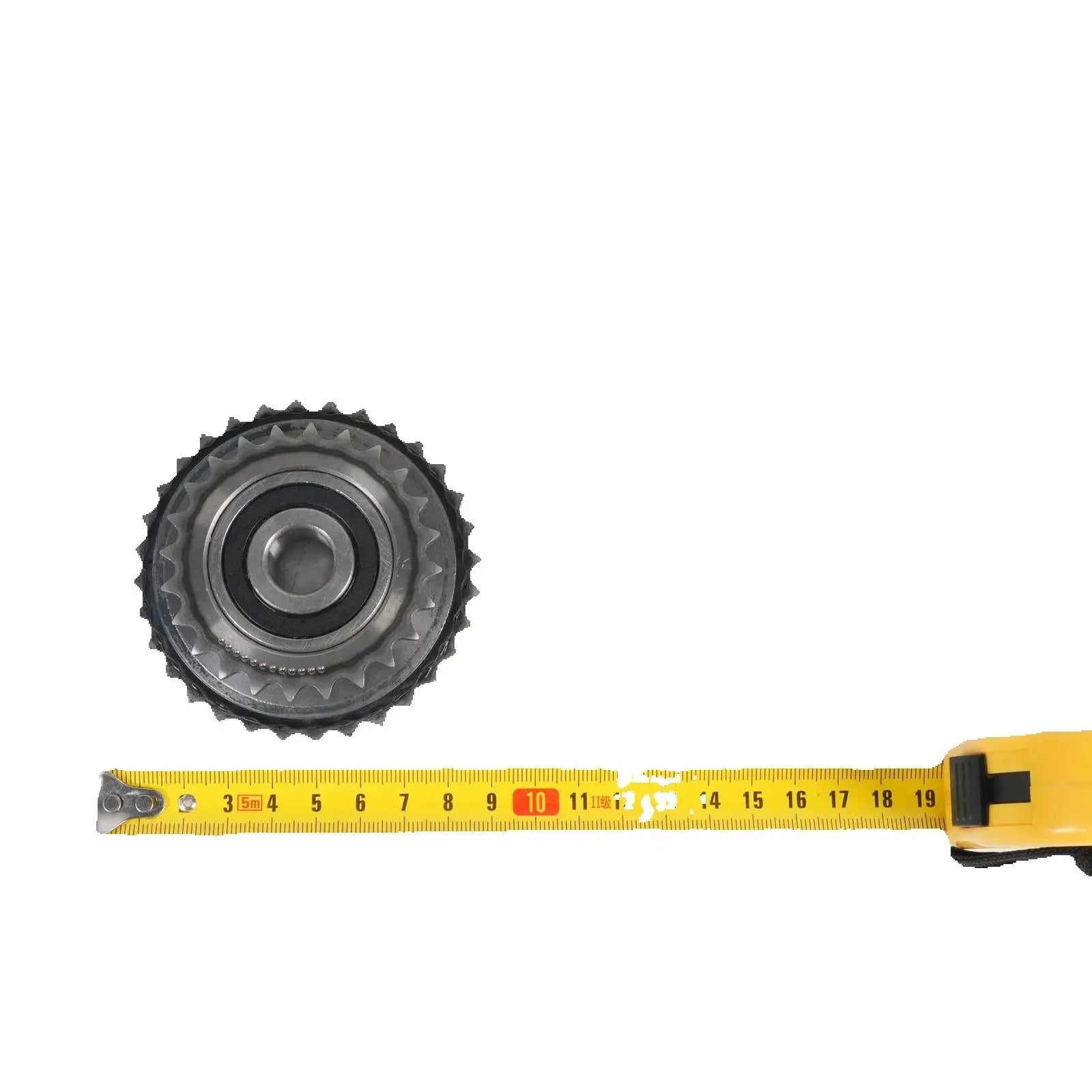

• Crankshaft Sprocket

• Camshaft Sprocket (x2)

OEM/Cross Reference Part Number:

• 11318693820

• 11317527850

• 11317946364

Compatible Vehicles

The following vehicles utilize the B38A15 engine variant:

• fit for BMW 1 Series (F20 F21) with 116i engine M15 on B38A15 1.5L 2015-2019

• fit for BMW 2 Series Active Tourer (F45) with 216i engine M15 on B38A15 1.5L 2014-2018

• fit for BMW 3 Series (F30 F31) with 318i engine M15 on B38A15 1.5L 2015-2019

• fit for Mini Cooper (F55 F56) with B38A15 engine 1.5L 2014-2023

• fit for Mini Cooper S (F55 F56) with B38A15 engine 1.5L 2014-2023

Installation Information

1. Isolate the power source by disconnecting the negative battery terminal.

2. Remove the engine cover and necessary peripheral components obstructing access to the timing chain cover assembly.

3. Drain engine oil as required by the procedure for the specific engine model.

4. Remove the timing chain cover utilizing appropriate tools to separate the cover from the engine block.

5. Release tension on the existing timing chain assembly components via the tensioner mechanism.

6. Systematically remove the old tensioner, sprockets, and chain.

7. Install new sprockets onto the crankshaft and camshafts ensuring correct alignment markings are matched according to engine service specifications.

8. Install the new timing chain, routing it over the sprockets.

9. Install the new hydraulic/spring-loaded tensioner, ensuring it is cocked or held as per manufacturer instructions before full engagement.

10. Install new guide rails in their designated positions.

11. Confirm the rotational synchronization of the crankshaft and camshafts by manually rotating the engine assembly two full revolutions before final torque procedures.

12. Reinstall the timing chain cover using new sealant or gasket material and torque fasteners to factory specifications.

13. Refill engine oil and reconnect the battery.

Important Notes

• - This kit is designed specifically for engines equipped with the B38A15 1.5L three-cylinder gasoline engine variant. Verify engine code prior to ordering.

• - Synchronization marks on sprockets and timing cover must align precisely with marks on the engine block and cylinder head during assembly. Incorrect alignment will cause engine damage.

• - Use of new strainers, bolts, and seals as supplied in the kit is mandatory for complete installation.
