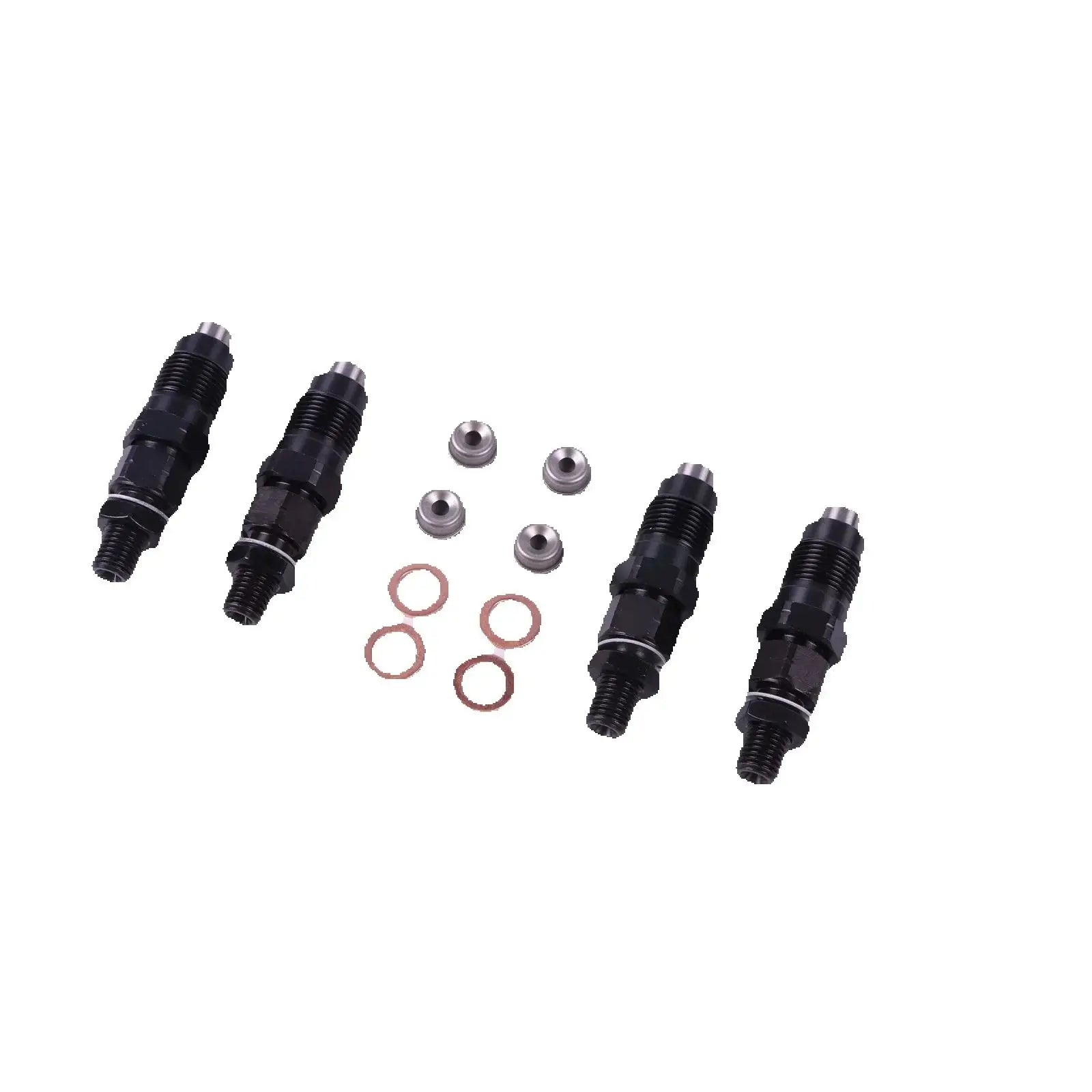

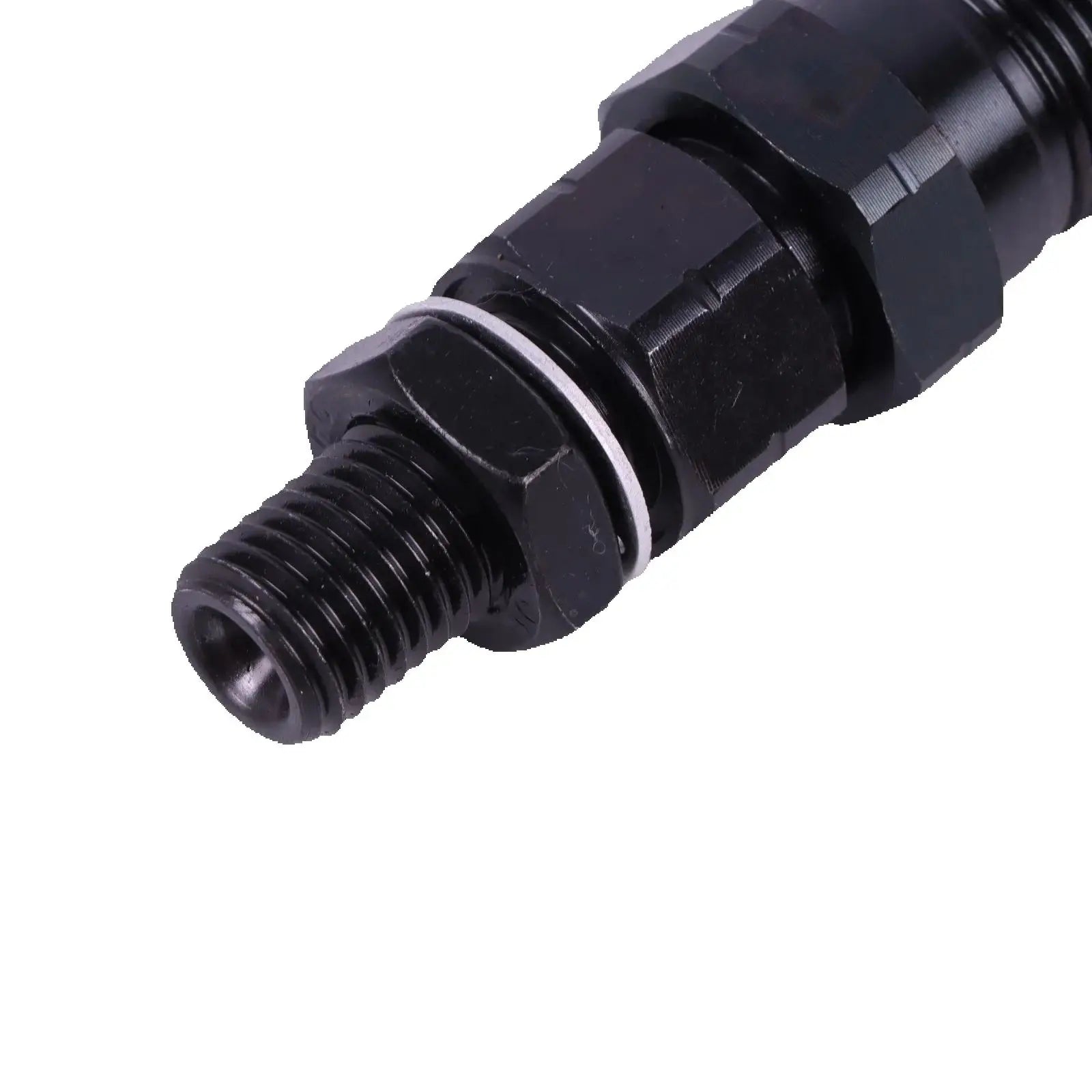

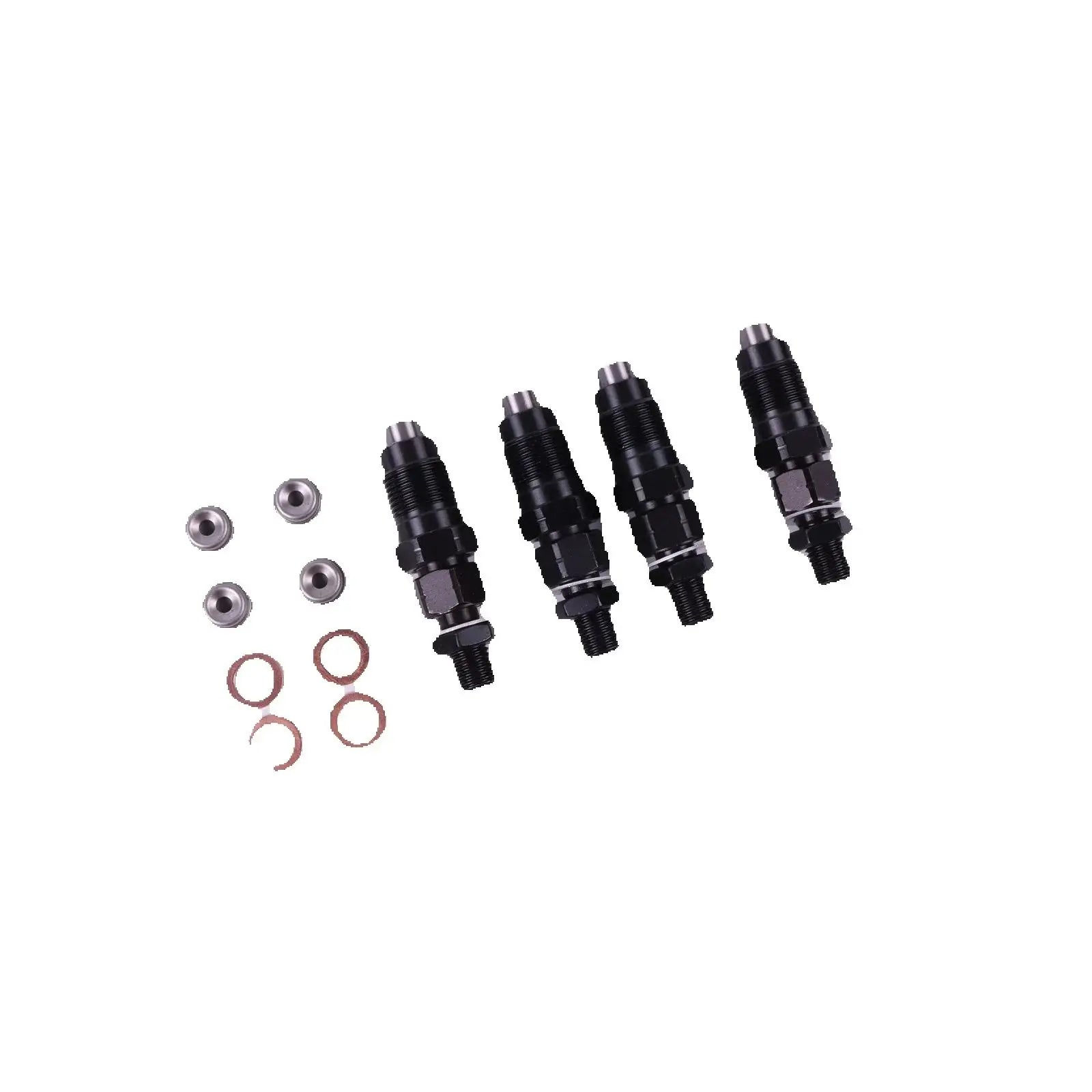

Fuel Injector Set FOR CAT 3024C C2.2 3013C Engine Construction Machine

$395.90

This component is designed for specific engine applications. Verify the OEM part number before purchase.

Step	Procedure
1	Isolate the fuel supply system and depressurize the fuel lines according to equipment service manual specifications.
2	Remove the electrical connector and high-pressure fuel line from the existing injector assembly.
3	Unfasten the retaining hardware securing the injector body to the cylinder head or fuel rail.

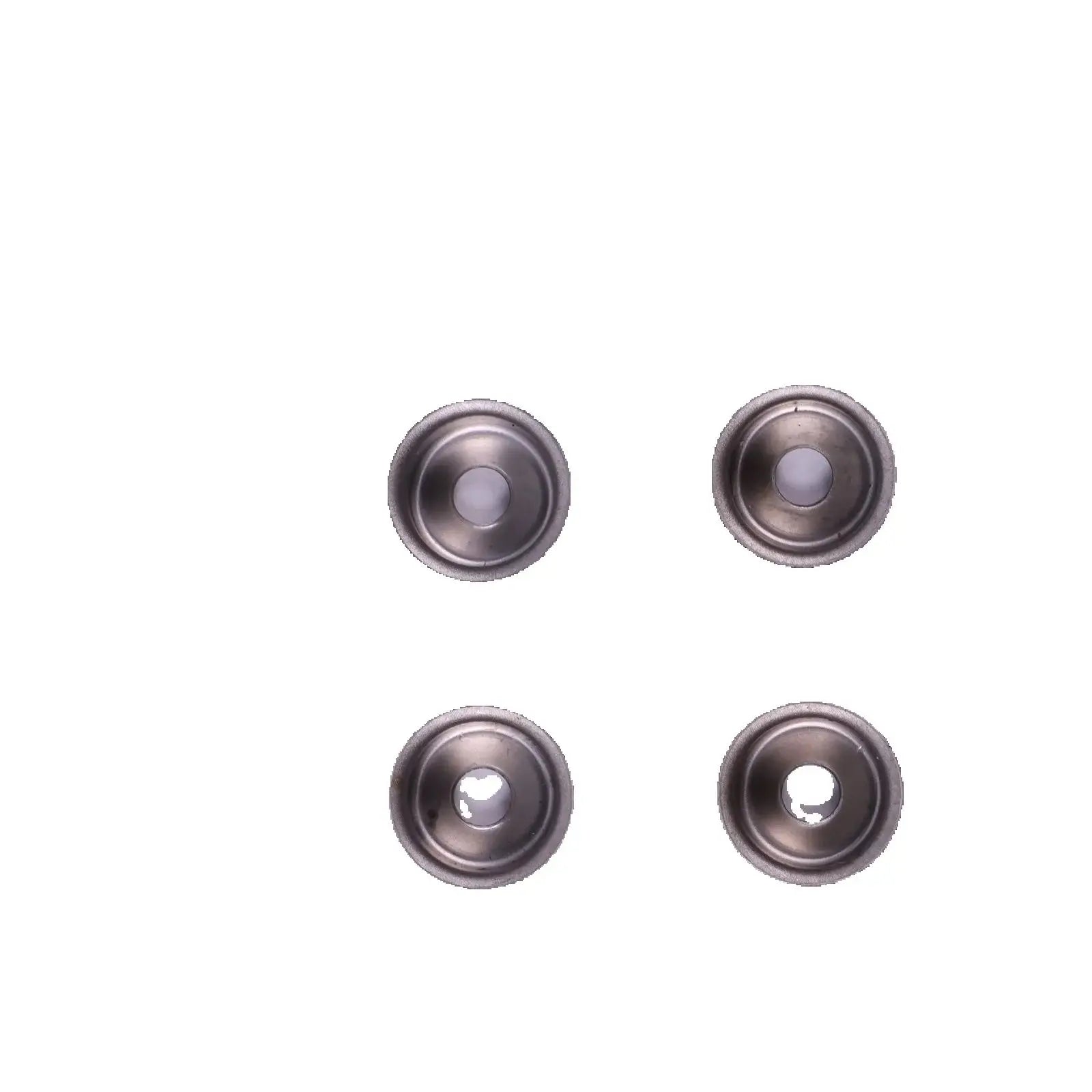

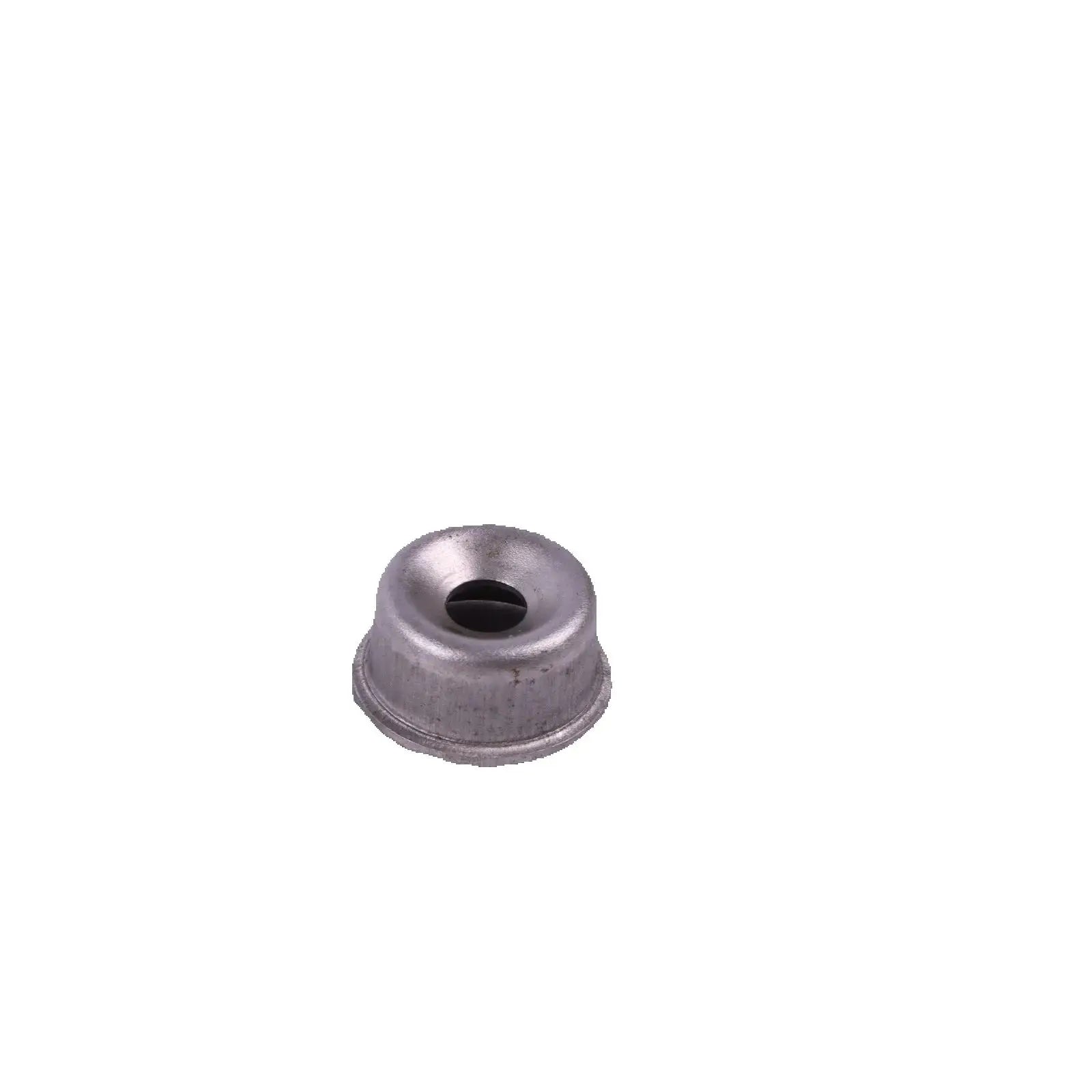

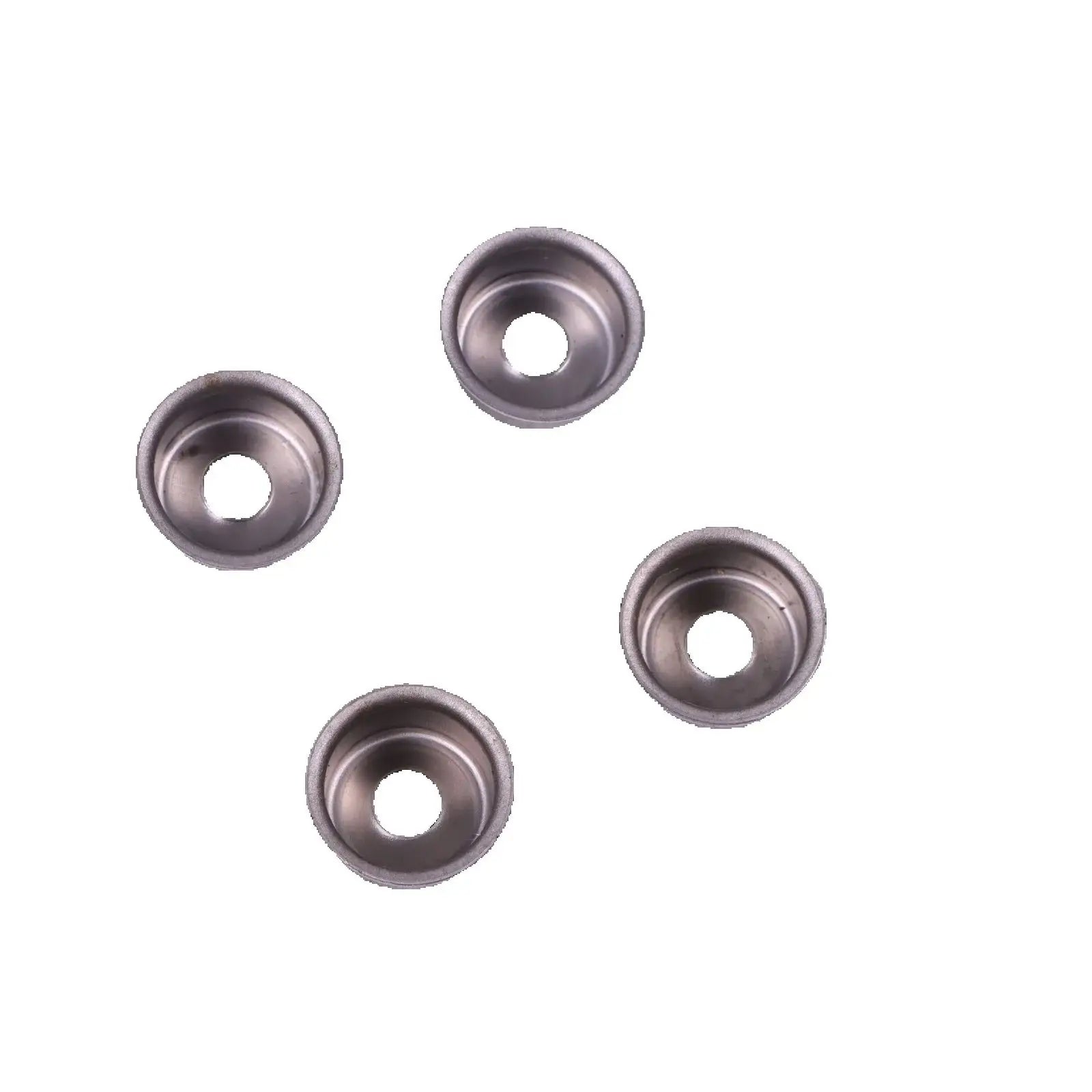

4	Carefully extract the old injector, observing the orientation of the sealing washer and copper crush ring.
5	Clean the injector bore surface thoroughly ensuring no debris remains.
6	Install a new copper crush ring onto the tip of the replacement injector.
7	Insert the new injector into the bore, maintaining the correct orientation.
8	Secure the injector using the retaining hardware tightened to the torque specification detailed in the manufacturer's service manual.
9	Attach the high-pressure fuel line and electrical connector.
10	Follow the required procedures for bleeding air from the fuel system before attempting engine start-up.

- Verify the part numbers listed against the existing component before ordering.
- Installation requires specific knowledge of high-pressure diesel fuel systems and correct torque application.
- Component suitability is entirely dependent on the specific engine build configuration and serial number.
