HD Mini Universal Speedometer Sensor Speed Sender Adapter Kit GPS Antenna(Optional) Speedometer - Automotive LED Light

HD Mini Universal Speedometer Sensor Speed Sender Adapter Kit GPS Antenna(Optional) Speedometer Gauge Signal For Car Truck 12V/24V

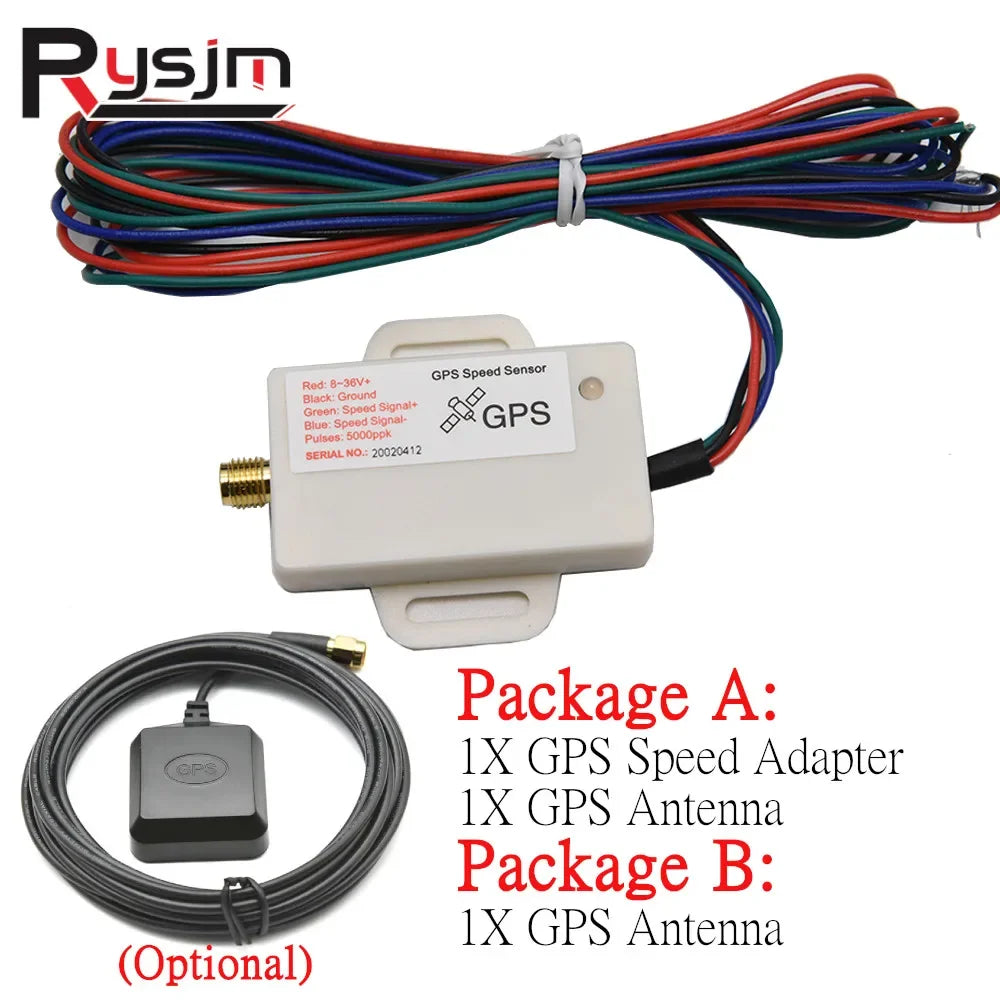

Package 1

1X GPS Antenna

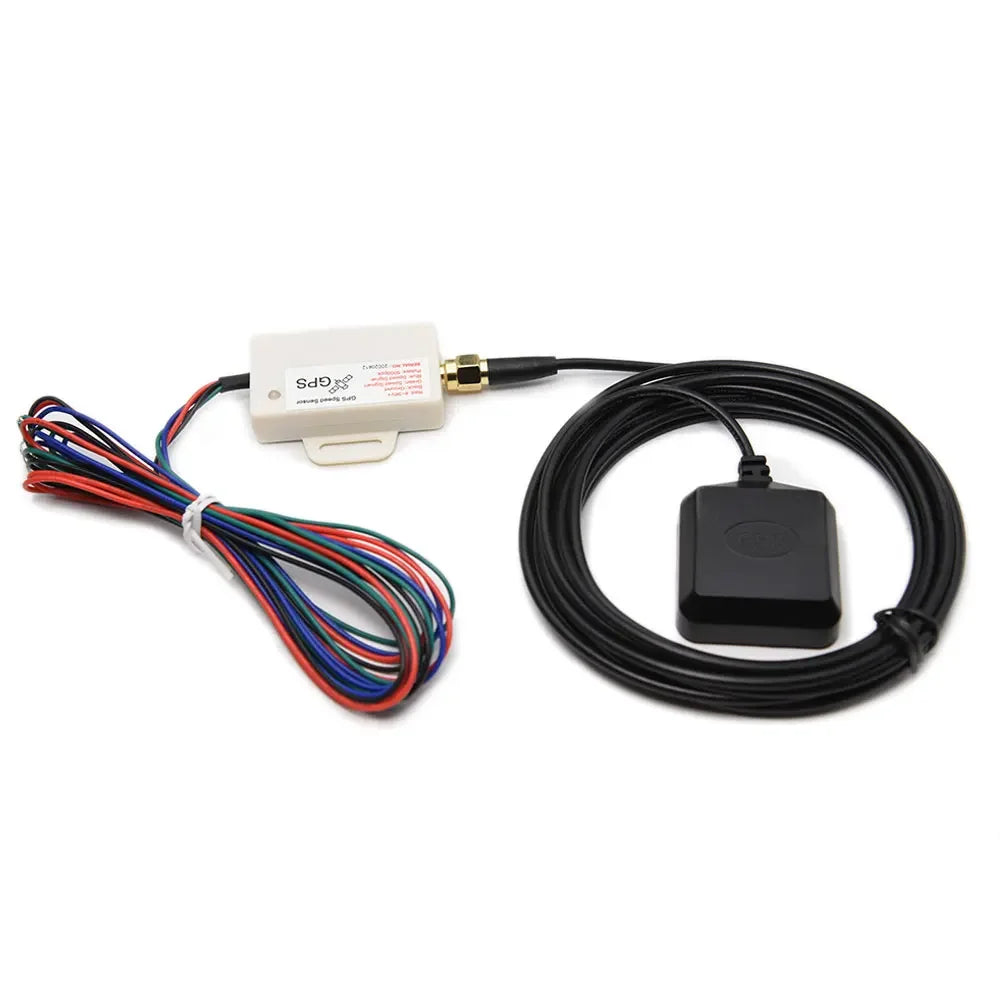

Package 2:as the picture shown

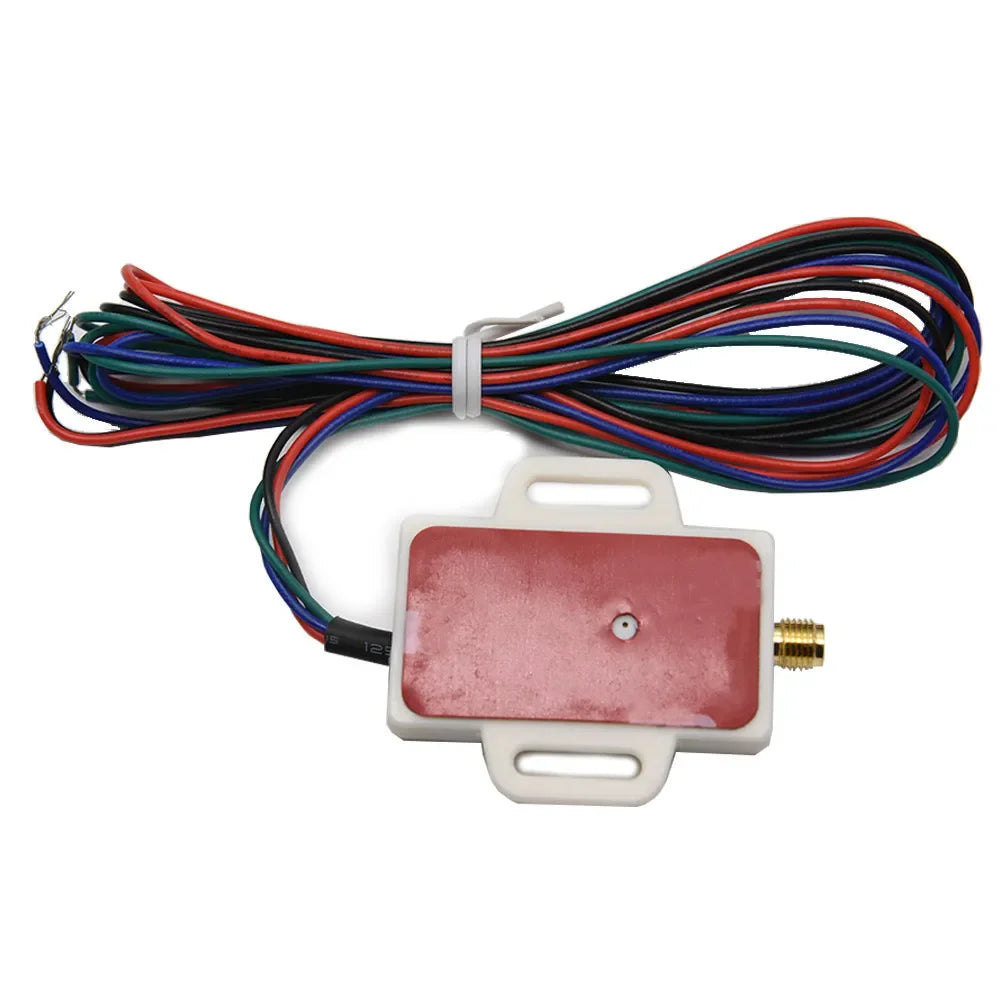

1 X Speedometer Sensor Adapter

1 X GPS Antenna

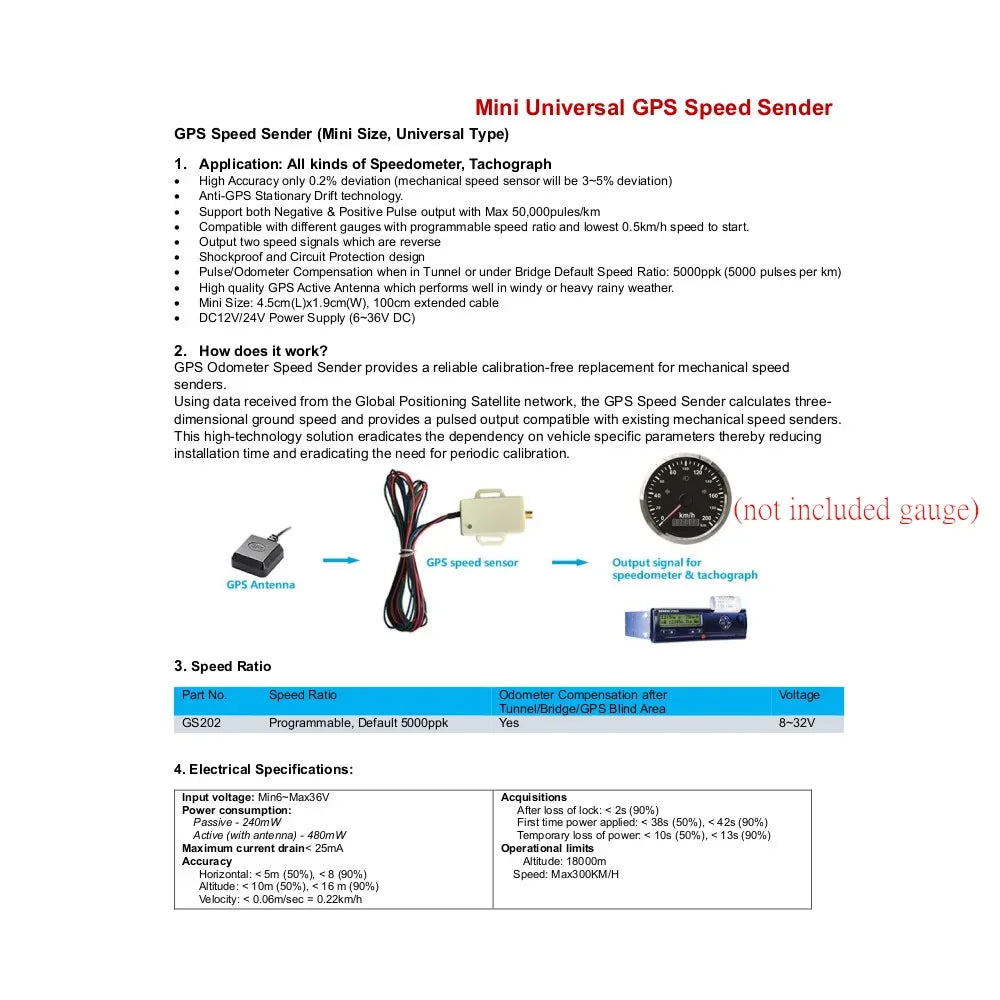

Specifications:

Mini Universal GPS Speed Sender

GPS Speed Sender (Mini Size, Universal Type)

1. Application: AlI kinds of Speedometer, Tachograph

2. High Accuracy only 0. 2% deviation (mechanical speed sensor will be 3~5% deviation)

3. Anti-GPS Stationary Drift technology.

4. Support both Negative & Positive Pulse output with Max 50,000pules/km

5. Compatible with different gauges with programmable speed ratio and lowest 0.5km/h speed to start.

6. Output two speed signals which are reverse

7. Shockproof and Circuit Protection design

Pulse/Odometer Compensation when in Tunnel or under Bridge Default Speed Ratio: 5000ppk (5000 pulses per km)

8. High quality GPS Active Antenna which performs well in windy or heavy rainy weather.

9. Mini Size: 4. 5cm(L)x1.9cm(W), 100cm extended cable

10. DC12V/24V Power Supply (6- 36V DC)

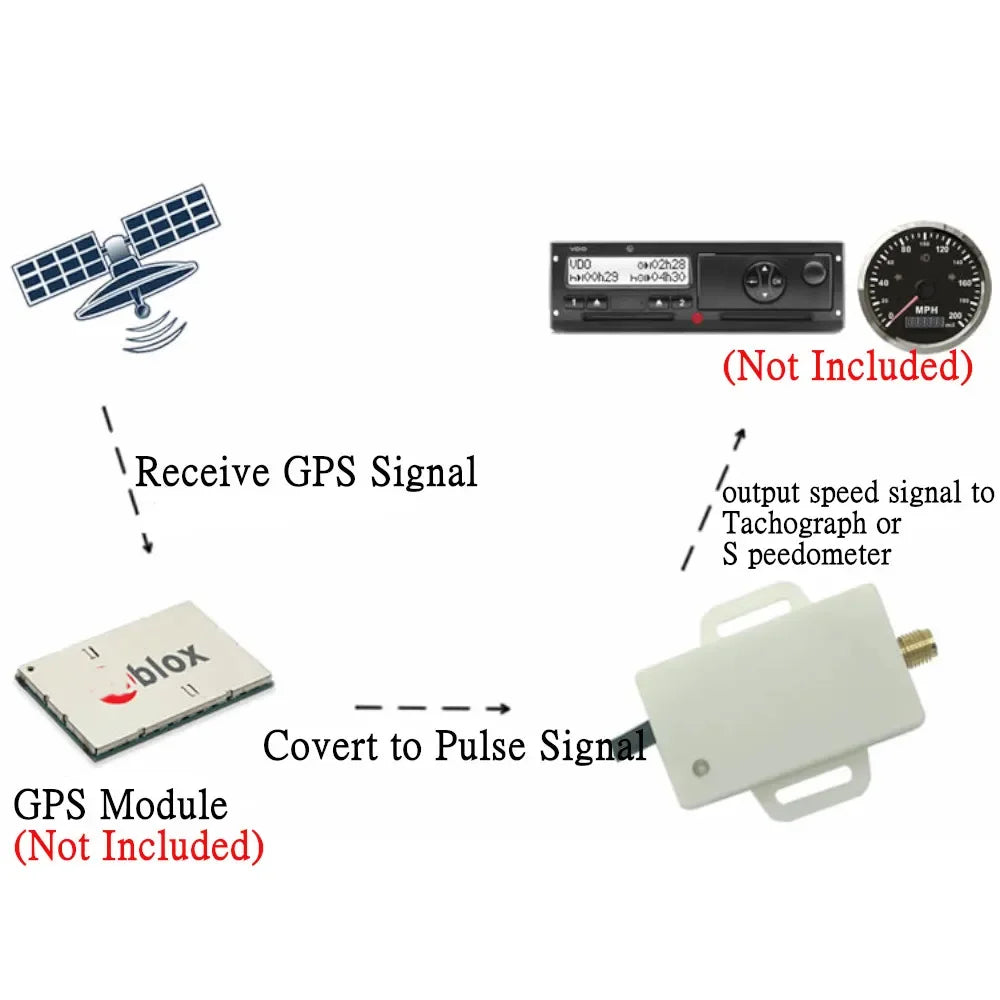

How does it work?

1. GPS Odometer Speed Sender provides a reliable calibration-free replacement for mechanical speed senders.

2. Using data received from the Global Positioning Satellite network, the GPS Speed Sender calculates three-dimensional ground speed and provides a pulsed output compatible with existing mechanical speed senders.

3. This high-technology solution eradicates the dependency on vehicle specific parameters thereby reducing installation time and eradicating the need for periodic calibration.

Cable Definition:

RED: Power +, DC8~32V
BLACK: GROUND
GREEN: Speed Pulse Signal Output +
BIUE: Speed Pulse Signal Output-
Please connect GREEN or BLUE cable (one of the two) to your current
Speedometer/odometer/tachograph.

Wholesale and Drop shipping

- For wholesale, we will offer the discount or free express shipping which only takes 3-7 days to arrive.
- For drop shipping, We could send the goods to your customers directly and won't leave information about us if youd like to.

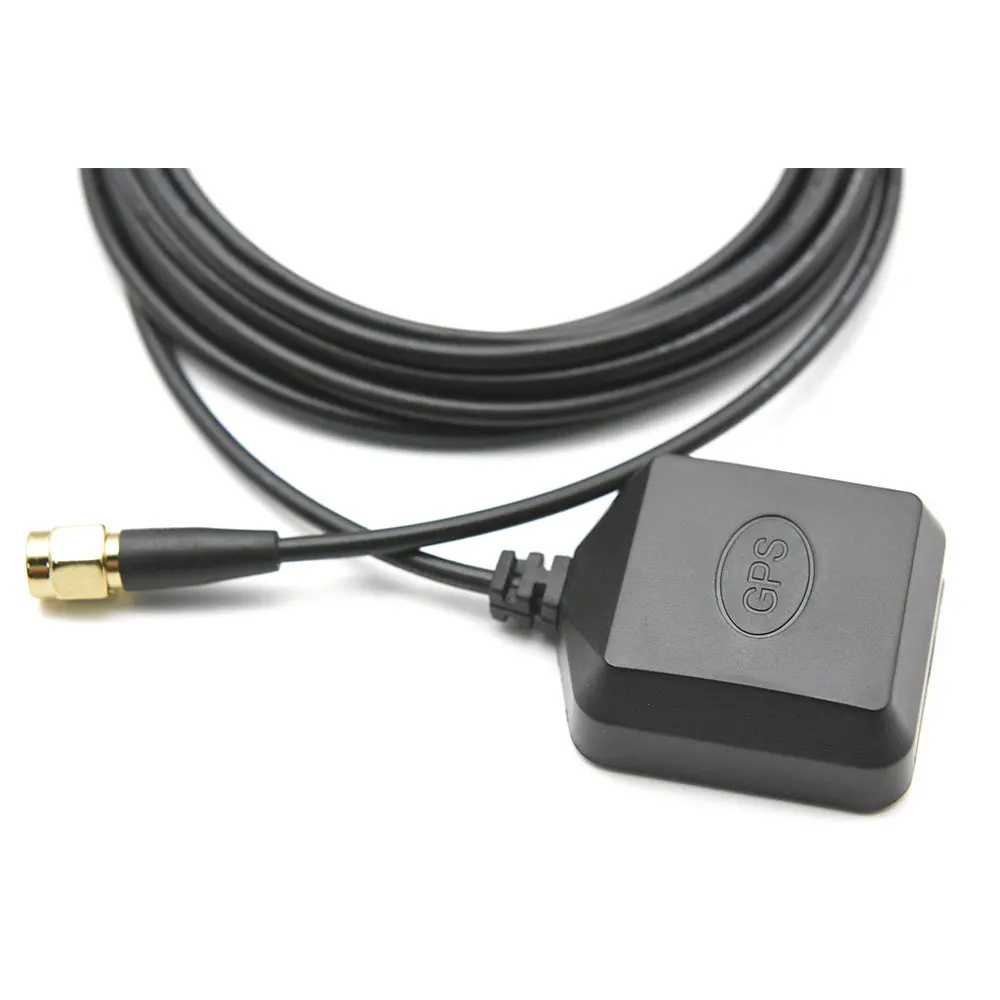

GPS Antenna
