Universal Car Turbocompressor Turbo Charger with Automatic Controller Maximum 300W 35000 R
$180.00
Universal Car electric turbine Carregador turbo with Automatic controller 35000 RPM Turbo charger Maximum 300W
Rated voltage:12-15V
Rated current:14-17
ARated power:210W
Maximum power:300W
3000KV
Speed: 35000 rpm
KV value: 3100
Maximum speed: 52000RPM (loud voice)
Maximum thrust:500G
Wind speed range:5m/s--42m/s
Wind pressure range:0.005KG/CM--0.075KG/CM
Material:Kirsite+PBT

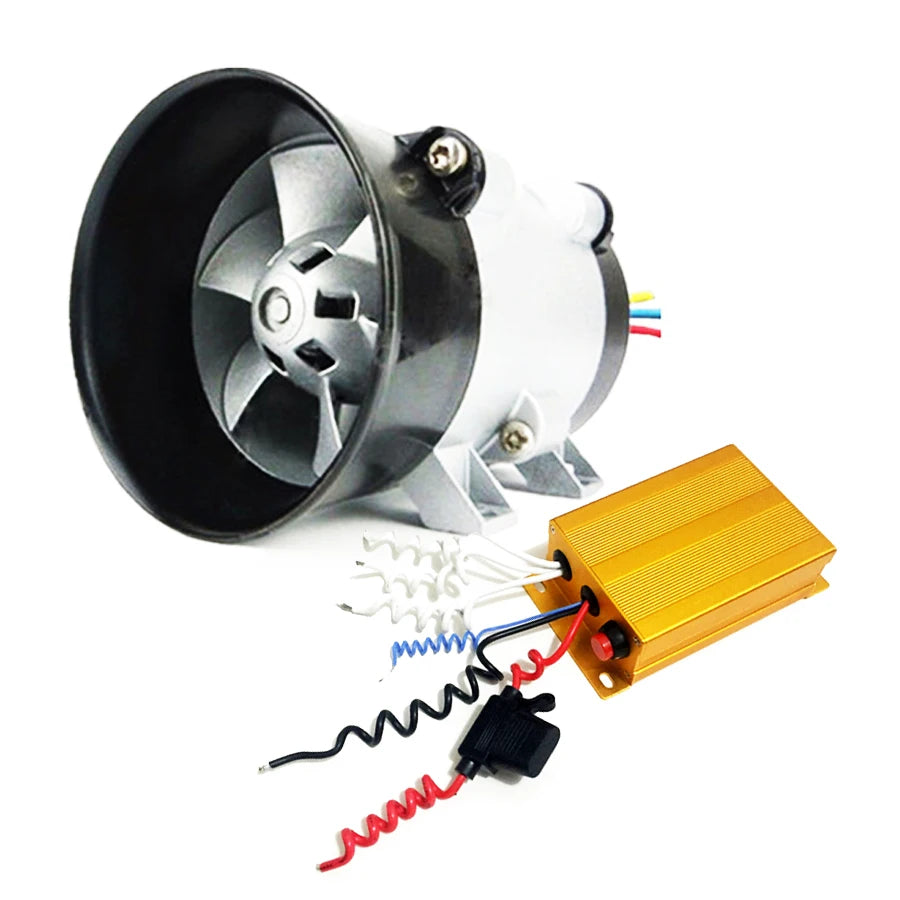

Package include: Turbine + Automatic controller

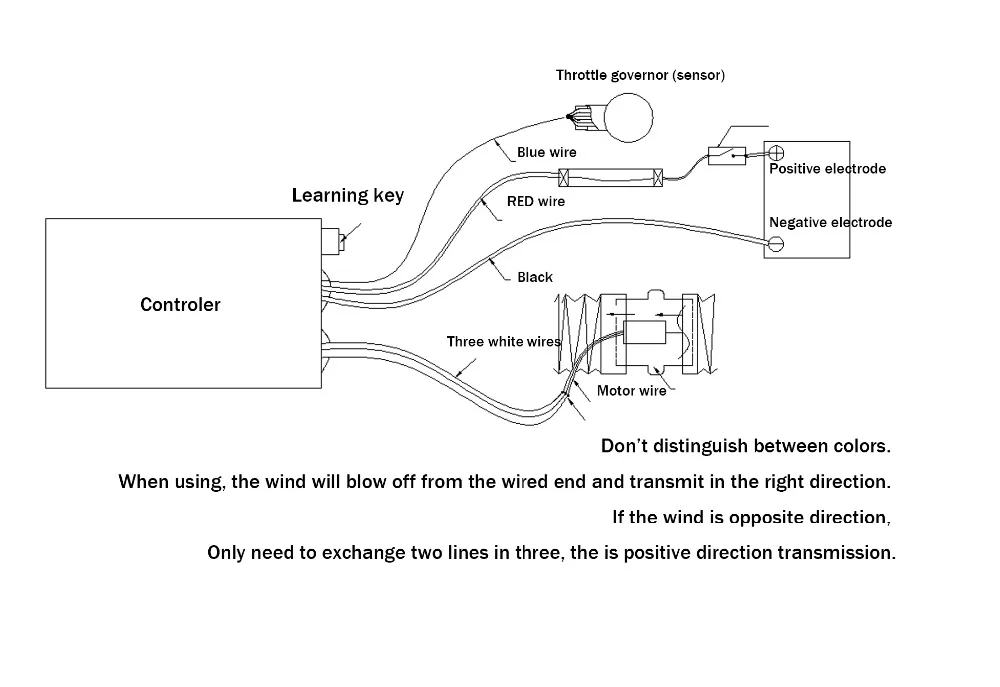

Three brushless motors are connected to the control box, and the positive and negative poles of the control box are connected to the battery power supply
The blue sensing line of the control box needs to be connected with the corresponding sensing line.
Measure the throttle voltage method:
Turn on the power gear of the car, and do not pull out the throttle plug. Measure the throttle plug with a multimeter voltage gear, a black lead and a red lead. When you step on the throttle, the voltage will change from 0 to 5 V with the depth of the throttle, that is, the voltage of the throttle that does not step on and to the bottom will have a change range. This line is the throttle speed control line. Connect the line, drive for 3 minutes, press the learn key, and you are done!
This automatic speed regulation electric turbine only needs to install the fan and connect the power supply and speed regulation signal line!
Idle speed does not work, press the accelerator to start automatic speed regulation!
