Universal RPM Motorcycle Instrument GPS Speedometer LED Digital Odometer Gauge Tachometer For Ka - Automotive LED Light

Customized Universal RPM Motorcycle Instrument GPS Speedometer LED Digital Odometer Gauge Tachometer For Kawasaki For Suzuk 2/4 cylinders

Fitment：

Universal For ,2,4 Cylinders Motorcycle For Honda For Ducati For Kawasaki For Suzuki


( Before you submit the order, please confirm that is suitable for your motorcycle. )

Specification:

-100% Brand New and High Quality

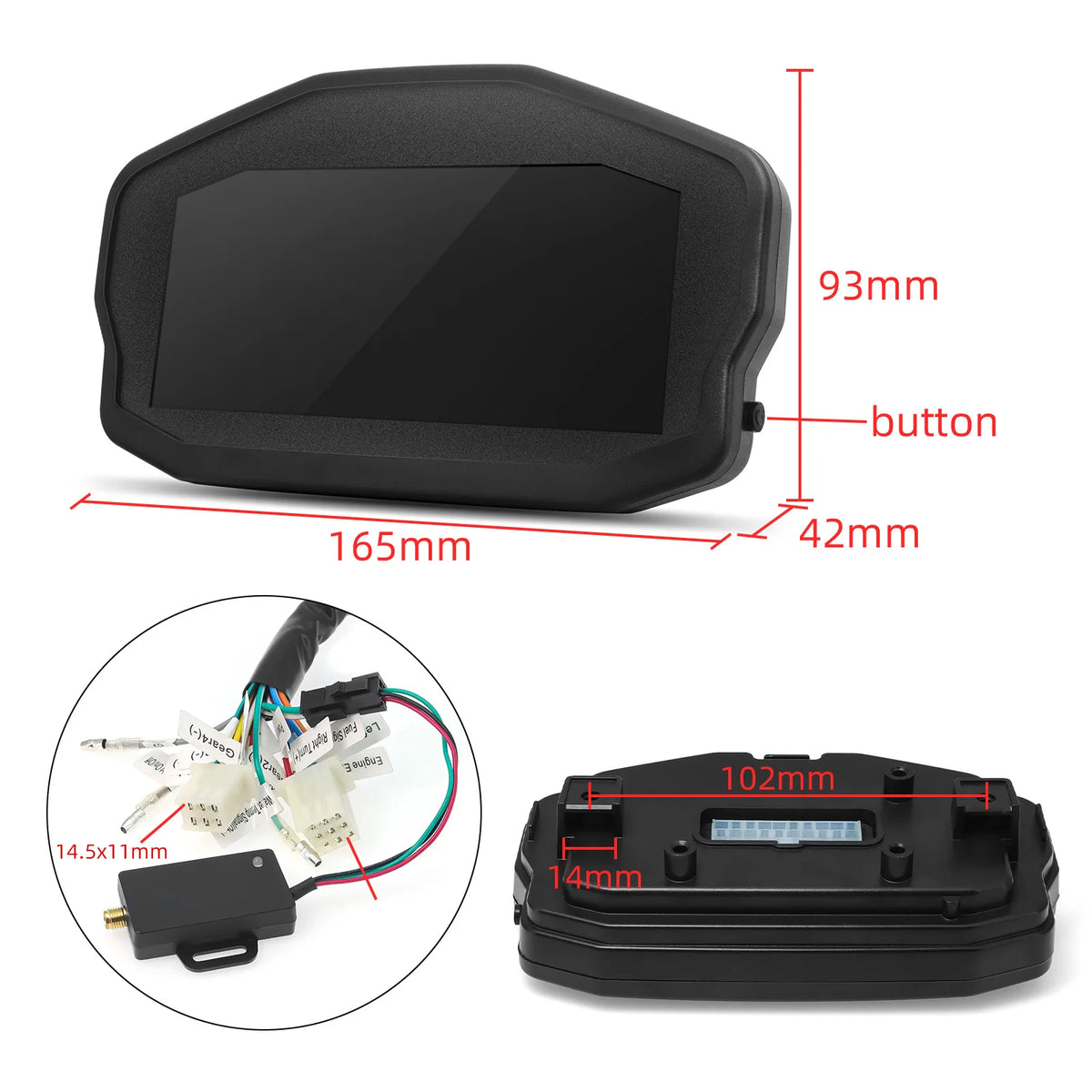

-Size: 165(Length)*93(Width)*42(Deepth)mm
-Working temperatures: - 40 to 85°C

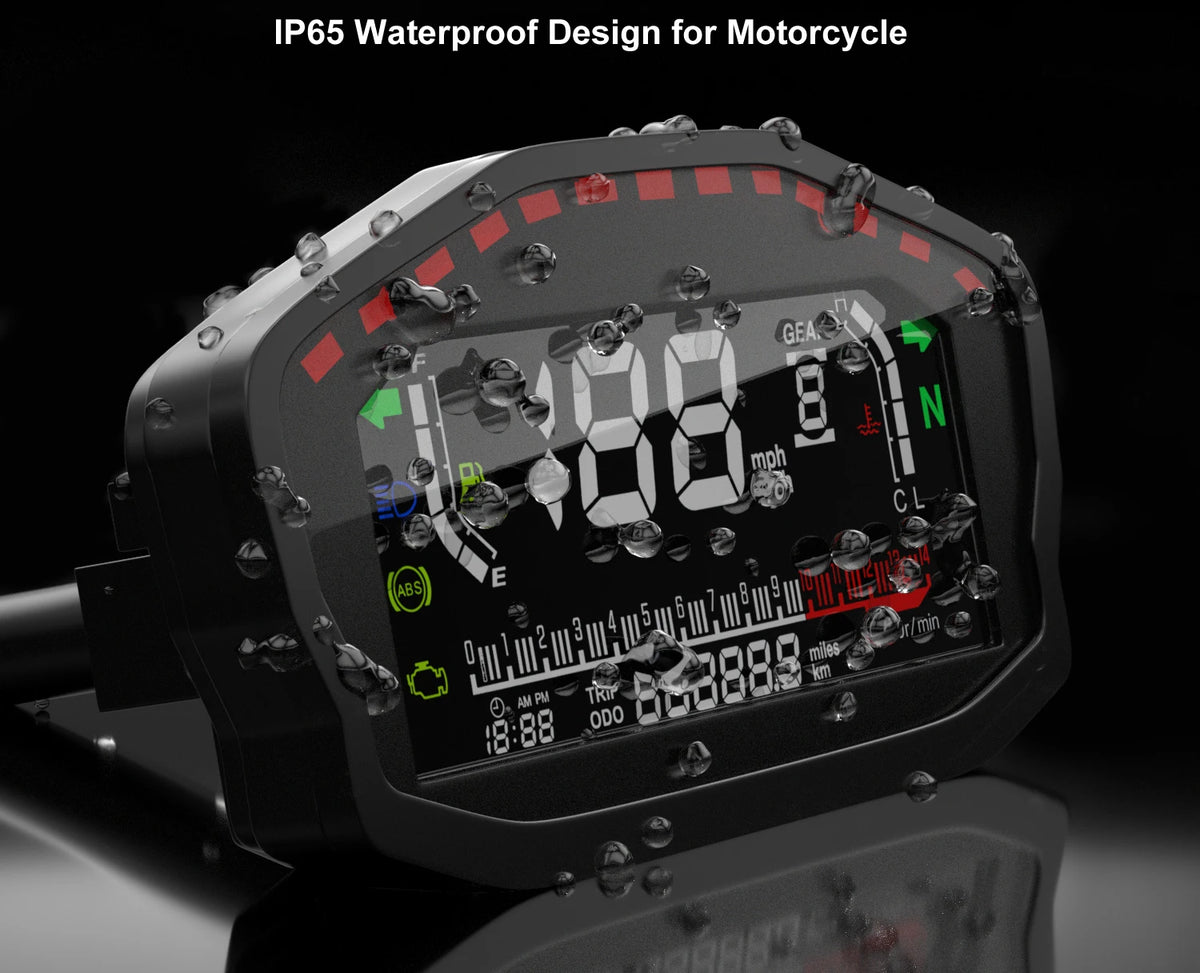

-IP65 Waterproof
-RPM Tachometer Range: 0~140000RPM
-Speed Range: 0~200km/h or MPH, unit switchable

Features：

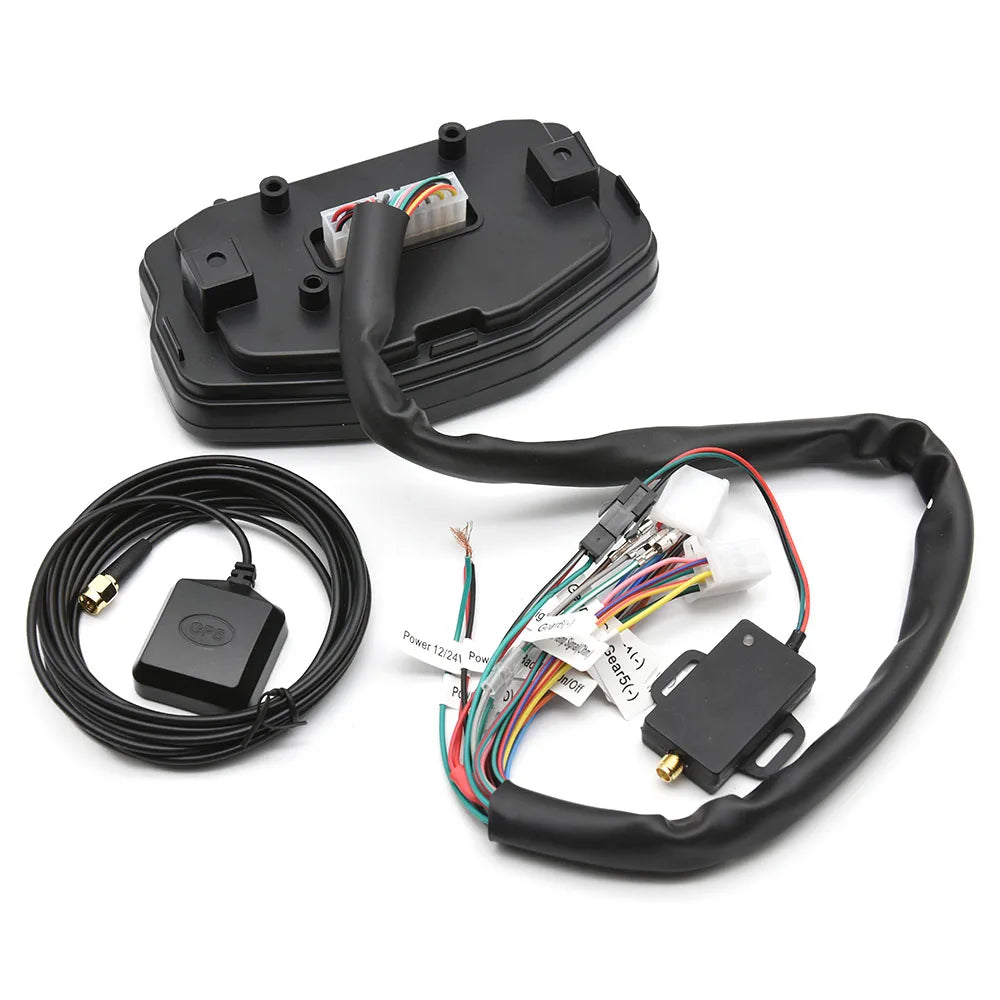

* Plug & Play installation with GPS Antenna, No need mechanical speed sensor.

* Range 0~199 km/h or mph (unit switchable)

* Fast start-up GPS Location Time:

* Hot Start: <1s

* Warm Start: <10s

* Cold Start: < 38s (first power on when installation)

* Support GPS, BeiDou & GLONASS Satellites

* Support Tunnel GPS lost Odometer Compensation

* No calibration required

* Three dimensional velocity calculations accurate to 0.2km/h

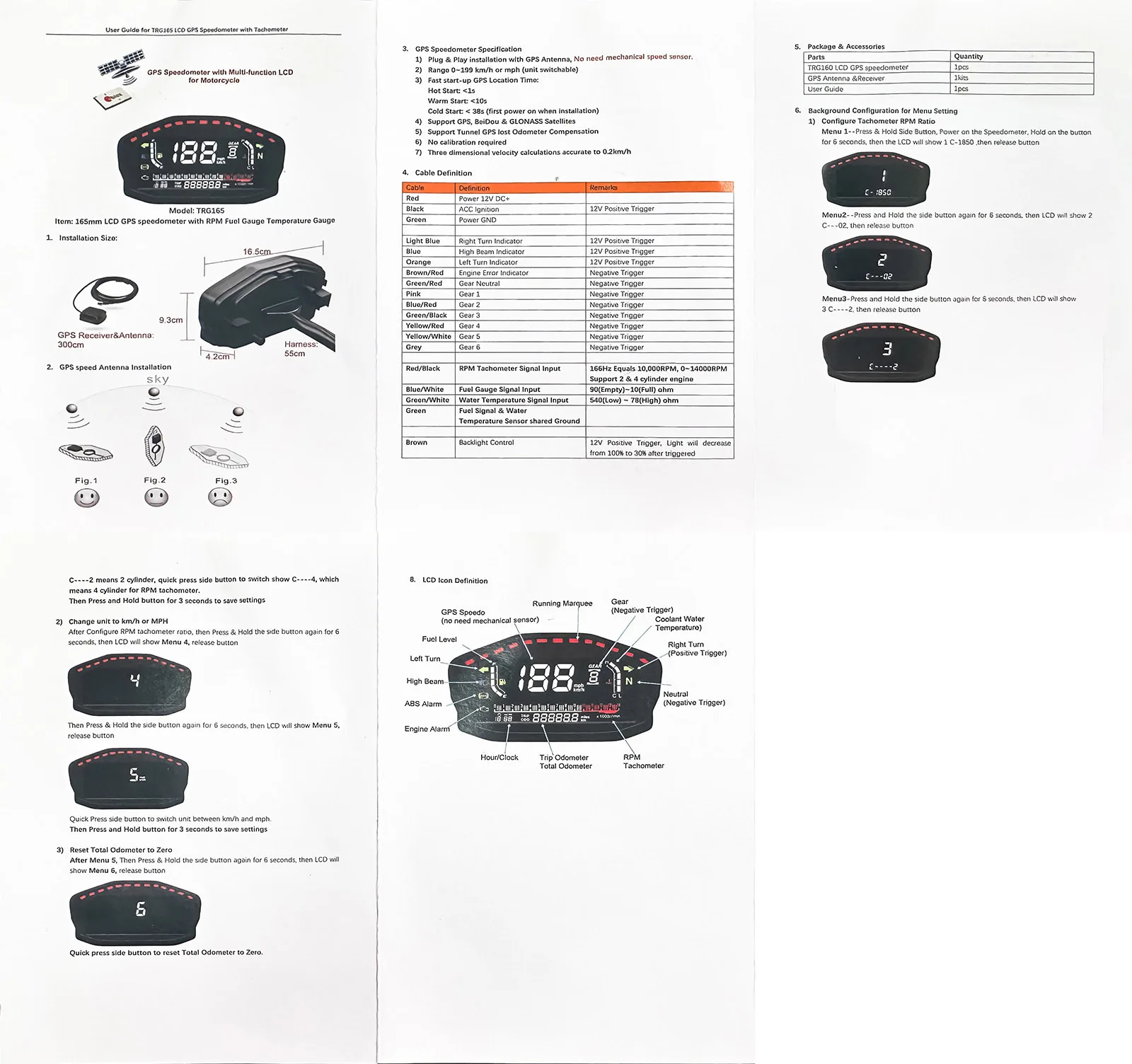

Setting:

1. Quick Setting for Trip Odometer, Time

When power on the Speedometer,

1) Quick Press side button, switch show TRIP, ODO

2) When show ODO, press and hold the side button for 8 seconds, switch unit between
km &mile

3) When show TRIP, press and hold the side button for 4 seconds, TRIP odometer will
reset to zero.

4) When show ODO, press and hold the side button for 4 seconds, you can enter TIME
setting menu:

Quick press to set value, long press 3 seconds to switch Hour & Minute

2. Configure Tachometer RPM Ratio

Menu 1--Press & Hold Side Button, Power on the Speedometer, Hold on the button

for 6 seconds, then the LCD will show 1 C-1850 ,then release button

Menu 2--Press and Hold the side button again for 6 seconds, then LCD will show "2 C---02", then release button

Menu 3--Press and Hold the side button again for 6 seconds, then LCD will show "3 C----2", then release button


"C----2" means 2 cylinder, quick press side button to switch show "C----4", which

means 4 cylinder for RPM tachometer.

Then Press and Hold button for 3 seconds to save settings



3. Change unit to km/h or MPH



After Configure RPM tachometer ratio, then Press & Hold the side button again for 6

seconds, then LCD will show Menu 4, release button.

Then Press & Hold the side button again for 6 seconds, then LCD will show Menu 5,

release button

Quick Press side button to switch unit between km/h and mph.

Then Press and Hold button for 3 seconds to save settings

Specification:

1X Motorcycle Instrument
