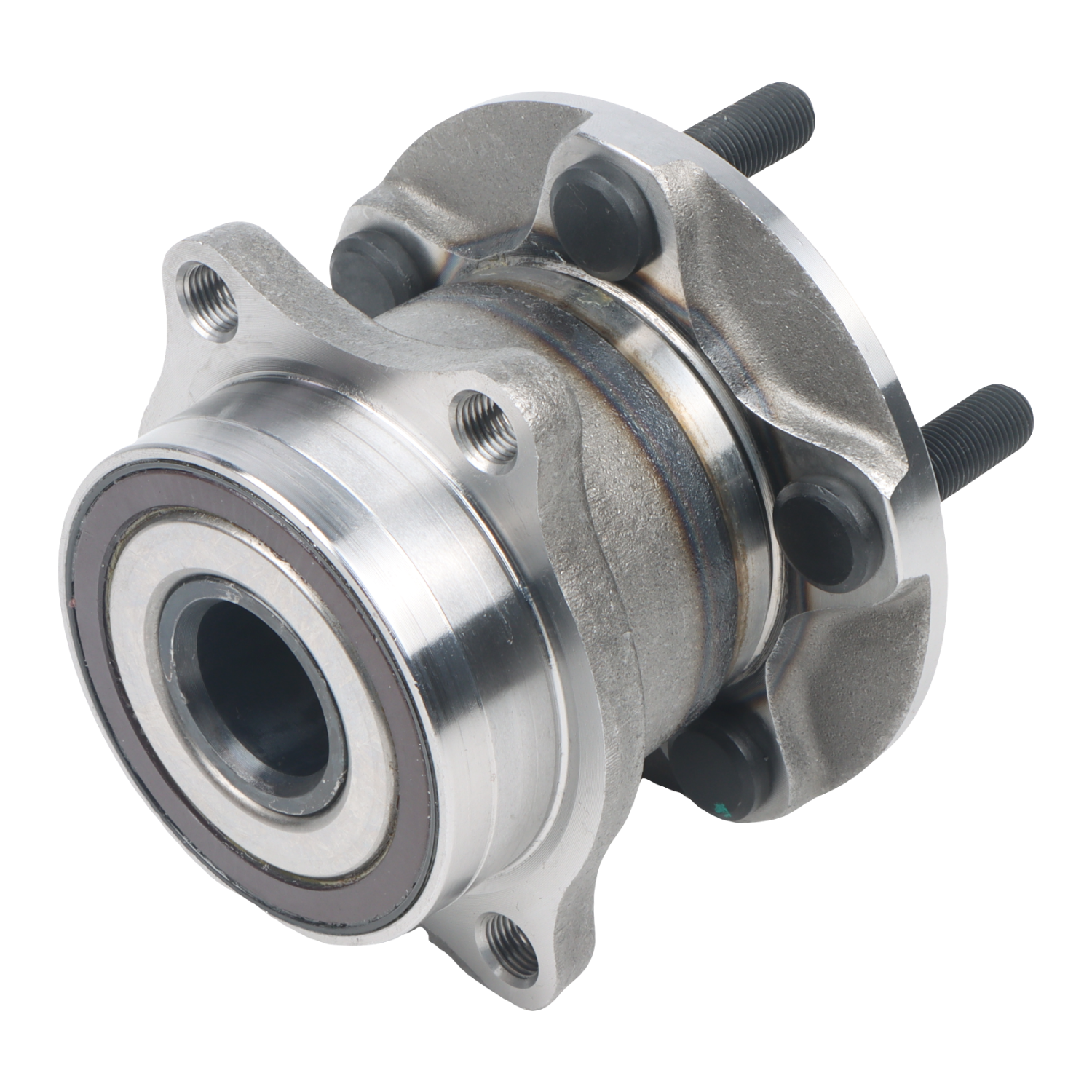

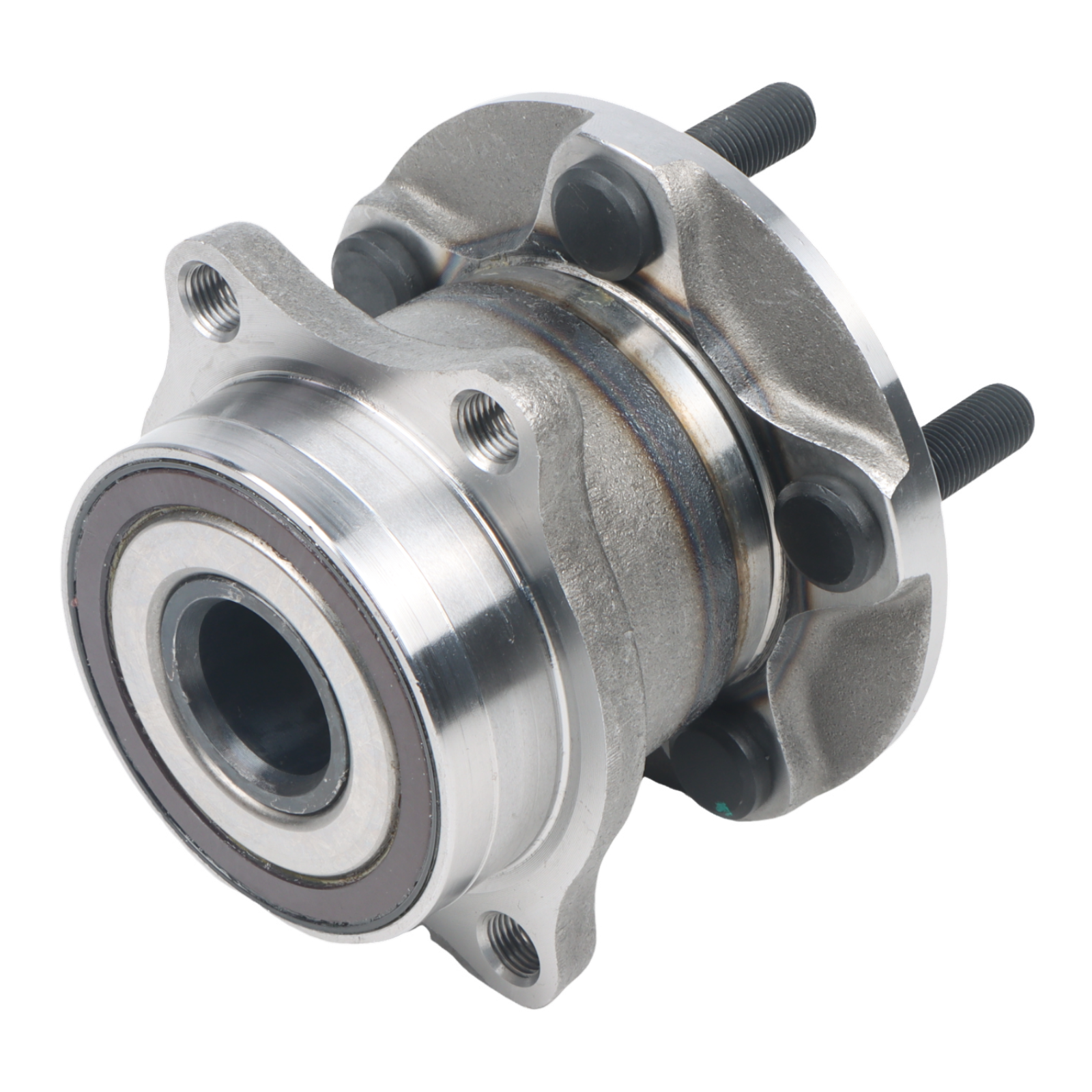

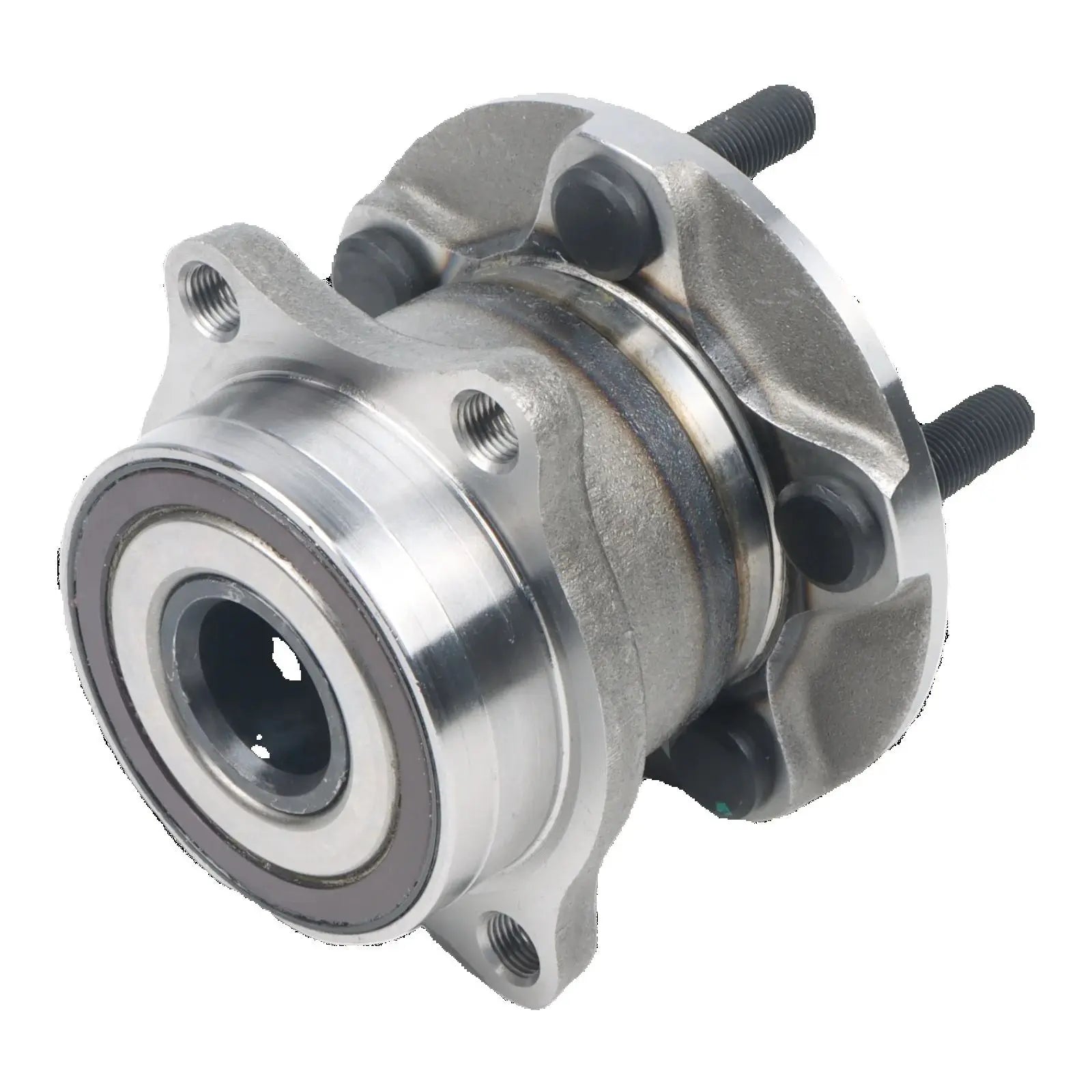

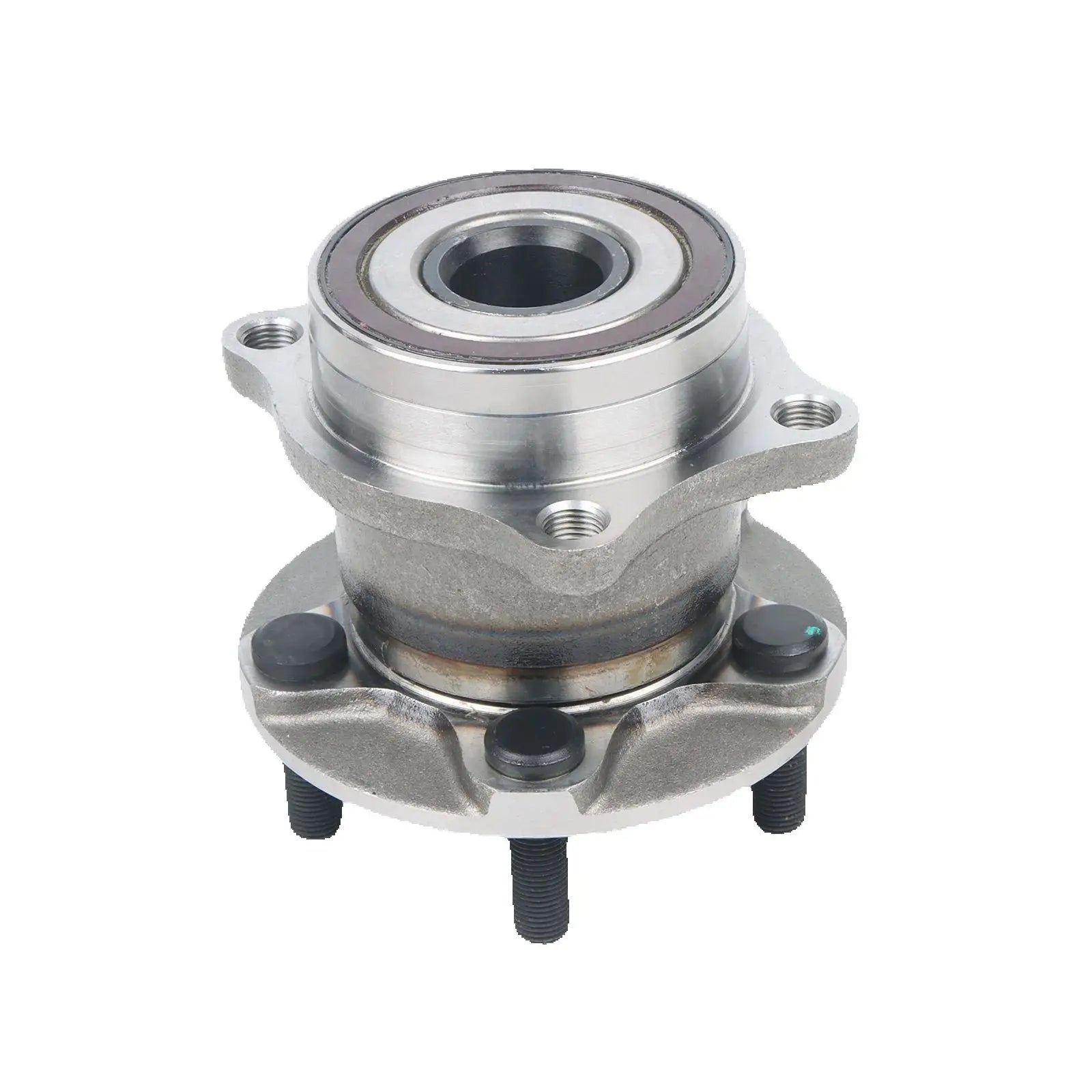

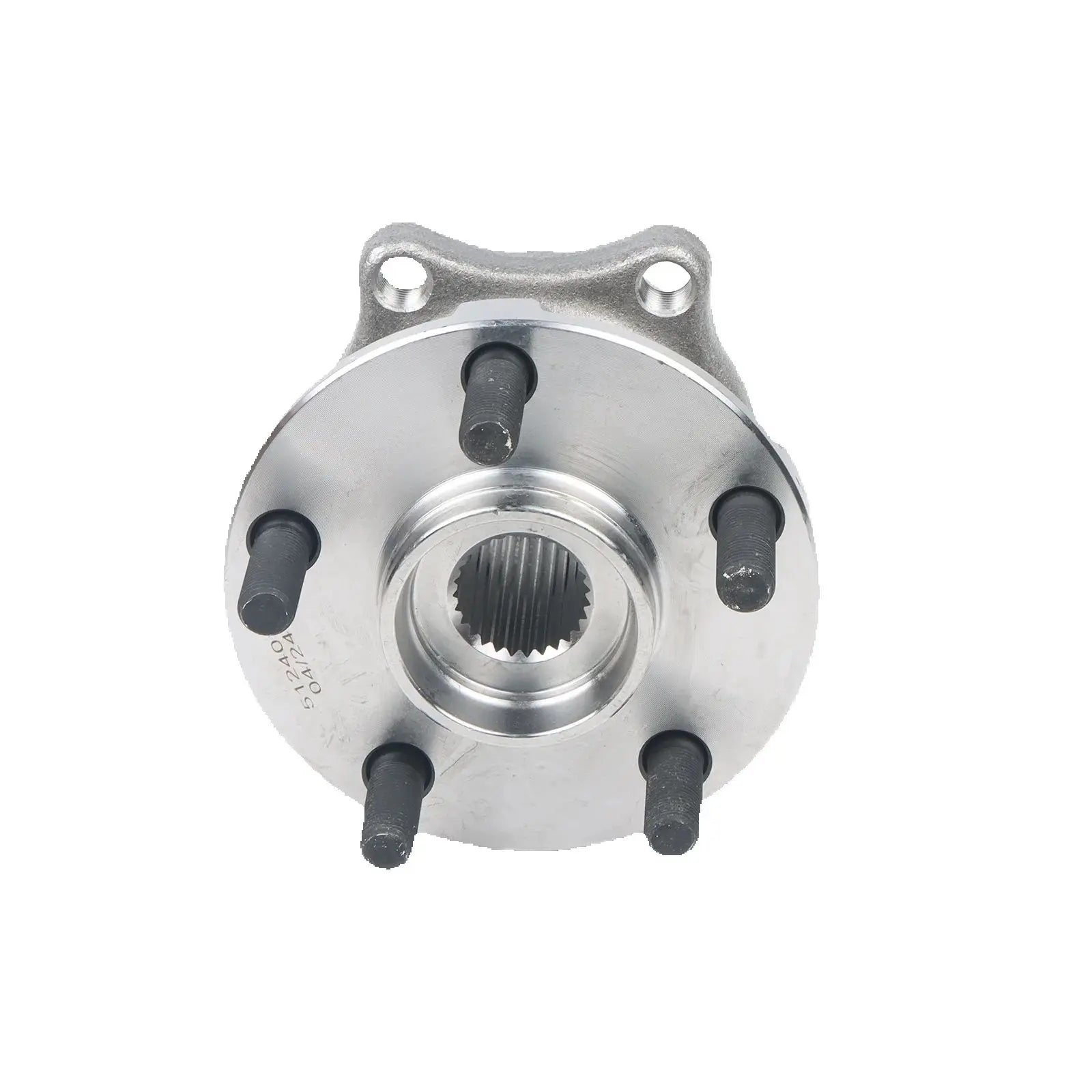

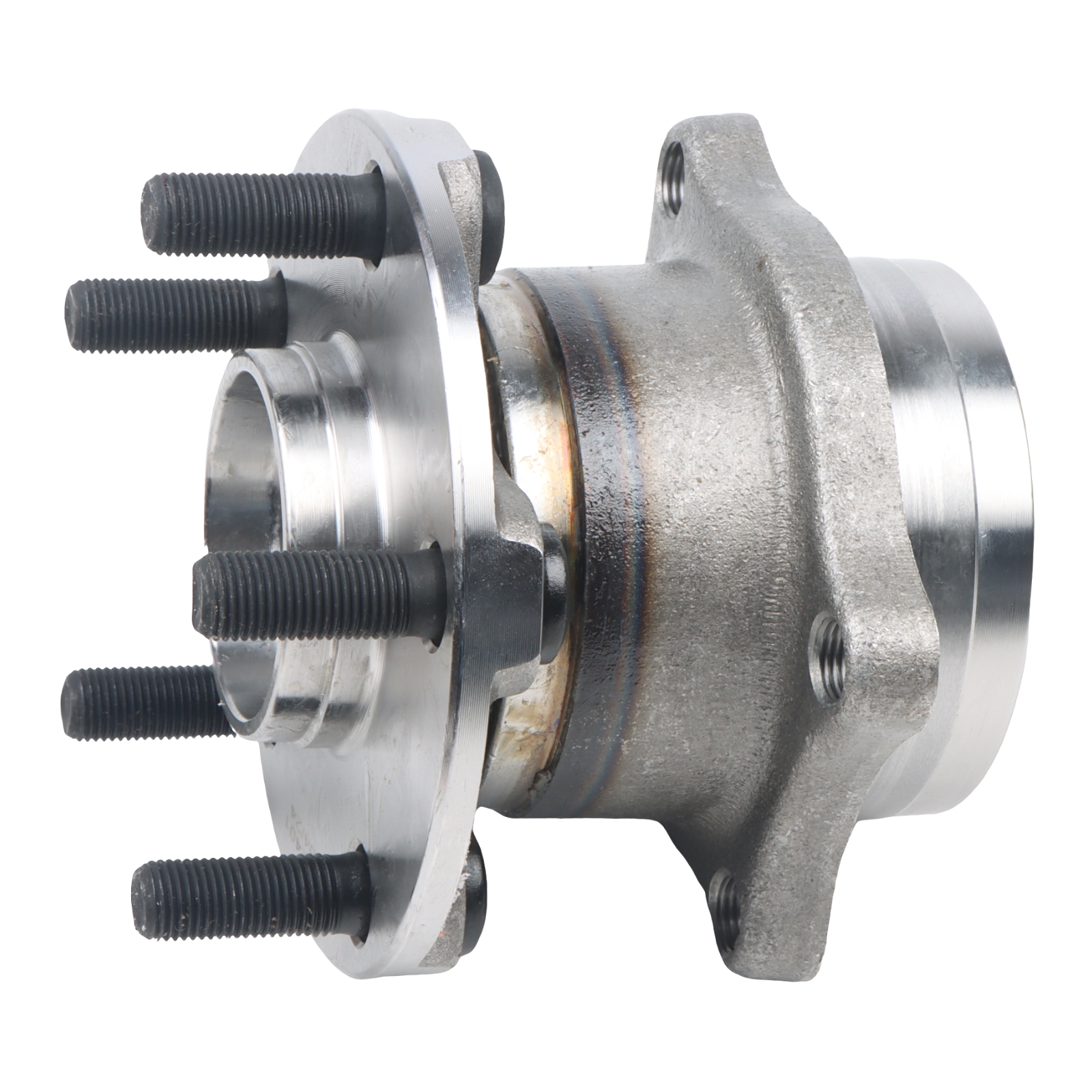

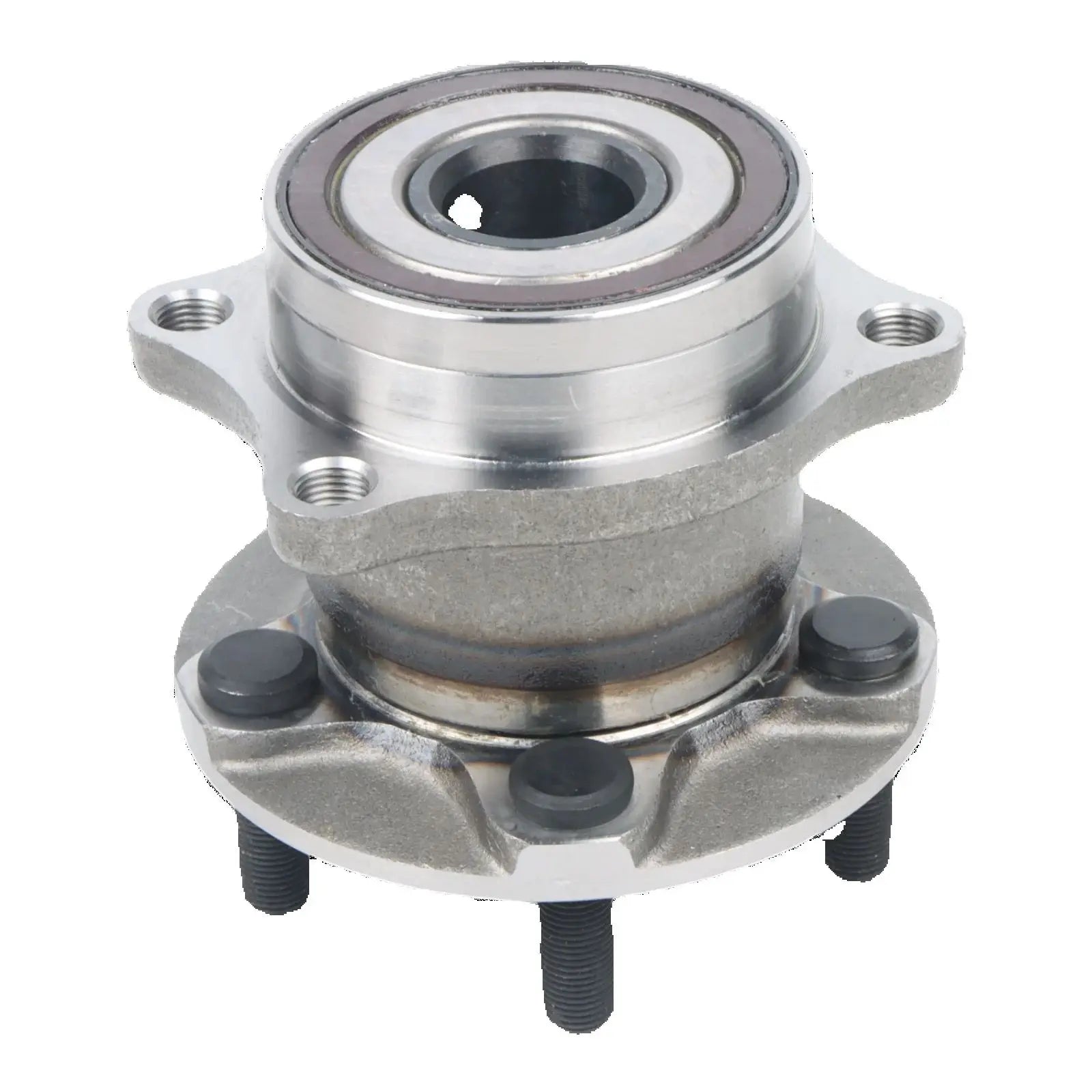

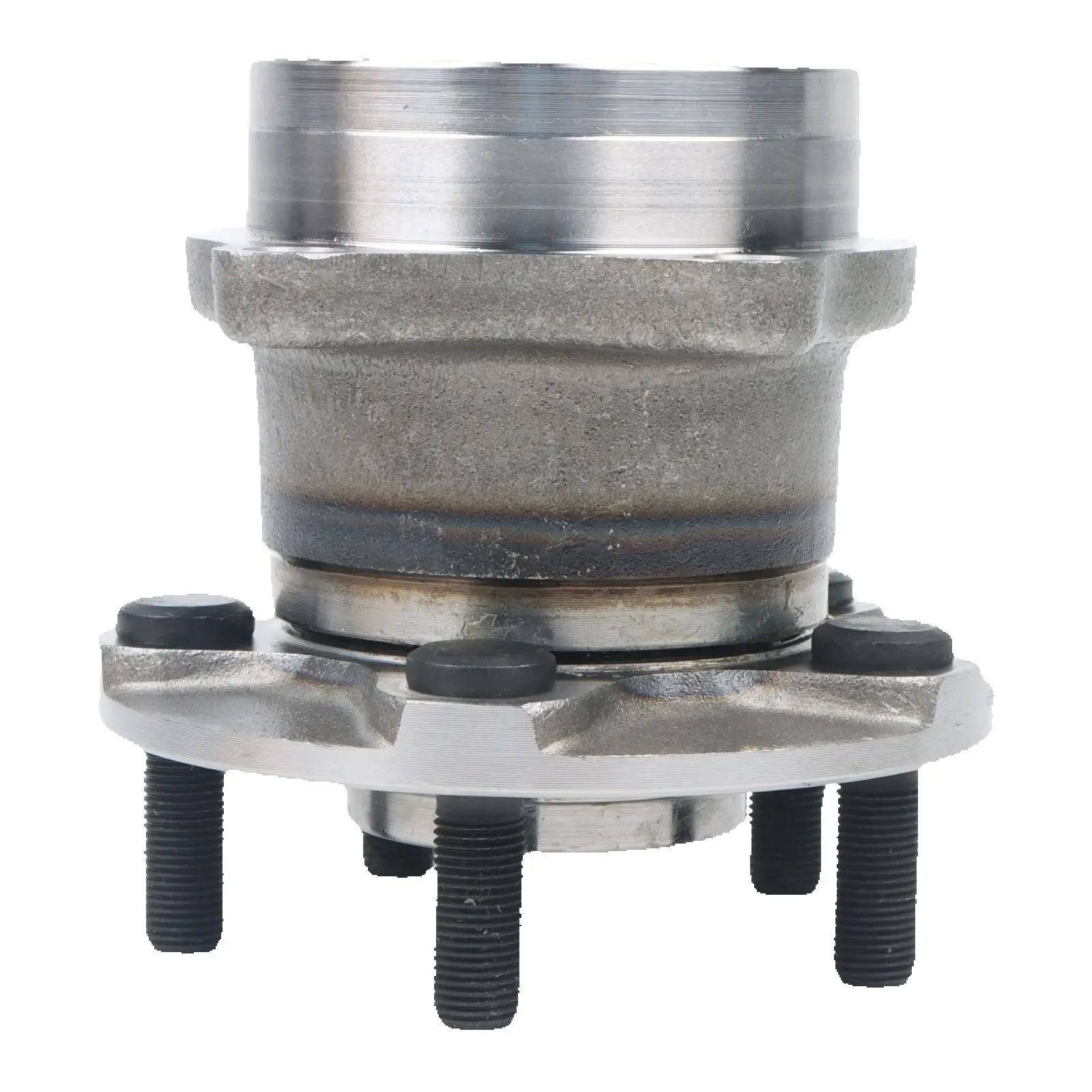

Wheel Bearing and Hub Assembly FOR Scion FR-S 2013-2016 FOR Subaru BRZ 2017-2019 512401 Ca

This component is a direct replacement for the specified wheel bearing and hub assembly, designed to meet or exceed OE performance specifications for rotational dynamics and load bearing capacity.

Package Includes:

• 1 x Wheel Bearing and Hub Assembly (Complete Unit)

OEM/Cross Reference Part Number:

• 512401

• WH59044

• BR930842

Compatible Vehicles

FOR Scion

• fit for FR-S 2013-2016 (Rear)

FOR Subaru

• fit for BRZ 2017-2019 (Rear)

Installation Information

1. Secure the vehicle on an appropriate lift or jack stands and ensure safety precautions are taken.

2. Remove the wheel retaining hardware and the wheel assembly.

3. Disconnect any associated sensors (e.g., ABS sensor wiring) connected to the hub assembly retaining bracket.

4. Unbolt the caliper assembly and secure it away from the rotor in a manner that prevents strain on the brake line.

5. Remove the bolts retaining the hub assembly to the knuckle or trailing arm.

6. Remove the existing hub assembly unit from the mounting location.

7. Align the replacement unit with the mounting points and secure it using the specified torque settings for all retaining bolts.

8. Reconnect all electrical connectors.

9. Reinstall the caliper assembly and wheel.

Important Notes

• - Verify the component's flange and bolt pattern configuration matches the existing assembly prior to installation.

• - Torque specifications for mounting bolts must be strictly adhered to according to the vehicle manufacturer's service manual.

• - ABS sensor rings (if integrated) must be inspected for alignment and clearance after installation.
