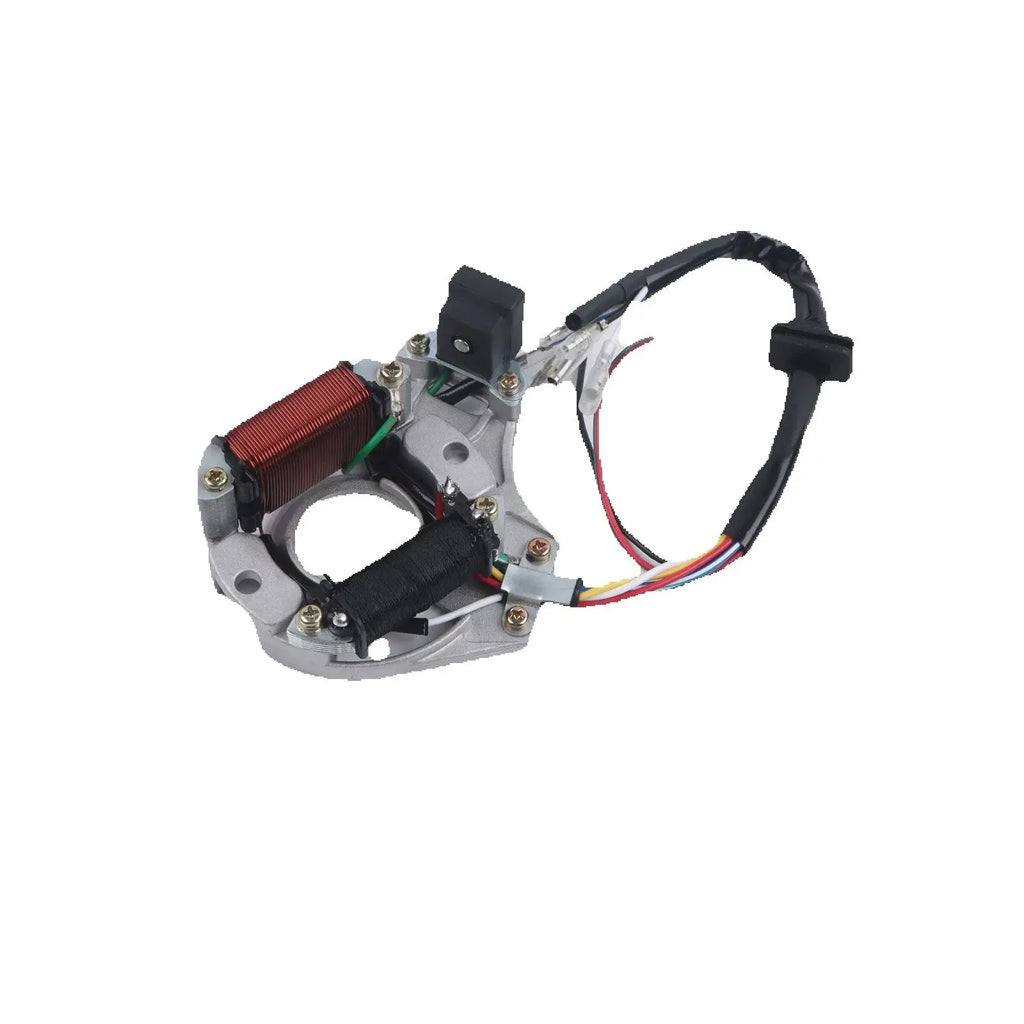

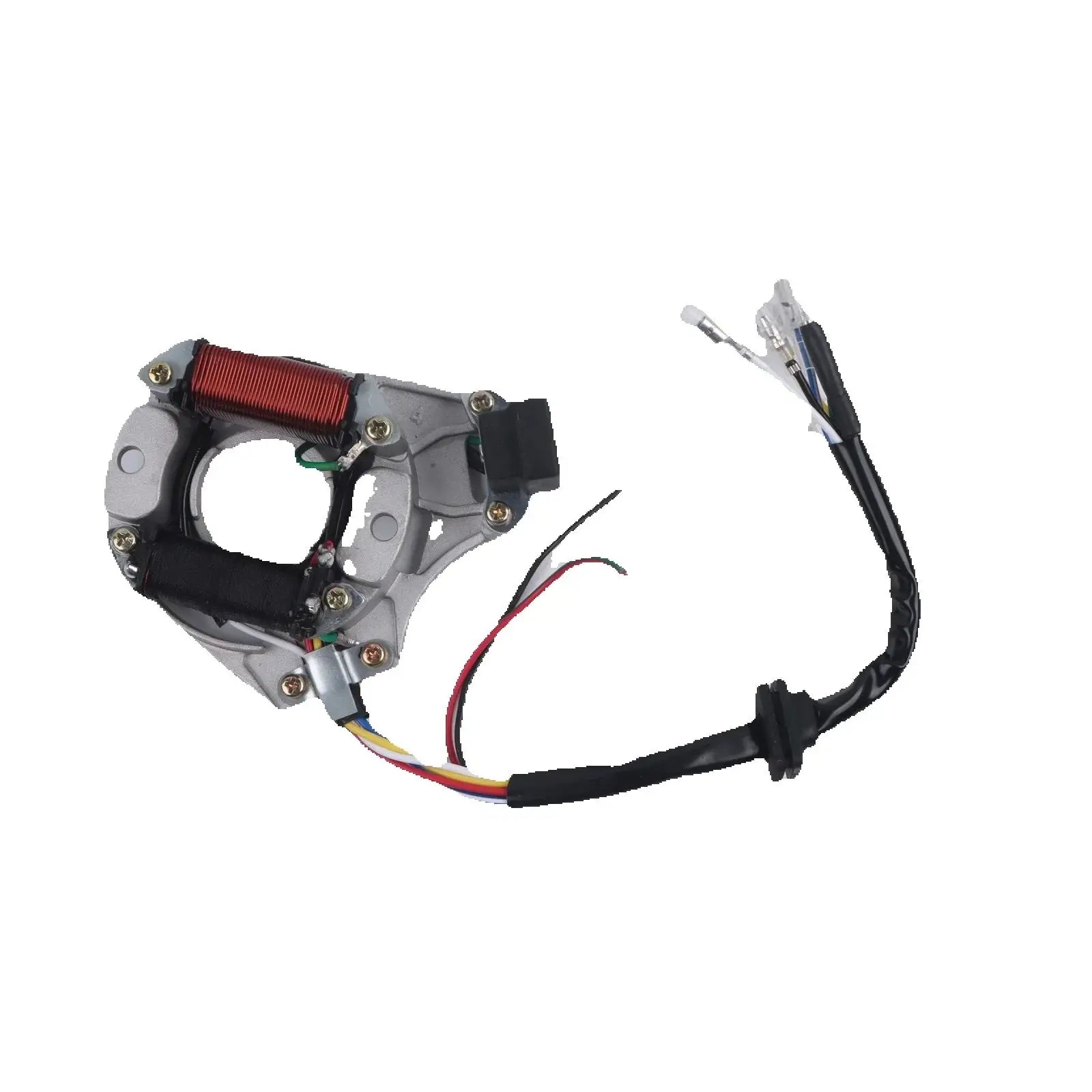

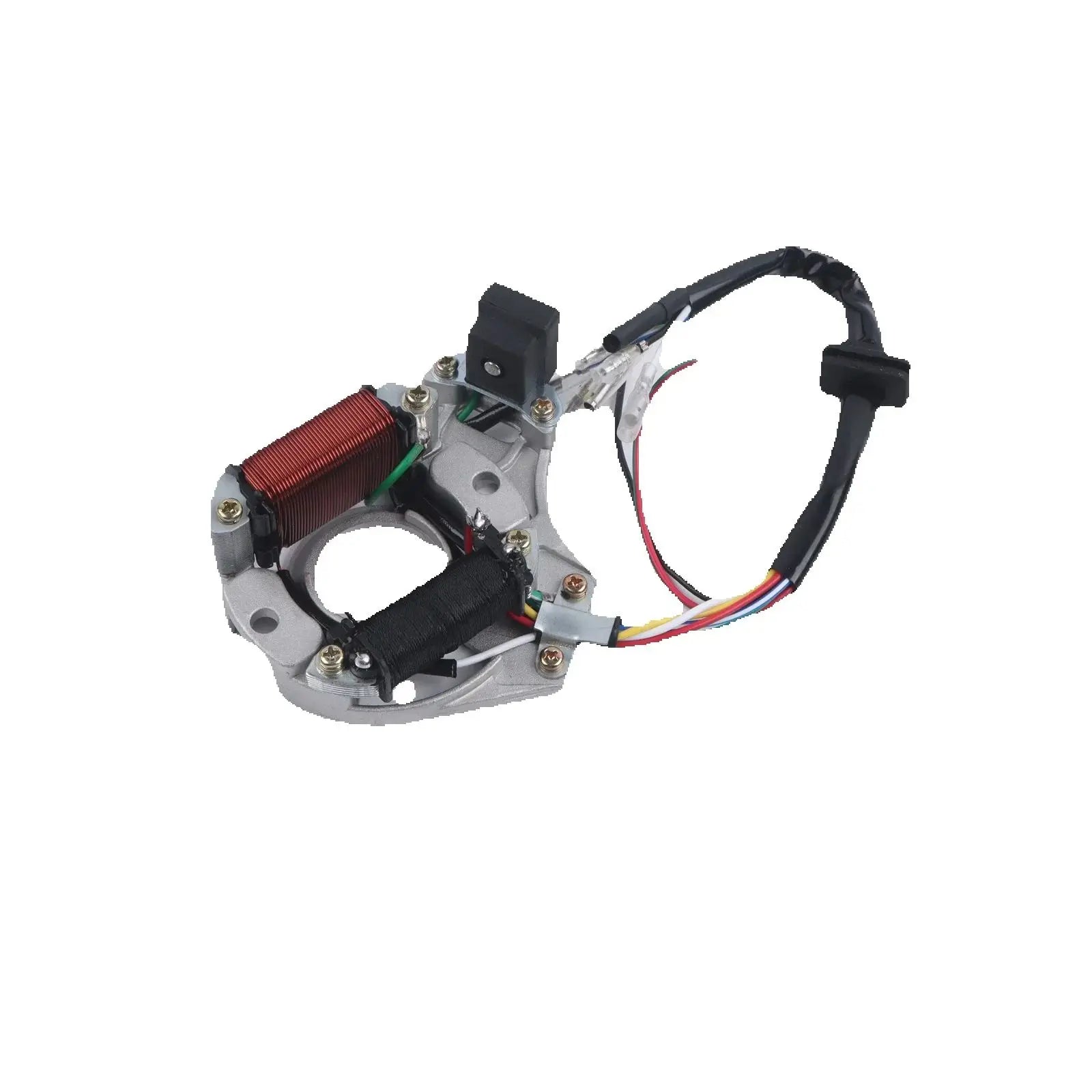

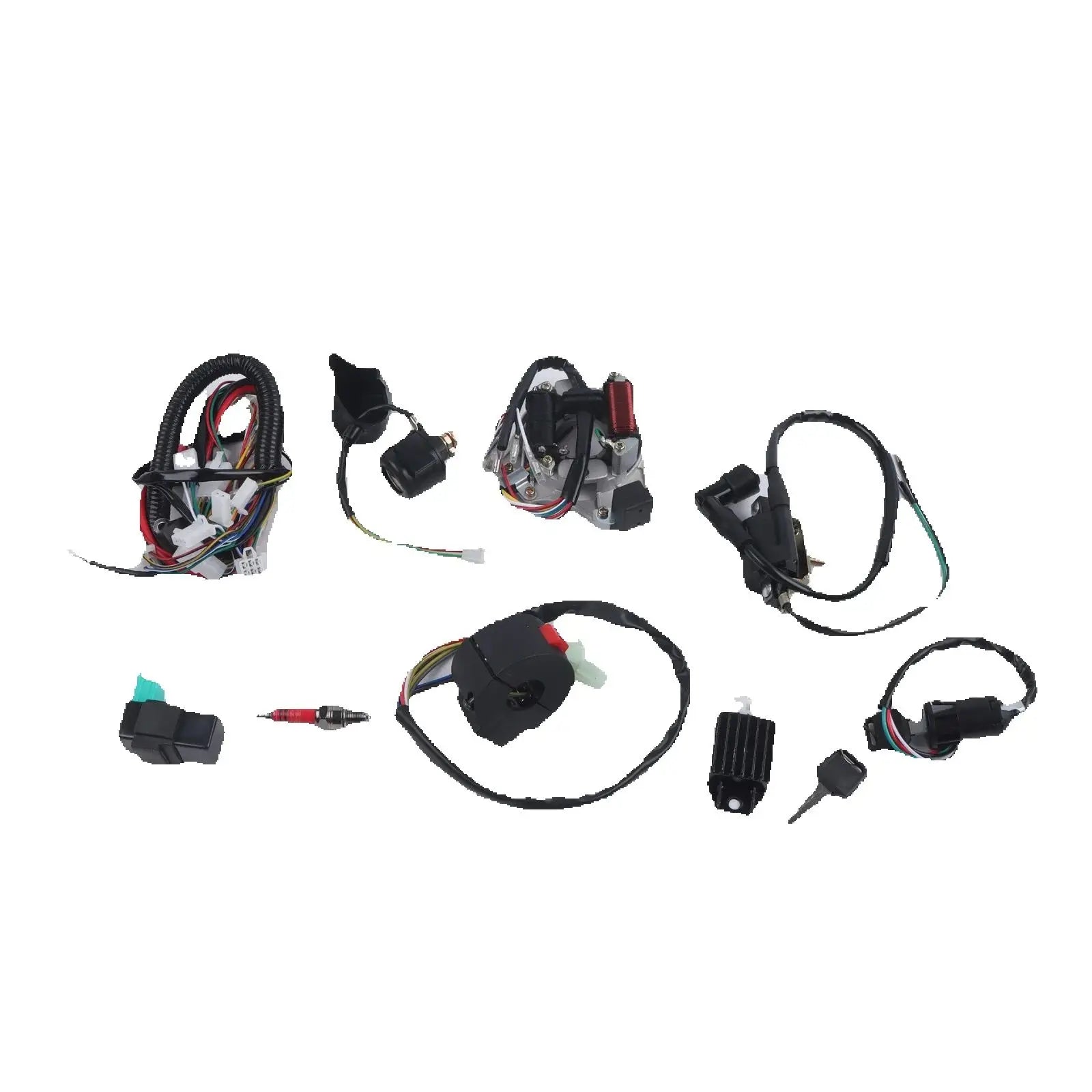

Wiring Harness CDI Stator Set FOR 50-125CC Quad ATV Engine Replacement

$288.52

Generic replacement for common 50cc to 125cc GY6/139FMB style engines with CDI ignition
This is an aftermarket replacement set and may cross-reference multiple original equipment part numbers.

fit for various 50cc ATVs (Quad Bikes)
fit for various 70cc ATVs (Quad Bikes)
fit for various 90cc ATVs (Quad Bikes)
fit for various 110cc ATVs (Quad Bikes)
fit for various 125cc ATVs (Quad Bikes)
Note: Compatibility is specific to engine type (e.g. 4-stroke air-cooled, specific CDI connector types) and model year; verification against existing component specifications is required.

Remove existing engine wiring harness assembly from the vehicle chassis and engine components.
Disconnect all electrical plugs and connectors associated with the CDI ignition system, stator, lighting, and accessory circuits.
Securely mount the new stator assembly to the engine crankcase cover according to manufacturer torque specifications.
Route the new wiring harness following established chassis pathways, ensuring clearance from hot engine parts and moving mechanical components.
Connect the stator output wires (AC power output) to the corresponding input terminals on the new regulator/rectifier assembly.

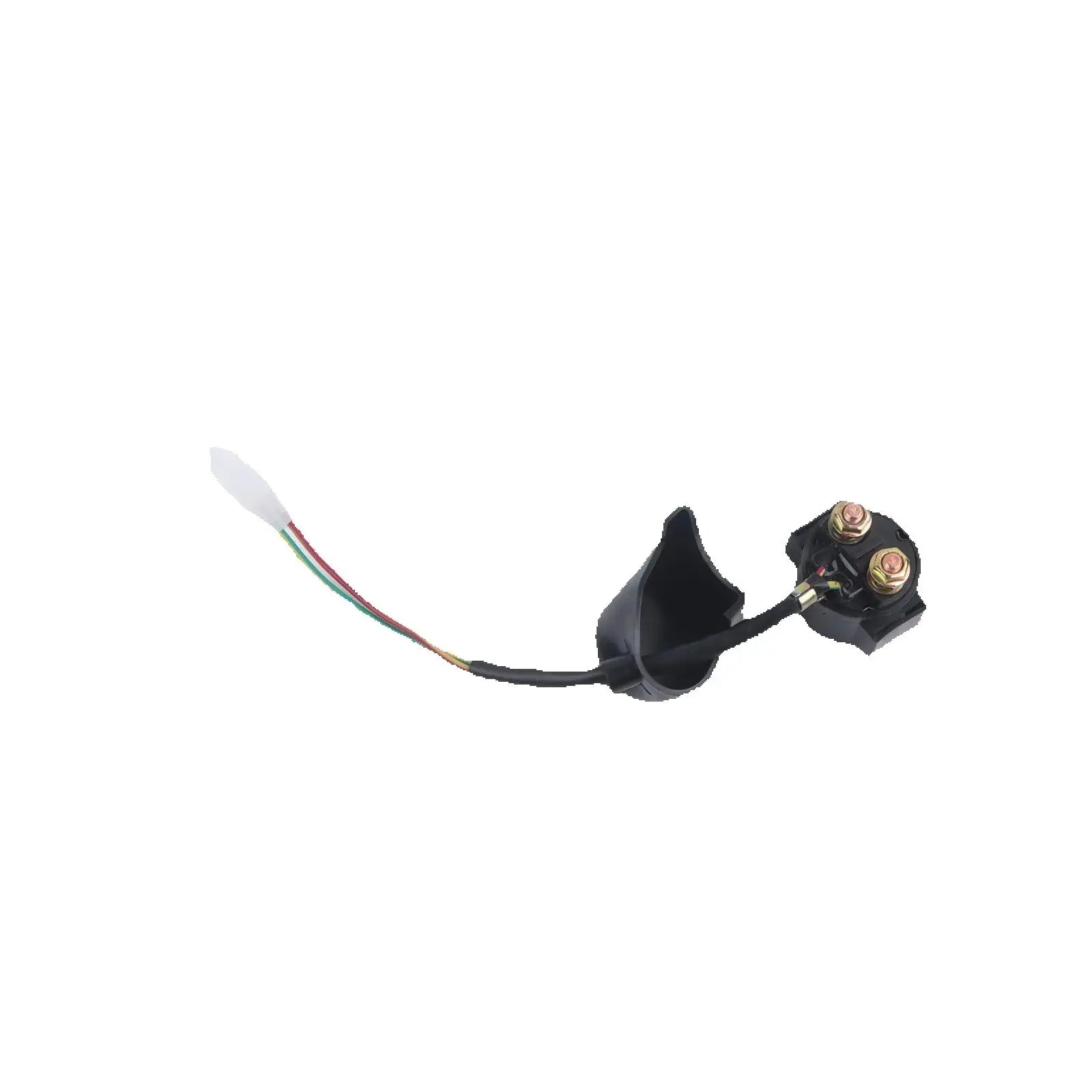

Connect the CDI unit, ignition coil, ignition switch, and starter relay plugs to their respective mating connections on the main harness.
Ensure all ground connections are securely fastened to the vehicle frame or designated ground points.

- This harness is designed for CDI ignition systems typically found on 50cc to 125cc horizontal single-cylinder engines. Verify connector types (e.g. 5-pin CDI vs. 6-pin CDI) match the existing components prior to purchase.
- Stator replacement requires removal of the flywheel, which necessitates specialized flywheel removal tools.
- Proper wiring diagram cross-referencing is mandatory for accurate system function verification post-installation.
